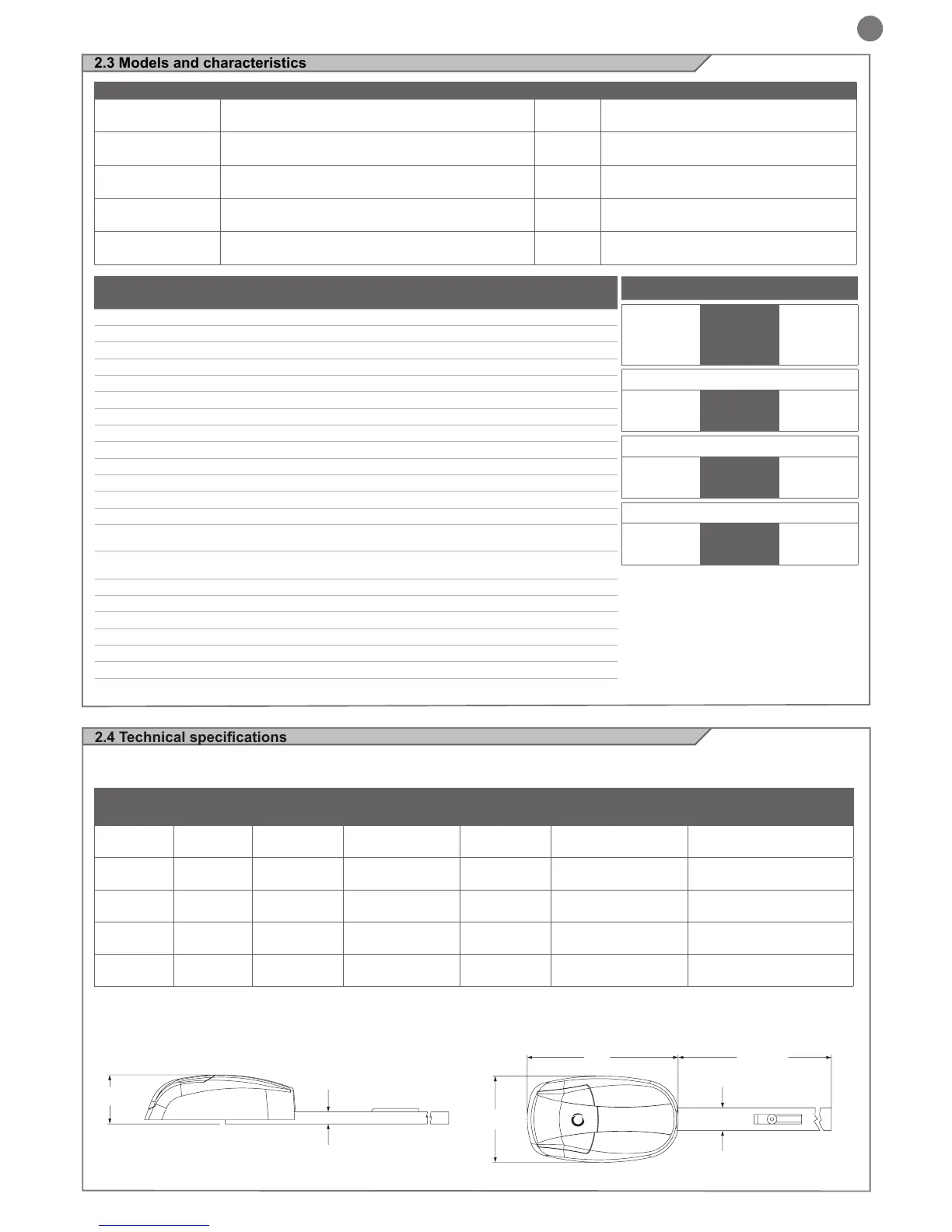

2.3 Models and characteristics
Data may change depending on the door friction and balance, and the tipe of guide used.
35
155
370
200
70
3080
2.4 Technical specications
Suggested use and model - Guide and available dimensions
TECHNICAL DATA VIP7U/VIP7
(VIP7UL/VIP7L)
VIP10U/VIP10
(VIP10UL/VIP10L)
VIP104
(VIP104L)
Speed 12 cm/s 12 cm/s 12 cm/s
Force 700 N 1000 N 1000 N
Working cycle 60 % 60 % 60 %
Stroke 2,8 m 2,8 m 3,5 m
Power 230 Vac (120 Vac) 230 Vac (120 Vac) 230 Vac (120 Vac)
Absorption at 230 Vac (120 Vac) 0,5 A (1 A) 0,7 A (1,4 A) 0,7 A (1,4 A)
Absorption of 24 Vdc motor 4,16 A 6,66 A 6,66 A
Consumption power 100 W 160 W 160 W
Integrated lights yes yes yes
Flashing light 15 W MAX 15 W MAX 15 W MAX
External courtesy light 10 W MAX 10 W MAX 10 W MAX
Accessory power supply output 250mA (24 Vdc) 250mA (24 Vdc) 250mA (24 Vdc)
Power line 1 fuse 2.5AT slow-acting 2.5AT slow-acting 2.5AT slow-acting
Max. number of transmitters
storage FIX CODE
20 20 20
Max. number of transmitters
storage ROLLING CODE
20 20 20
Protection degree IP 43 IP 43 IP 43
Dimensions (L - P - H) 200-370-155 mm 200-370-155 mm 200-370-155 mm
Weight 13 Kg 13,5 Kg 16 Kg
Working temperature -20° + 55° °C 20° + 55° °C -20° + 55° °C
Max door size 10
m
2
13
m
2
16
m
2
Max door weight 90
Kg 130
Kg 130 Kg
LIMITS OF USAGE
sectional up and over non projecting
up and over
VIP7U/VIP7/(VIP7UL/VIP7L)
H max=2,7m
m² max=10m²
H max=3m
m² max=9m²
H max=2,5m
m² max=9m²
VIP10U/VIP10/(VIP10UL/VIP10L)
H max=2,7m
m² max=13m²
H max=3m
m² max=14m²
H max=2,5m
m² max=14m²
Model Voltage (V)
Door
surface (m
2
)
Total length
Travel of the
guide
Height of the door
when opening
Ambient temperature
difference (°C)
VIP7U/
(VIP7UL)
190-240
(110 - 130)
<=10
3320 mm (1x3,3m) 2700 mm <2700 mm
-20+55
VIP7/
(VIP7L)
190-240
(110 - 130)
<=10
3320 mm (3x1,1m) 2700 mm <2700 mm
-20+55
VIP10U/
(VIP10UL)
190-240
(110 - 130)
<=13
3320 mm (1x3,3m) 2700 mm <2700 mm
-20+55
VIP10/
VIP10L)
190-240
(110 - 130)
<=13
3320 mm (3x1,1m) 2700 mm <2700 mm
-20+55
VIP104/
(VIP104L)
190-240
(110 - 130)
<=16
4000 mm (1x4m) 3400 mm <3400 mm
-20+55
CODE DESCRIPTION FORCE GUIDE
VIP7U/(VIP7UL)
for sectional doors up to 10 mq with motor 24 Vdc and
central with integrated receiver
700N
pre-assembled chain rail 3320 mm in single
piece
VIP7/(VIP7L)
for sectional doors up to 10 mq with motor 24 Vdc and
central with integrated receiver
700N
chain rail 3320 mm into three pieces with fast
joints
VIP10U/(VIP10UL)
for sectional doors up to 13 mq with motor 24 Vdc and
central with integrated receiver
1000N
pre-assembled chain rail 3320 mm in single
piece
VIP10/(VIP10L)
for sectional doors up to 13 mq with motor 24 Vdc and
central with integrated receiver
1000N
chain rail 3320 mm into three pieces with fast
joints
VIP104/(VIP104L)
for sectional doors up to 16 mq with motor 24 Vdc and
central with integrated receiver
1000N
pre-assembled chain rail 4000 mm in single
piece
VIP104 (VIP104L)
H max=3,4m
m² max=16m²
H max=3,4m
m² max=14m²
H max=3,2m
m² max=14m²
