Keysight Technologies Z Series User Manual

14 Infiniium Z-Series Oscilloscopes User’s Guide
1 Setting Up the Oscilloscope
Positioning for Proper Airflow
1 Position the oscilloscope where it will have sufficient clearance for airflow
around the back and sides. If you plan to connect multiple Infiniium
oscilloscopes together, refer to the Keysight MultiScope Hardware
Configuration Guide for airflow requirements.

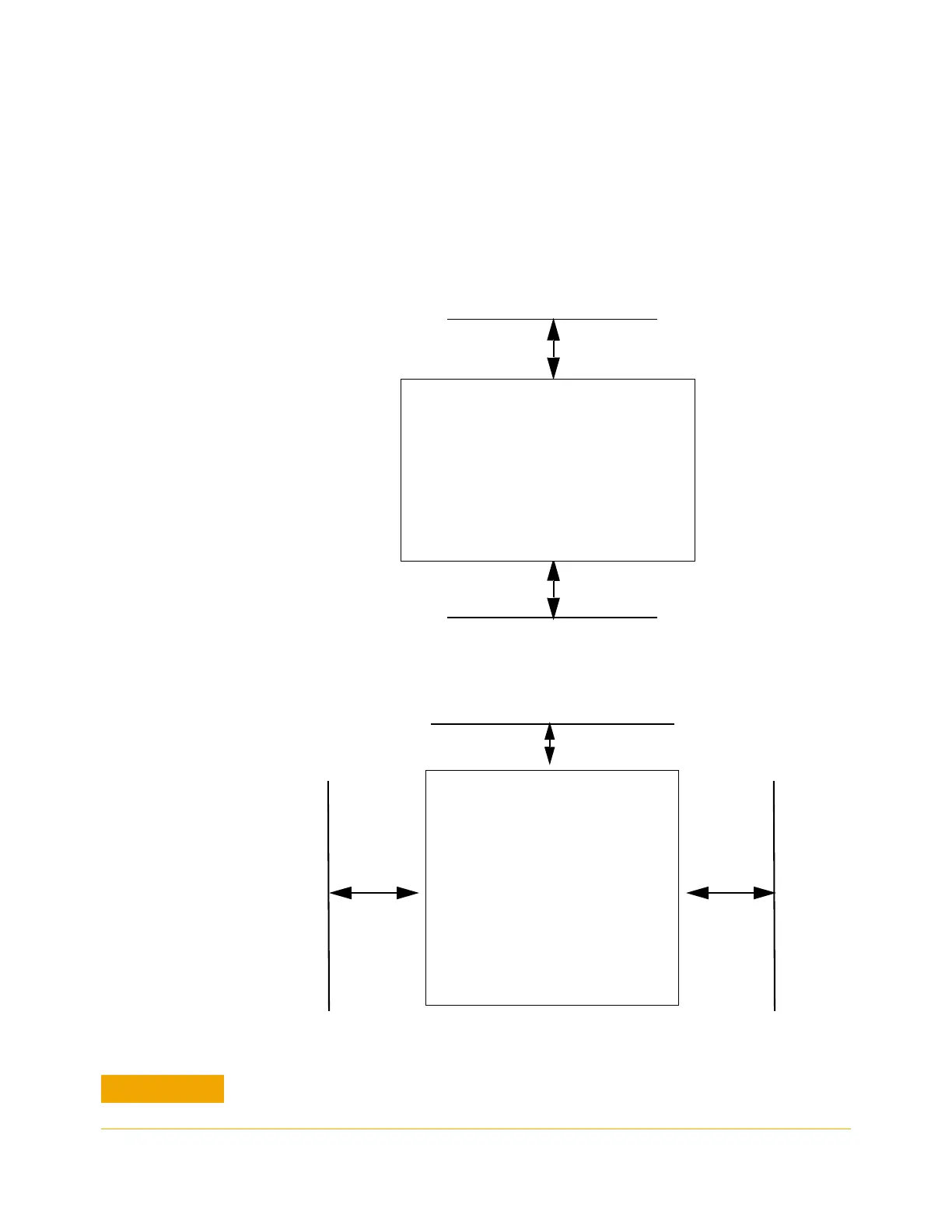

Figure 1 Positioning the Z-Series Oscilloscope with Sufficient Clearance
Front panel of
oscilloscope
Minimum 100 mm Minimum 100 mm
Minimum 39 mm
Top View
Rear Panel
Top: Minimum 0 mm
Bottom: Minimum 0 mm
CAUTION
Do not place the oscilloscope side-by-side with other instruments blowing warm air.
