42 Infiniium Z-Series Oscilloscopes User’s Guide
2 Using the Oscilloscope
Adjusting the Vertical Settings
Use the vertical controls to set the vertical scaling (volts per division) and vertical
offset. You can also turn the display on or off for a particular channel.

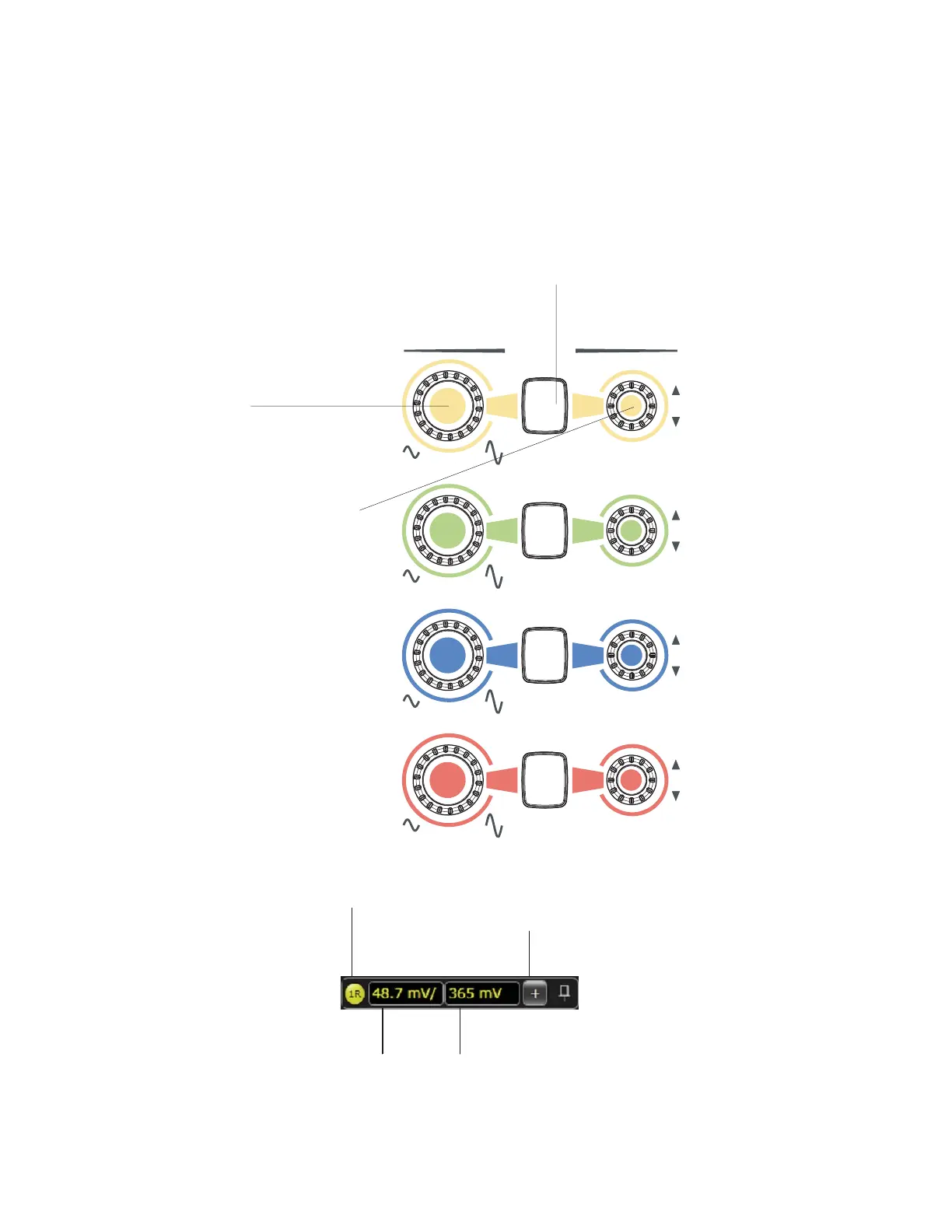

Figure 21 Front Panel Channel Keys and Vertical Scale and Offset Knobs
Figure 22 User Interface Vertical Controls
Vertical
for Vernier
Push
Push
to Zero
Push
for Vernier
to Zero
Push
1
2
3
4
Use this key to turn
analog channel 1
on or off
Vertical scale knob—
use this to adjust
vertical scaling (in
volts per division)
Vertical offset knob—
use this to adjust
vertical offset (position)
Open the Channel Setup
dialog box
Set vertical scale Set vertical offset
View more signals
