32 Infiniium Z-Series Oscilloscopes User’s Guide
2 Using the Oscilloscope
User Interface Overview
With the user interface for the Infiniium oscilloscope, you can access all the
configuration and measurement features of the oscilloscope through an
easy-to-use system of windows, menus, toolbars, dialog boxes, icons, wizards,
and buttons.
The user interface is arranged so the most common functions affecting the
waveform display are located around the edge of the waveform display area.
Context-sensitive menus are available when you right-click something in the
waveform display area, such as the graticule, a signal, a bookmark, or a
measurement. You can mouse over or touch other areas, such as the drag & drop
measurements area and horizontal and acquisition control regions, to find more
information about those areas or to enter data.
The following figures call out the areas and controls of the user interface.

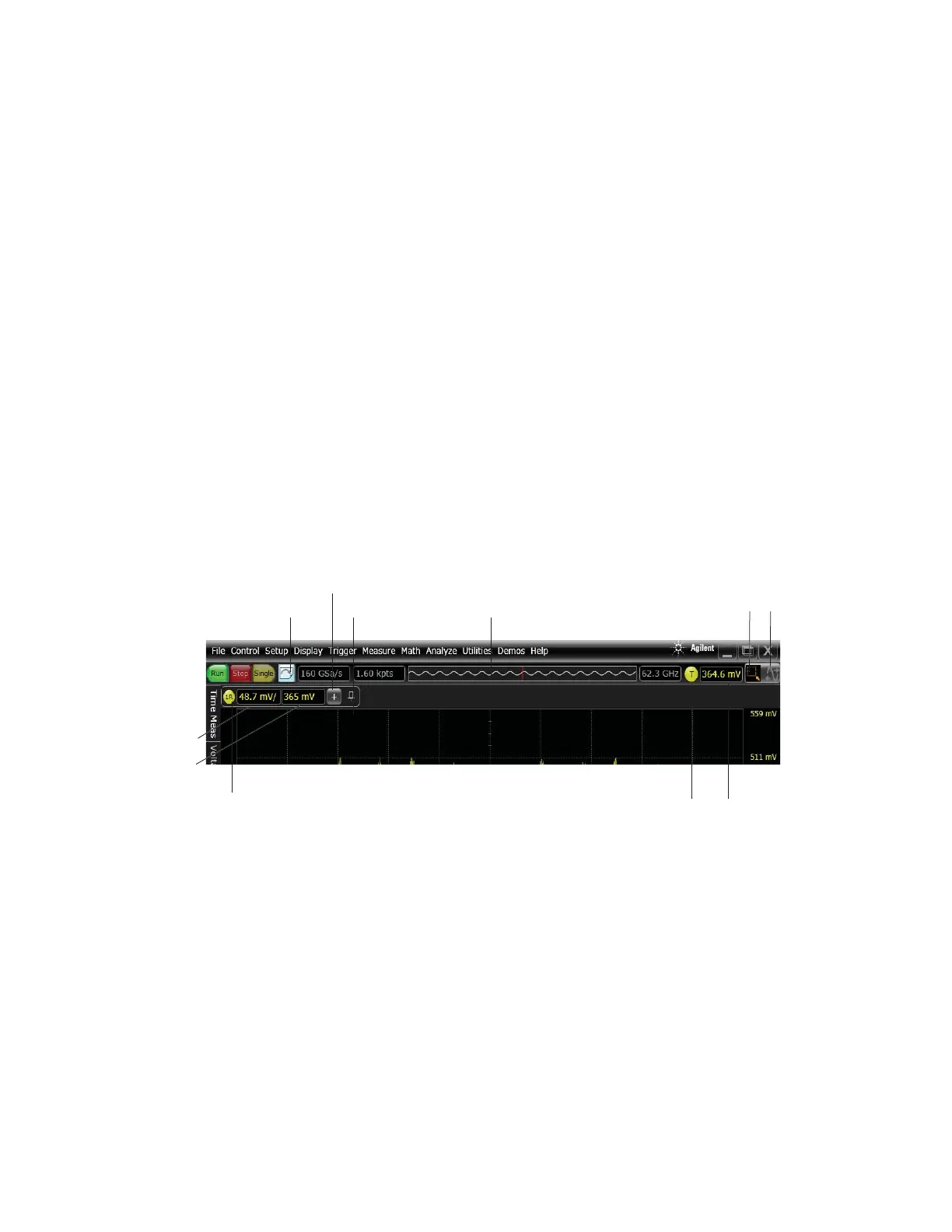

Figure 11 Infiniium Oscilloscope Top of Display
The selected graticule mode in the upper right corner determines whether you draw a selection box or
drag a waveform when you touch the screen.
Memory bar
Graticule selection:
Access the
Channel Setup dialog box
Set
trigger level
Set vertical scale
Set vertical offset
Access the
Trigger dialog box
Clear display
Turn signals on/off
Pin/unpin controls
Draw rectangle
mode
Drag waveform
mode
