Connecting a Mouse, Keyboard, and LAN Cable
A mouse and keyboard can be plugged into the USB host ports. Four host ports
are on the rear panel, with two more on the front panel.
Connect your LAN cable to the RJ-45 connector on the back panel of the
oscilloscope.
After you have connected to the LAN card, you must set up the network. Exit the oscilloscope
application before you start setting up your network.
If you do not know how to set up a network in the Windows 7 operating system, see your
network administrator or use the Windows 7 operating system’s online help.

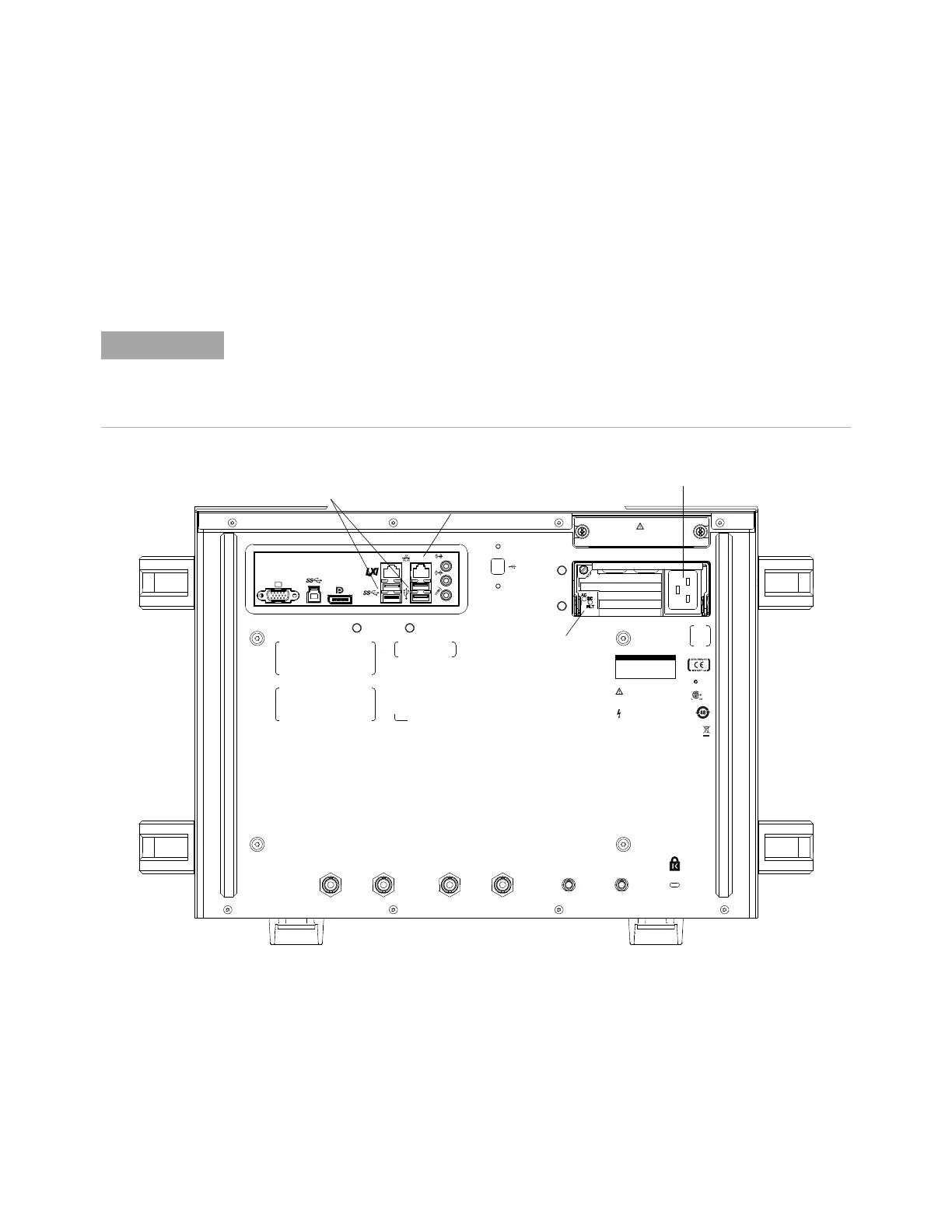

Figure 2 Back Panel
CAUTION: Power down
instrument before
insertion or removal
of hard drive.
Removable
Hard Drive
N10149
~ Line
1350W Max
100 - 240V
50/60 Hz
10 MHz inTrig Out 10 MHz out 100 MHz in 100 MHz out
CAUTION: Use only with
power cable specified by
owner’s guide.
WARNING: Maintain
ground to avoid electric
shock.
Aux Trig
169323
Device
NOTICE
Well-regulated power
required for 100-120V
operation.
Mouse and keyboard connectors
(USB host ports)
LAN connector
AC power cord
plugs into here
Power Supply
LEDs
