Setting Up the Oscilloscope 1
Infiniium Z-Series Oscilloscopes User’s Guide 19
Connecting Threaded RF Cables
You can connect threaded RF cables to the Infiniium Z-Series oscilloscope inputs.
For input channels 1 through 4, you can connect 3.5 mm threaded RF cables using
the automatic torque “clutch” mechanism to ensure a consistent 8 in.-lbs.
connection.
The Aux Out and Cal Out connectors also work with 3.5 mm threaded RF cables.
For RealEdge input channels 1R and 3R (on the 50 GHz and 63 GHz bandwidth
models), you can connect 1.85 mm threaded RF cables using a torque wrench to
apply the necessary 8 in.-lbs. of torque.
Tilting the Oscilloscope for Easier Viewing
Tabs under the front feet of the oscilloscope can be flipped out to tilt the
oscilloscope.

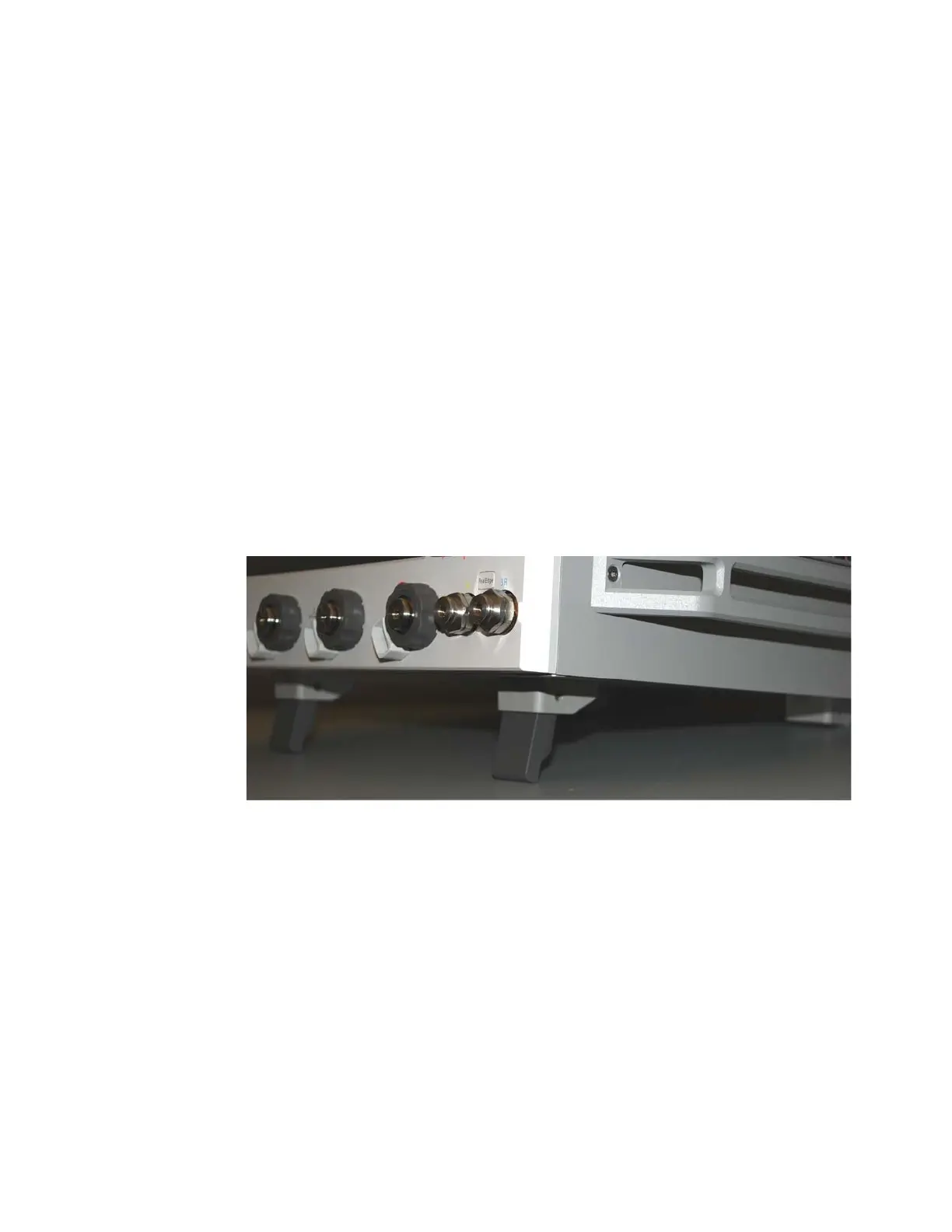

Figure 4 Flip-Out Tabs Under Front Feet
