18 Infiniium Z-Series Oscilloscopes User’s Guide
1 Setting Up the Oscilloscope
The AutoProbe II interface works with the InfiniiMax III probing system. There are
four different InfiniiMax III probe amplifiers ranging from 16 to 30 GHz. For more
information, see Keysight InfiniiMax III Probing System Data Sheet.
Before using the InfiniiMax III probes, review the InfiniiMax III Probe Handling
Guide included with the probes. These probes are ESD sensitive devices and there
is a proper order for connecting probe amplifiers to the oscilloscope, probe heads
to the device under test (DUT), and probe heads to the amplifier. You can also find
the InfiniiMax III Probe Handling Guide on the Keysight web site
(www.keysight.com) or with other Keysight oscilloscope probes documentation in
the Probe Resource Center (www.keysight.com/find/prc).
The N5442A Precision BNC 50
Ω adapter lets you use an InfiniiMax I or II active
probe with the Z-Series oscilloscopes.

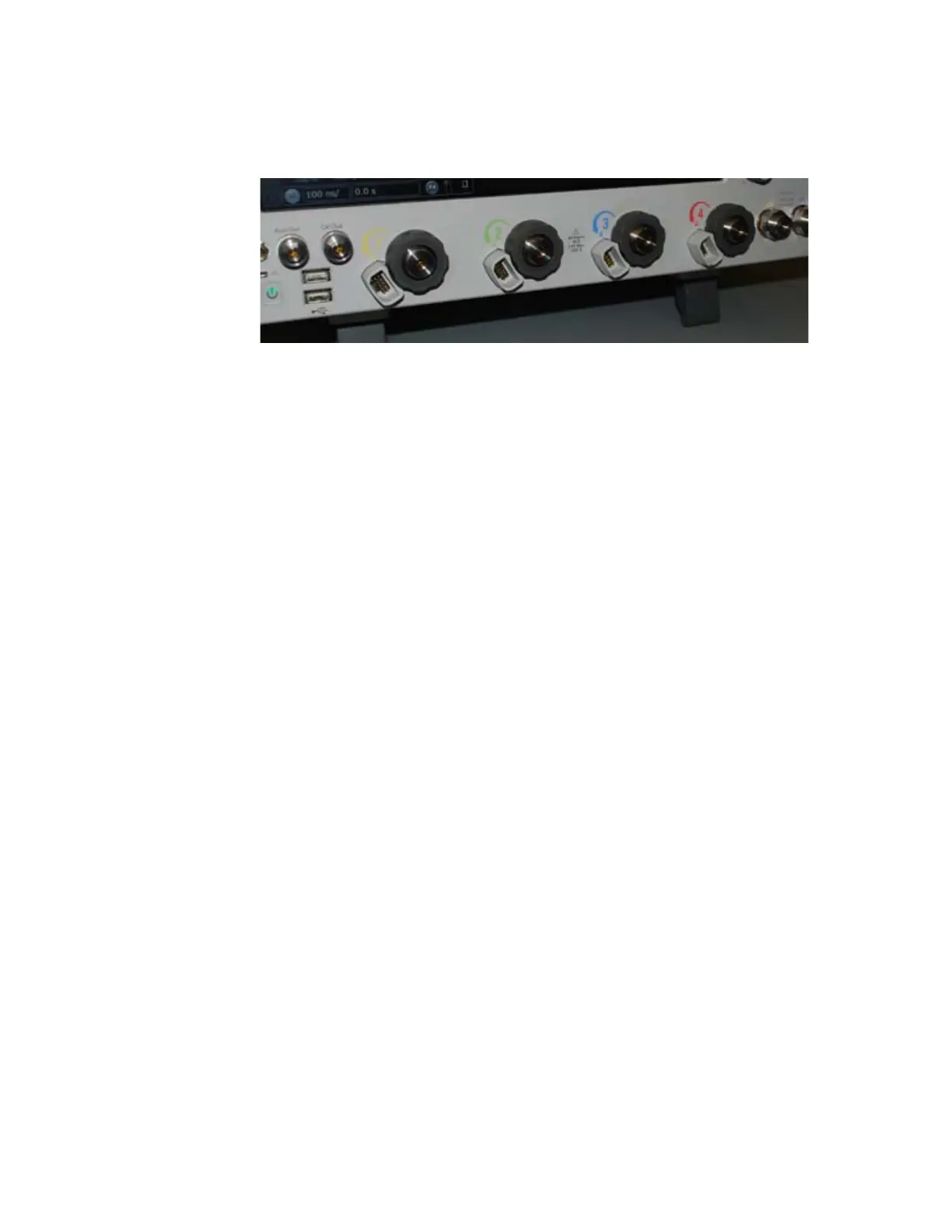

Figure 3 Z-Series Oscilloscope Probe Connectors
