Your vehicle at a glance Engine compartment

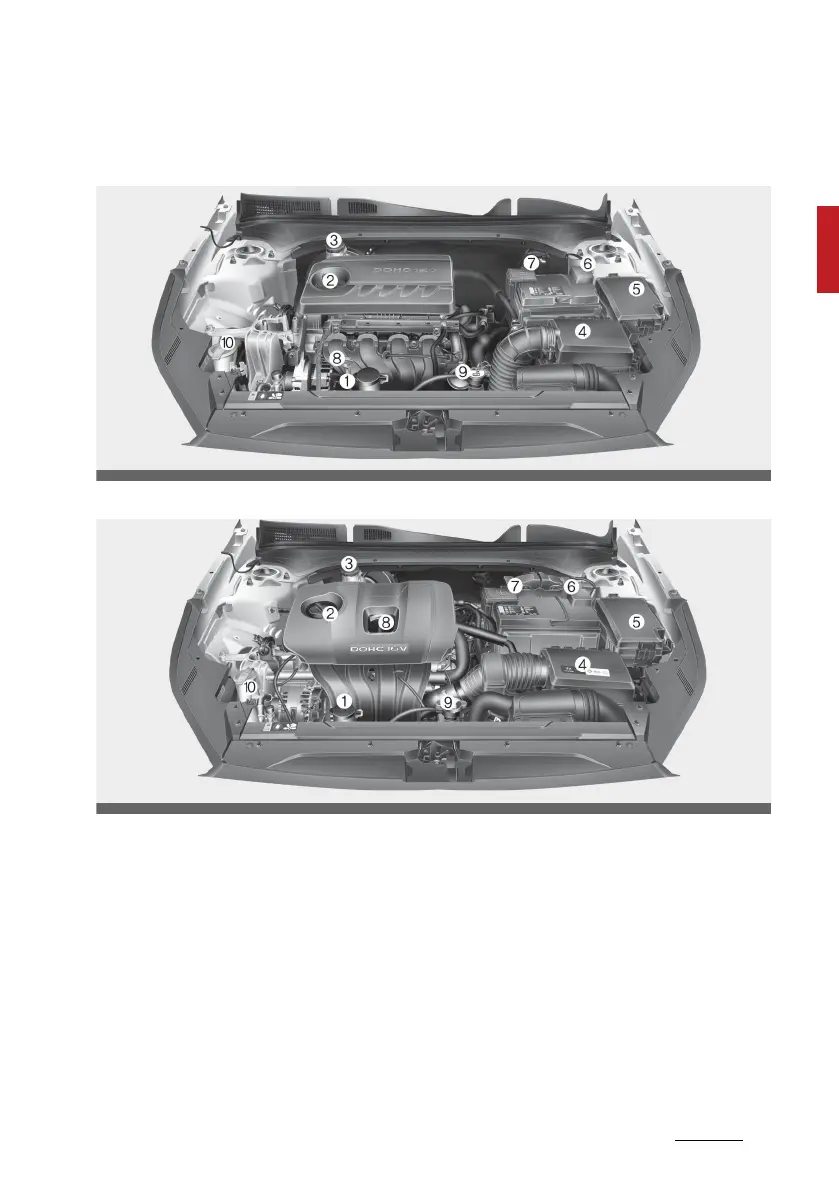

Engine compartment
(Petrol) 1.6 MPI
(Petrol) 2.0 MPI
* The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir 8-43
2. Engine oil filler cap 8-39
3. Brake / clutch fluid reservoir 8-46
4. Air cleaner 8-49
5. Fuse box 8-70
6. Negative battery terminal 8-56
7. Positive battery terminal 8-56
8. Engine oil dipstick 8-39
9. Radiator cap 8-43
10.Windscreen washer fluid reservoir 8-48
