Maintenance Light bulbs

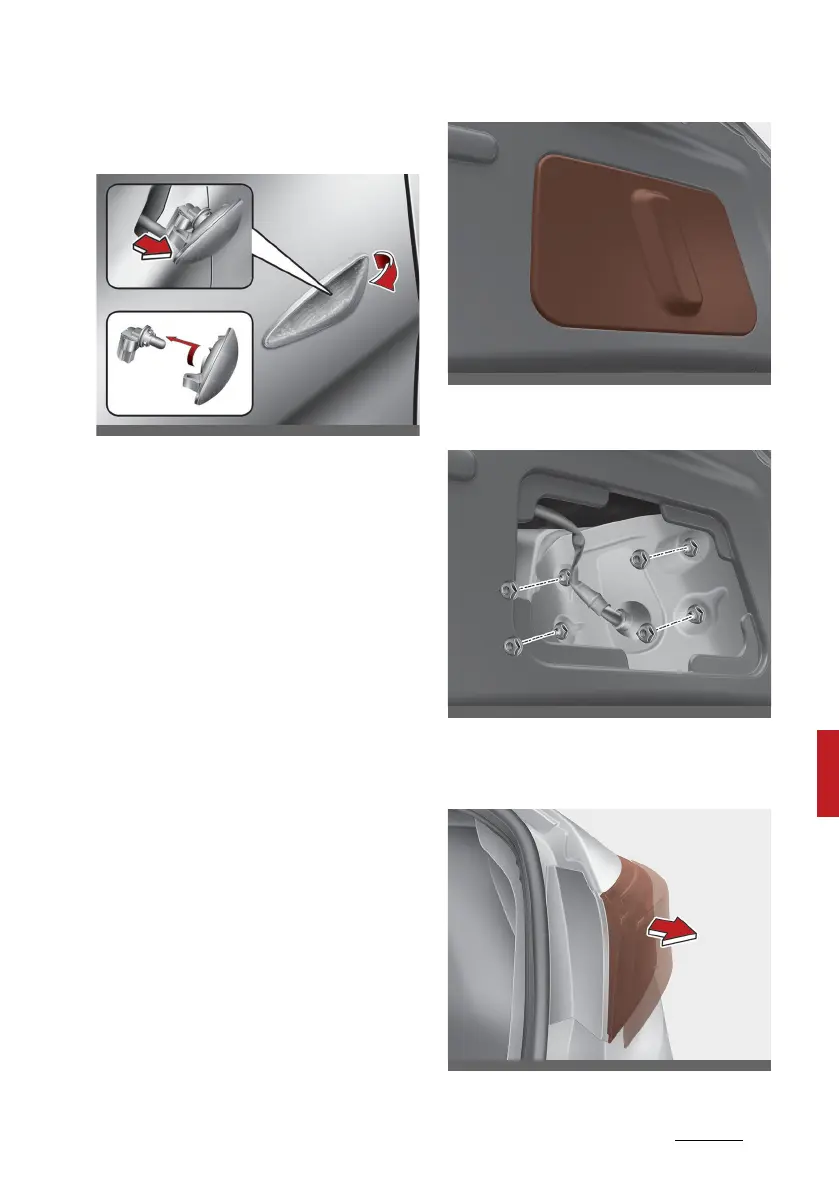

Side repeater lamp (Bulb type) bulb
Replacement
1. Remove the lamp assembly from
the vehicle by prying the lens and
pulling the assembly out.
2. Disconnect the bulb electrical con
-
nector.
3. Separate the socket and the lens
parts by turning the socket coun
-
terclockwise until the tabs on the
socket align with the slots on the
lens part.
4. Remove the bulb by pulling it
straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the
lens part.
7. Connect the bulb electrical con
-
nector.
8. Reinstall the lamp assembly to
the body of the vehicle.
Stop/Tail lamp (Bulb type) bulb
replacement - 4 door type A, B
1. Open the trunk lid.
2. Open the service cover.
3. Loosen the nuts and disconnect
the connector.
4. Remove the rear combination
lamp assembly from the body of
the vehicle.
To Next Page
