Maintenance
548
Wiper blades
3. Install the new blade assembly.
4. Return the wiper arm on the
windscreen.
5. Turn ignition to the ON position
and wiper arms will return to the
normal operating position.

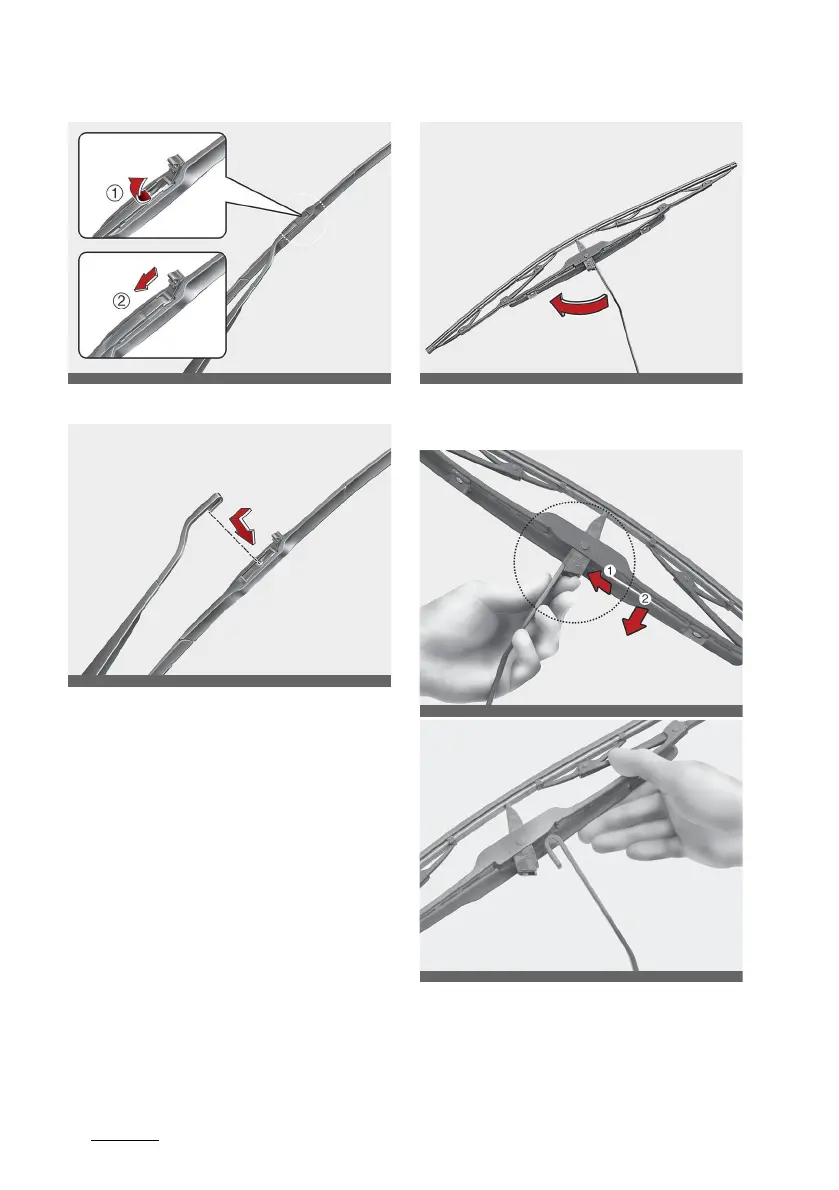

Type B
1. Raise the wiper arm and turn the
wiper blade assembly to expose
the plastic locking clip.
2. Compress the clip and slide the
blade assembly downward.
3. Lift it off the arm.
4. Install the new blade assembly.
5. Return the wiper arm on the
windscreen.
