Kidde VS Series User Manual

Chapter 1: Installation and wiring
P/N 3102351-EN • REV 005 • ISS 28DEC18 9
Table 3: Batteries for VS1 and VS4 panels
Model
Rating
12V4A
12 volts, 4.5 Ah
12V6A5
12 volts, 7.2 Ah
12V10A
12 volts, 11 Ah
12V17A
12 volts, 18 Ah
12V24A
12 volts, 26 Ah

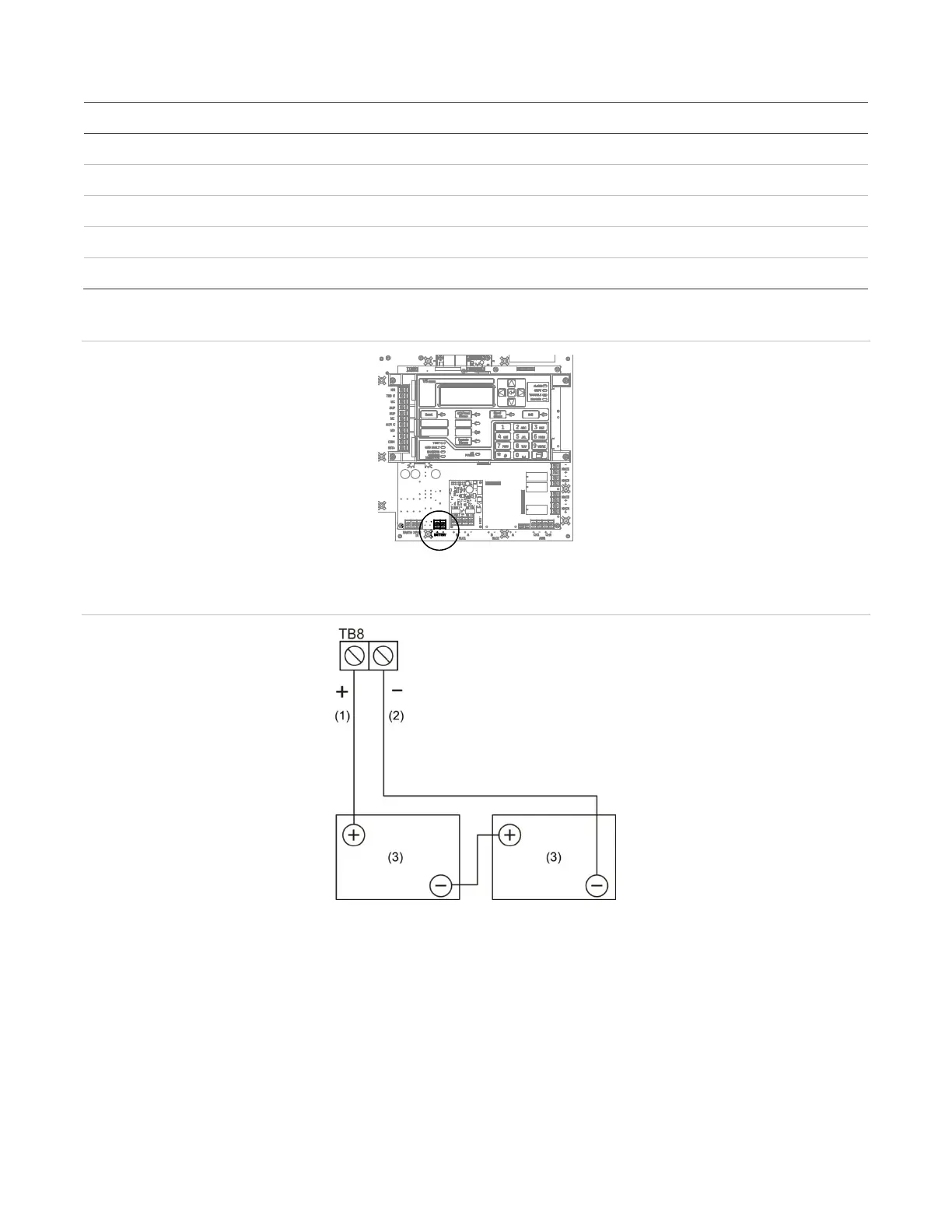

Figure 8: Battery wiring location
Figure 9: Battery wiring
(1) Red
(2) Black
(3) 12 VDC battery
