Chapter 1: Installation and wiring
P/N 3102351-EN • REV 005 • ISS 28DEC18 27

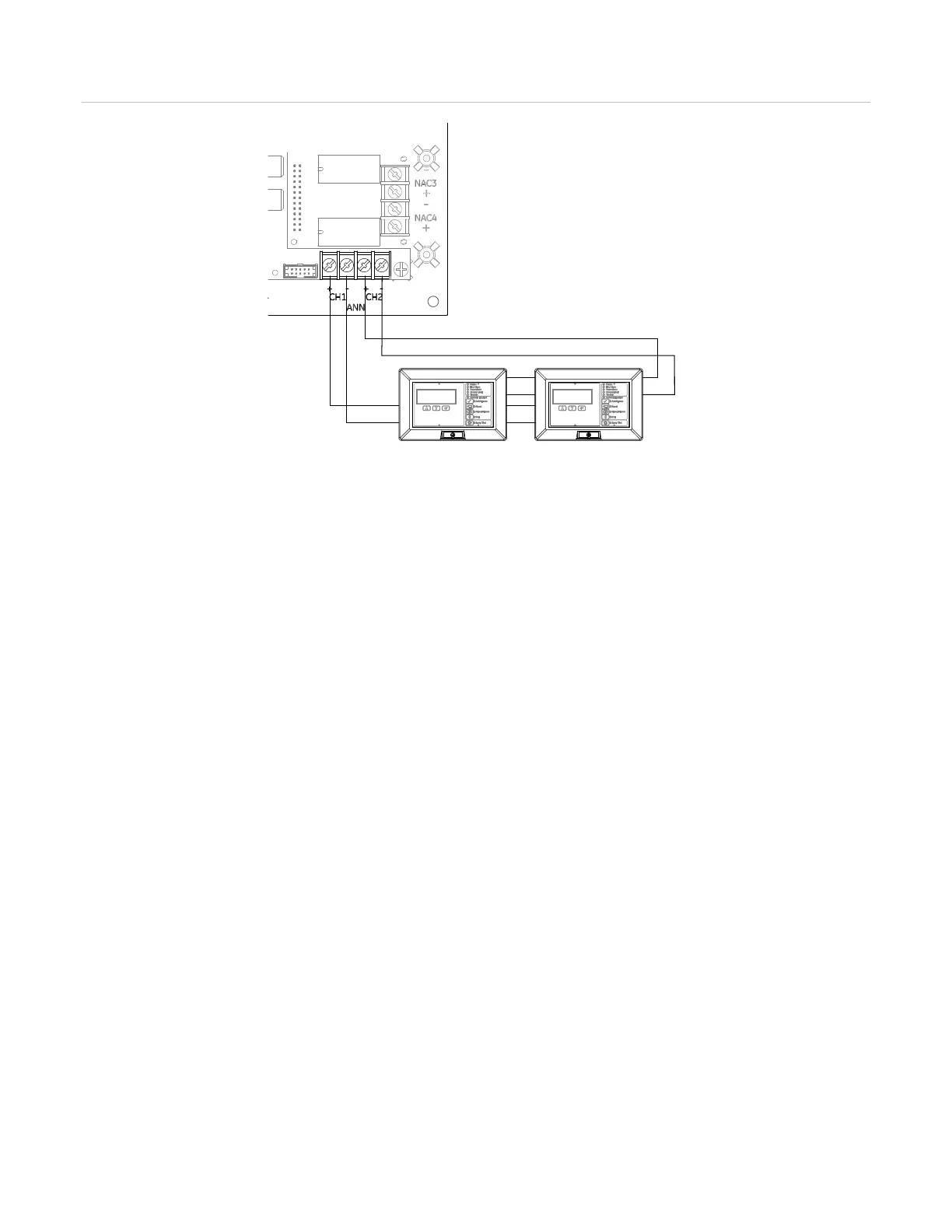

Figure 36: SA-CLA Redundant Class B remote annunciator circuit
SA-ETH wiring
The optional SA-ETH card provides a standard Ethernet network connection for connecting to
a local network or connecting to a computer to read from or write to the panel using the
configuration utility. The optional SA-ETH is required for TCP/IP communications between the
panel and a computer operating the Vigilant Site Monitor (VSM) software.
Circuit specifications
• Ethernet: 10/100BaseT
• Network cable: Cat 5/6 crossover cable or straight through cable
• Operating current (standby or alarm): 34 mA nominal, 41 mA max.
• Wire runs: 200 feet (60 m) max., Cat 5 cable (panel to communication equipment)
