Kidde VS Series User Manual

Chapter 1: Installation and wiring
12 P/N 3102351-EN • REV 005 • ISS 28DEC18

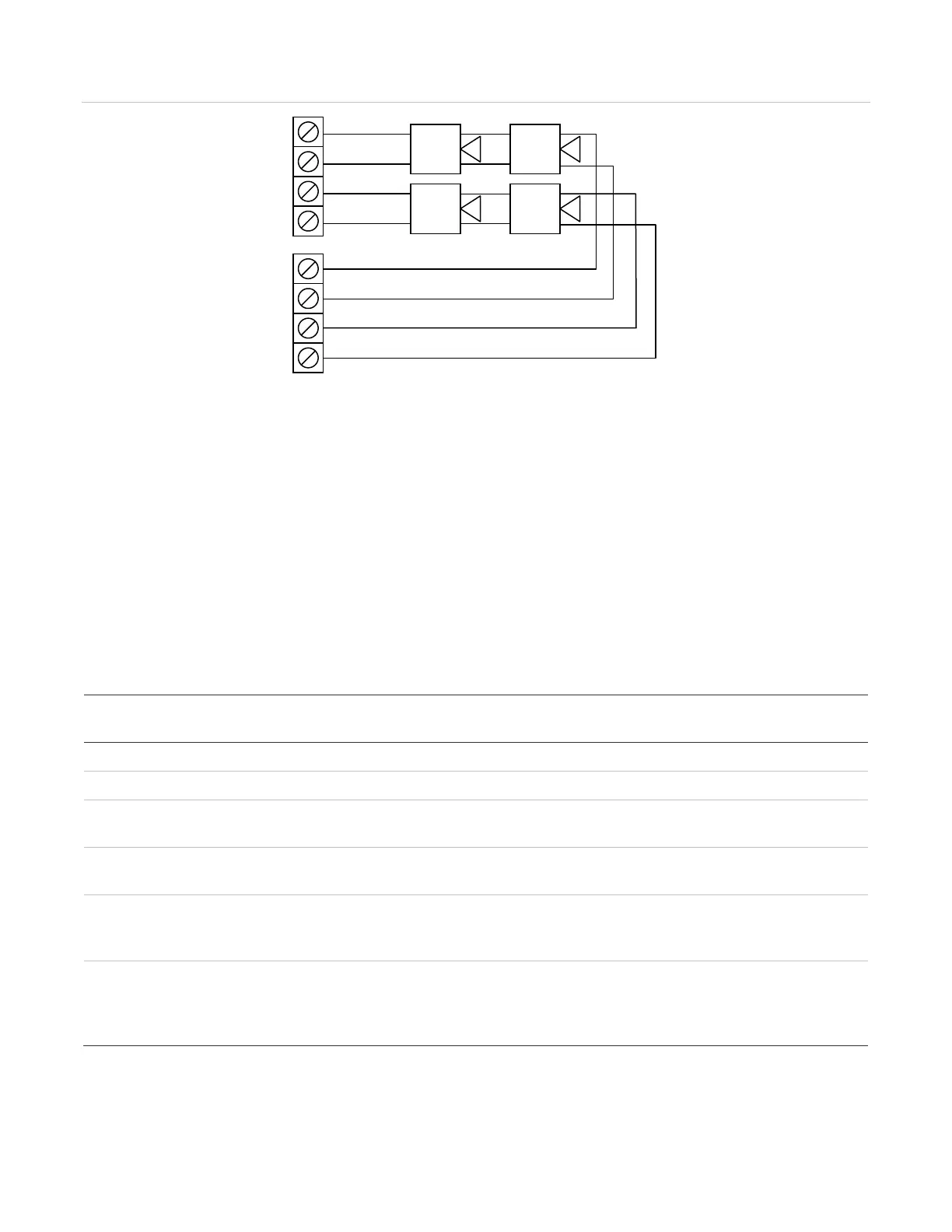

Figure 13: VS4 panel Class A NAC wiring
Note: For VS1 Class A NAC wiring, see “SA-CLA wiring” on page 26.
Addressable device loop wiring
The VS1 and VS4 control panels have addressable device circuits that you can use with
addressable detectors and modules (Table 4). The VS1 supports up to 64 detectors or
modules. The VS4 accommodates two loop cards, and the loop cards can be a single loop or a
dual loop. The VS4 supports up to 1,000 devices, depending on your configuration. The loop
circuit is supervised for open circuits, short circuits, and ground faults.
Table 4: Total supported device addresses
Panel type
Number of loop
cards installed
Loop card type Total number of addresses supported
VS1
1 V-SLC2-1 64 (any combination of detectors or modules)
VS4
1 V-SLC2-1 250 (125 detectors and 125 modules)
VS4
2 V-SLC2-1
V-SLC2-1
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
VS4
1 V-SLC2-2 250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
VS4
1
1
V-SLC2-1
V-SLC2-2
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
VS4
2 V-SLC2-2
V-SLC2-2
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
250 (125 detectors and 125 modules)
Note: For a complete list of devices that can be connected to this circuit, refer to VS1 and VS4
Series Compatibility List (P/N 3102354-EN).
TB2
TB6
NAC1–
NAC2+
NAC2–
NAC1+
+
+
–
–
+
–
+
–
+
–
+
–
