Chapter 1: Installation and wiring

22 P/N 3102351-EN • REV 005 • ISS 28DEC18

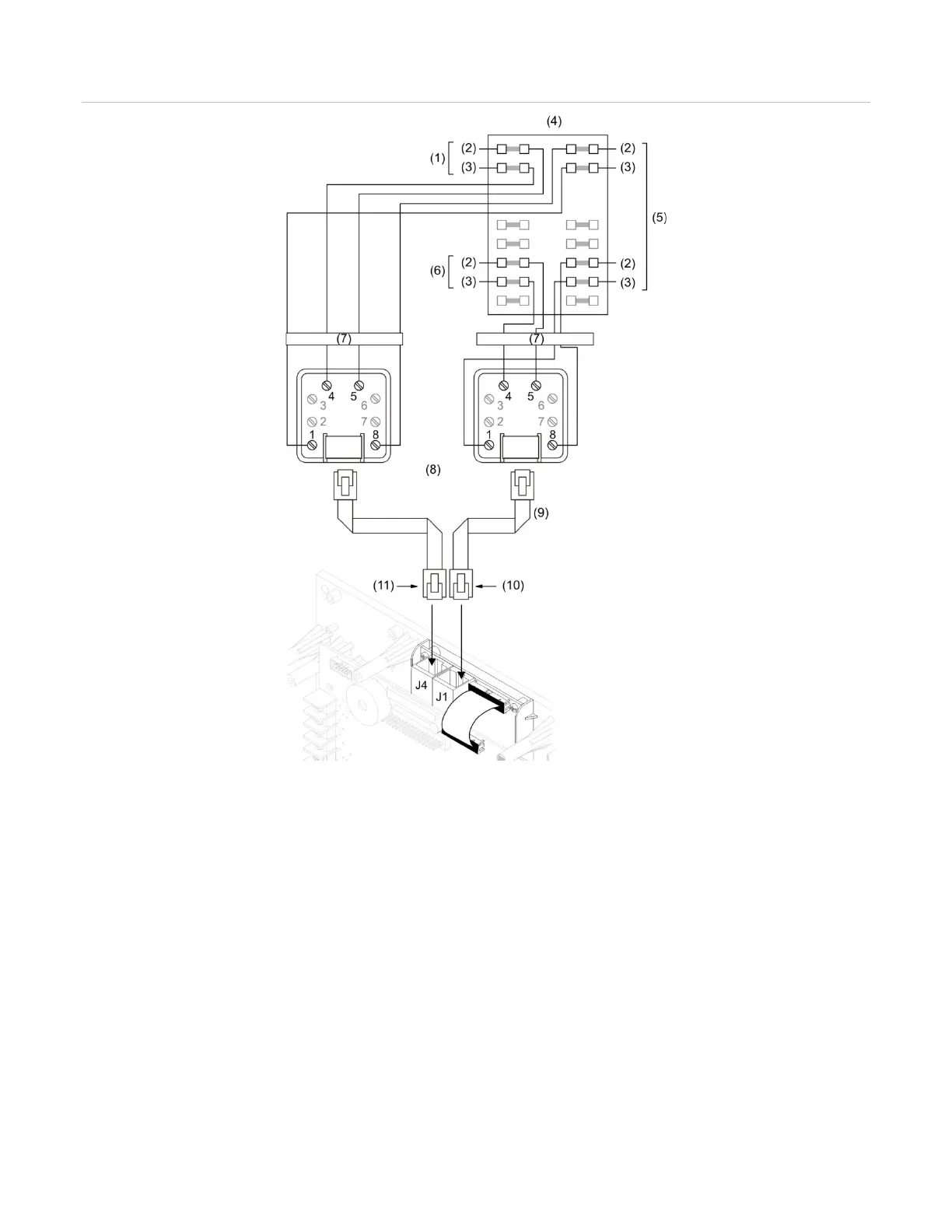

Figure 29: SA-DACT wiring

(1) TELCO Line 2

(

2) Tip

(3)

Ring

(4)

Protected premises punch down block

(5)

PBX

(6) TELCO Line 1

(7) Telephone protector

(8) RJ-31X block (supplied by installer)

(9) 8-position, 4-conductor modular cords

(supplied by the customer)

(10) LINE 1

(11) LINE 2
