Chapter 2: Front panel programming
P/N 3102351-EN • REV 005 • ISS 28DEC18 63

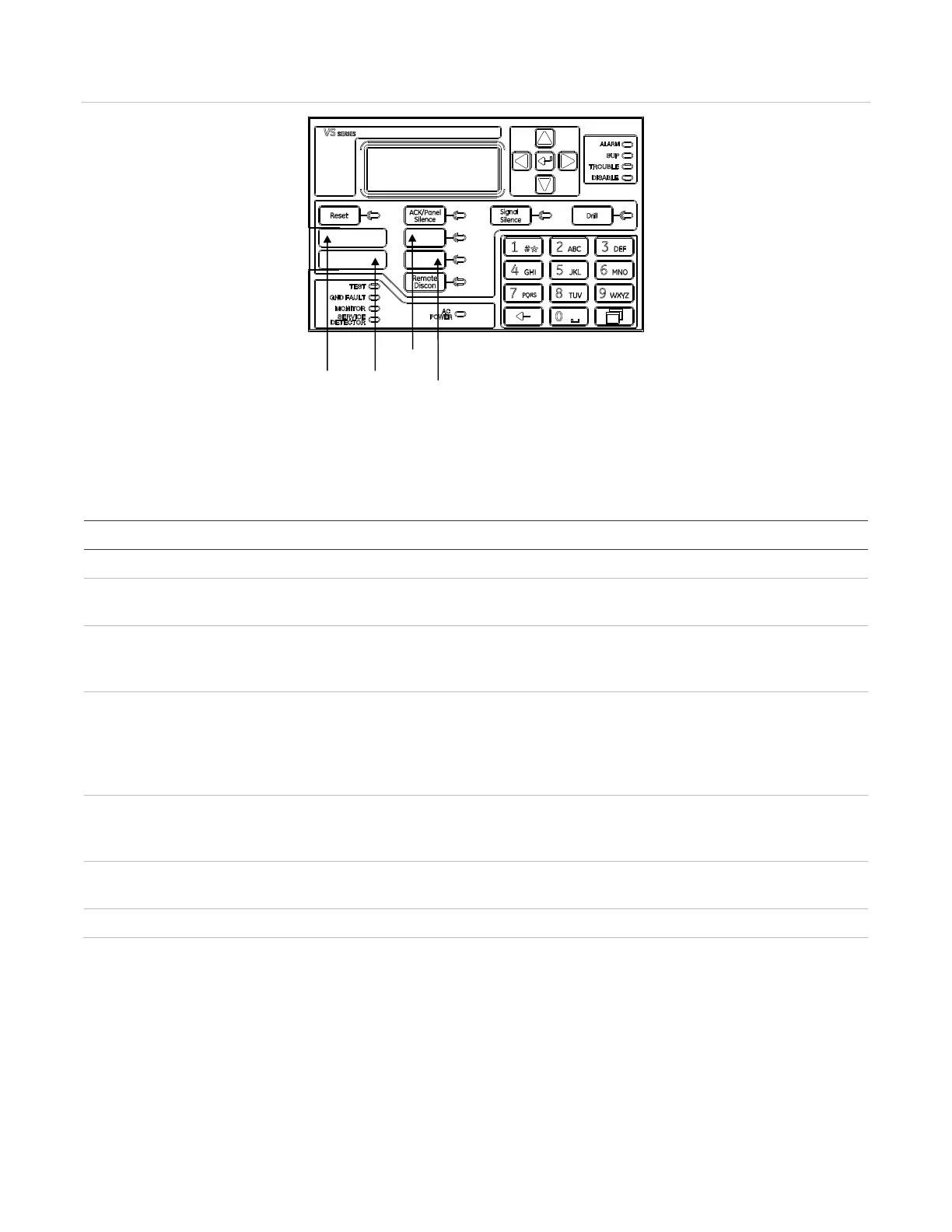

Figure 46: Programmable keys
Note: You cannot program a key while it is active. When the “Key is active” message is
displayed, wait until the key deactivates before continuing.
Table 19: Programmable key functions
Option Behavior when user key is pressed
User key does not respond.
Activates the outputs that belong to the correlation groups associated
with the user key.
Members Disables all of the inputs and outputs, including NACs, and zones that
belong to the correlation groups associated with the user key with an
option of “Members.”
Group Disables the correlation groups associated with the user key with an
option of “Group.” The devices, NACs, and zones that belong to the
correlation group remain enabled. Disabled correlation groups do not
activate even if the required number of inputs activate. This is typically
used to prevent relay and sounder bases from sounding.
Members + Group Disables all of the devices, NACs, and zones that belong to the
correlation groups associated with the user key with an option of
“Members + Group.” It also disables the correlation group.
Restores the outputs that belong to the correlation groups associated
with the user key only if it is active.
Unlatches all latched outputs in the system.
Key 1
label
Key 1
Key 2
label
Key 2
00:00:00 01/01/07
,
