Kohler RD 441

- 19 -
Workshop Manual KD 441_cod. 1.5302.865_2
nd
ed_ rev. 01.
4
4
6
5
4
2
1
6
8
3
7
7
5
A

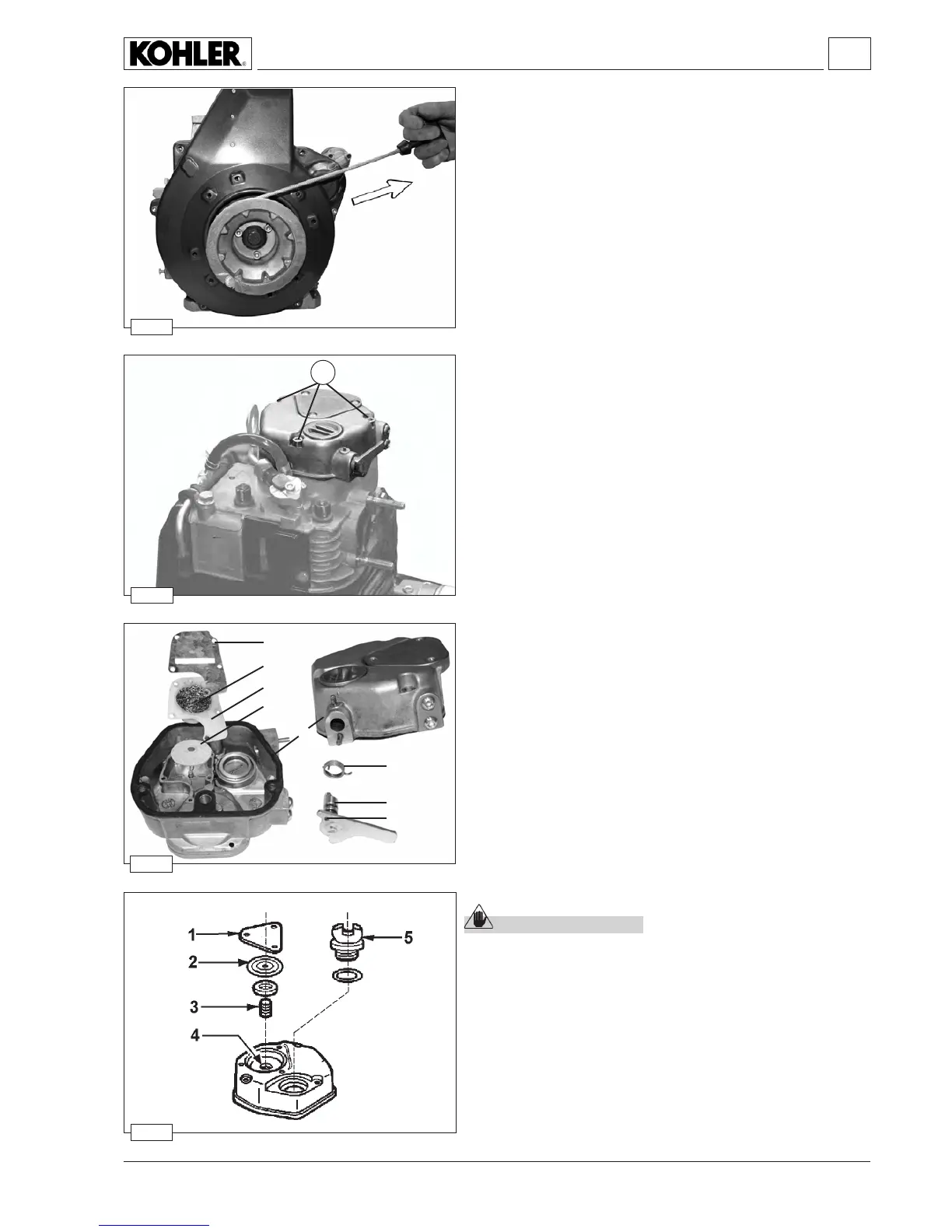

Disassembly
Holdthegripandrmlypullouttheropetostart.
Rocker arm cover breather system
The crankcase breather system is located inside the rocker arm cover
1. Check that diaphragm 2 is intact ; wash with Diesel oil and blow
through the small mesh element 4 with compressed air.
When reassembling x box 3 with Loctite " Form-a- gasket  No. 6"
and screw plate 5.
To assemble decompression lever 7, insert spring 6 (positioned as in
gure)ontheleverpin,consideringthatthespringclipshouldbein-
serted in hole 8.
Rocker arm cover - Breather recirculation
Caution – Warning
Always check the the spring 3 and valve 2 to make sure they are
in a good conditions.
Crankcase vapor recirculation occurs through duct 4.
Iftheairlterclogs,theincreasedintakevacuumcouldsuckoilthrou-
gh duct 4 into the combustion chamber, causing the engine to ope-
rate at a runaway rate. This is prevented by valcuum valve 2 which,
when the vacuum increases, overcomes the resistance of spring 3
and shuts the duct 4.
Make sure that oil plug 5 is correctly closed.
Retcover1 and tighten rocker arm cover to 10 Nm.
Rocker arm cover
Loosen fastening screws A and remove the rocker arm cover.
