- 54 -
Workshop Manual KD 441_cod. 1.5302.865_2
nd
ed_ rev. 01.
6
124
1
2
126
125
127
A
B

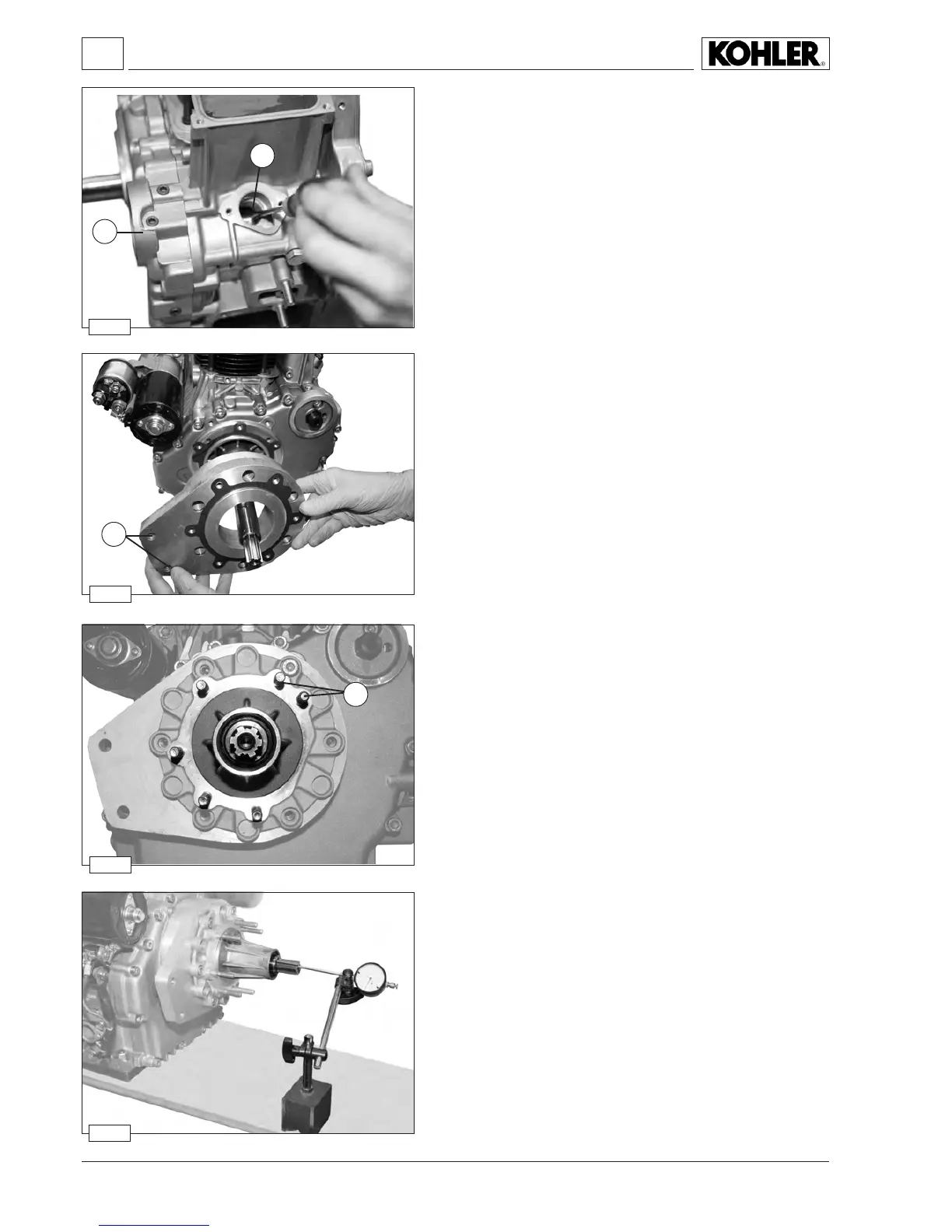

Reassembly
Camshaft end play
Temporarilytcamshaft1 complete with washer; tighten gear cover 2
to 25 Nm.
Check end play by moving the camshaft back and forth using a sui-
table tool; the end play value is 0.10÷0.25 mm and is not adjustable.
In case of excessive clearance, replace the camshaft and the timing
cover.
Crankshaft end play
Secure the engine to a metal base or table. Use a dial indicator with
column and magnetic base plate. Place the stylus on the crankshaft.
Pushandpullthedrivingshaftontheywheelside.
End play should be 0.05÷0.25 mm; it is not adjustable.
In case of excessive clearance, replace the clearance shims.
Gearbox extension, intermediate ange
Assemble the gasket on the timing cover.
AssembletheintermediateangewithgearboxxingholesA facing
the starting motor side.
Tighten the fastening screws to 25 Nm.
Gearbox extension
Assemblethegasketbetweentheintermediateangeandthegear-
box extension.
Assemble the gearbox extension using special tool p/n 1460-329 to
avoid damaging the oil seal rings, and taking care that the gearbox
fasteningangeiscorrectlypositionedwithstudboltsB facing the oil
lter.
Tighten the fastening screws to 25 Nm.
