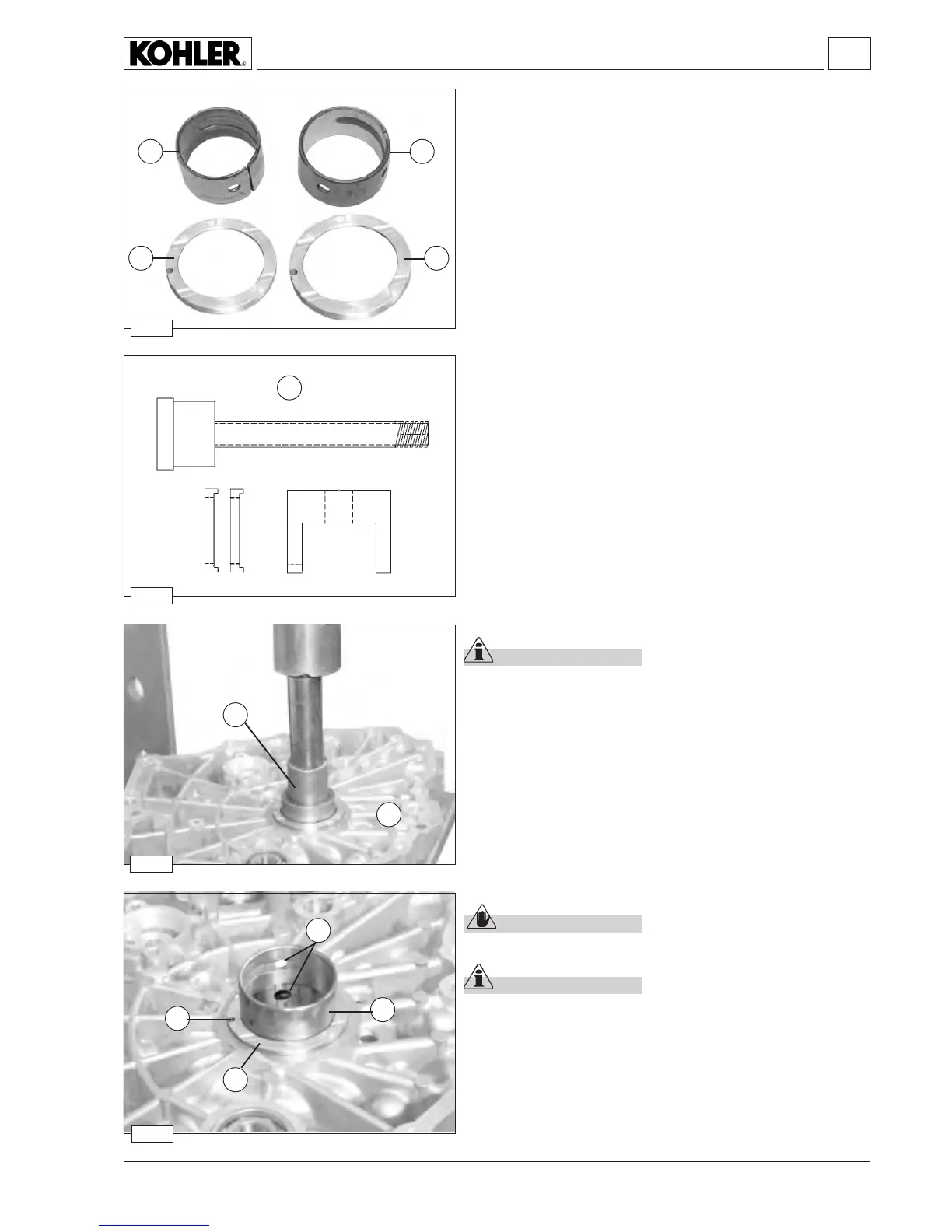

Overhauls and checking
Timing cover bearing - Extraction
Important
Firmly place the timing cover on a press.
Place bearing extraction tool D on the bearing.
Operate the press, remove the bearing and then thrust washer 1.
Timing cover bearing, crankshaft bearing, and thrust washer re-
placement
Legend
1 Thrust washer on timing cover side
2 Thrust washer on crankcase side
3 Bearing on timing cover side
4 Bearing on crankcase side.
D
Assembly/extraction tool for timing cover side bearing and for
crankcase side bearing p/n 1460-333
Timing cover bearing - Reassembly
Caution – Warning
Thoroughly wash the timing cover, thrust washer 1 and bearing
3.
Important
Firmly place the timing cover on a press.
Assemble timing cover 1 referring to pin 1a on the timing cover.
Place bearing 3 for the assembly taking care holes 3a are aligned.
