- 44 -
Workshop Manual KD 441_cod. 1.5302.865_2
nd
ed_ rev. 01.
92
3
93
94
K
2
2
95
5

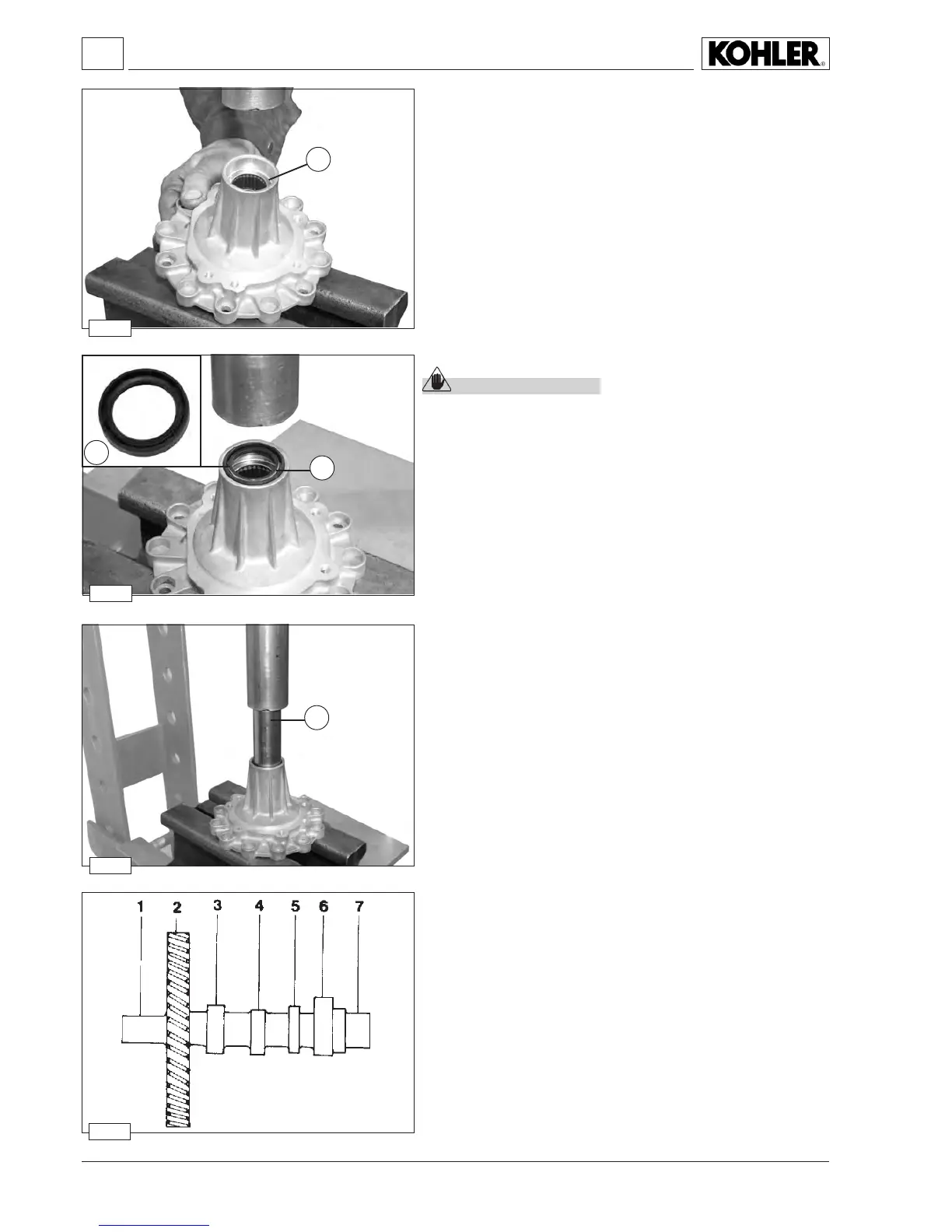

Camshaft
Components:
1 Journal, gear cover on timing side
2 Gear
3 Exhaust lobe
4 Injection lobe
5 Fuel pump eccentric
6 Intake lobe
7 Journal, crankcase side
Overhauls and checking
Once assembled, roller bearing 3 should be at the same level of the
reference ridge on the gearbox extension.
Place oil seal ring assembly tool K on oil seal ring 2.
Operate the press to assemble the oil seal ring.
Repeat these operations for the second oil seal ring, using the tool H.
Makesurethesecondoilsealringisplacedontherstonewithits
channel facing downwards.
Oil seal ring - Reassembly
Caution – Warning
Lubricate the oil seal ring before reassembly.
Place oil seal ring 2 on the gearbox extension opening making sure
thechannelisfacingupwards(seegureontheside).
