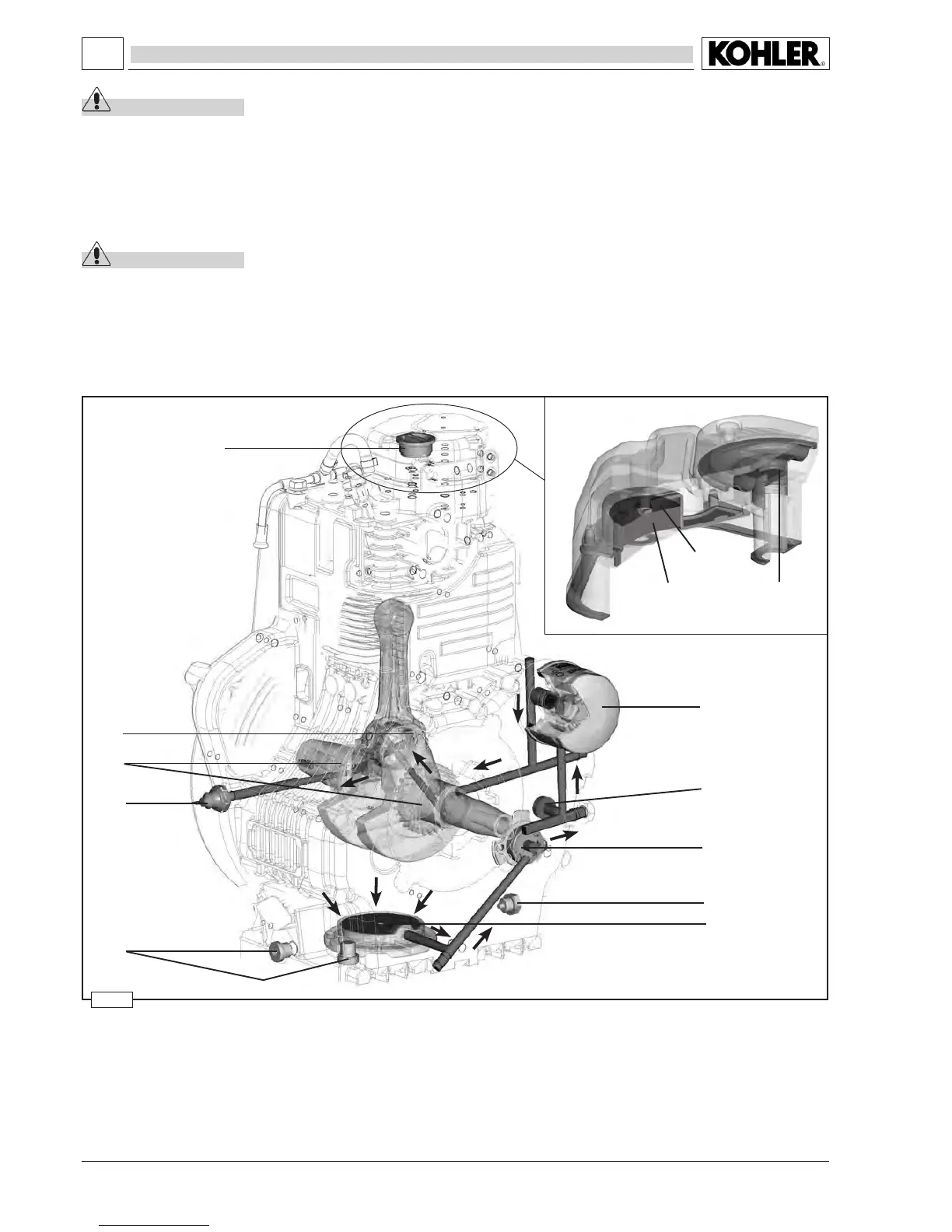

Components:
1)Oilllcap 6) Oil drain plug 11)Oilintakelter
2) Safety valve 7) Oil vapour separator 12) Safety valve
3) Rod journal 8) Main journal
4) Pressure control valve 9) Oillter
5) Pressure gauge 10) Oil pump
LUBRICATION SYSTEM
Danger – Attention
Theenginecanbedamagedifallowedtooperatewithinsufcientoil.Itisalsodangeroustoaddtoomuchoilbecauseitscombu-
stion may lead to a sharp increase in the rotation speed.
Use suitable oil in order to protect the engine.
Nothingmorethanlubricationoilcaninuencetheperformancesandlifeofanengine.
Use of an inferior quality oil or failure to regularly change the oil will increase the risk of piston seizure, will cause the piston rings to
jam and will lead to rapid wear on the cylinder liner, the bearings and all other moving parts. Engine life will also be notably reduced.
The oil viscosity must suit the ambient temperature in which the engine operates.
Danger – Attention
Old engine oil can cause skin cancer if repeatedly left in contact with the skin and for long periods of time. Wear protective gloves
to avoid touching used oil. If contact with the oil is unavoidable, you are advised to wash your hands with soap and water as soon
as possible. Dispose of old oil in the correct way as it is highly polluting.
