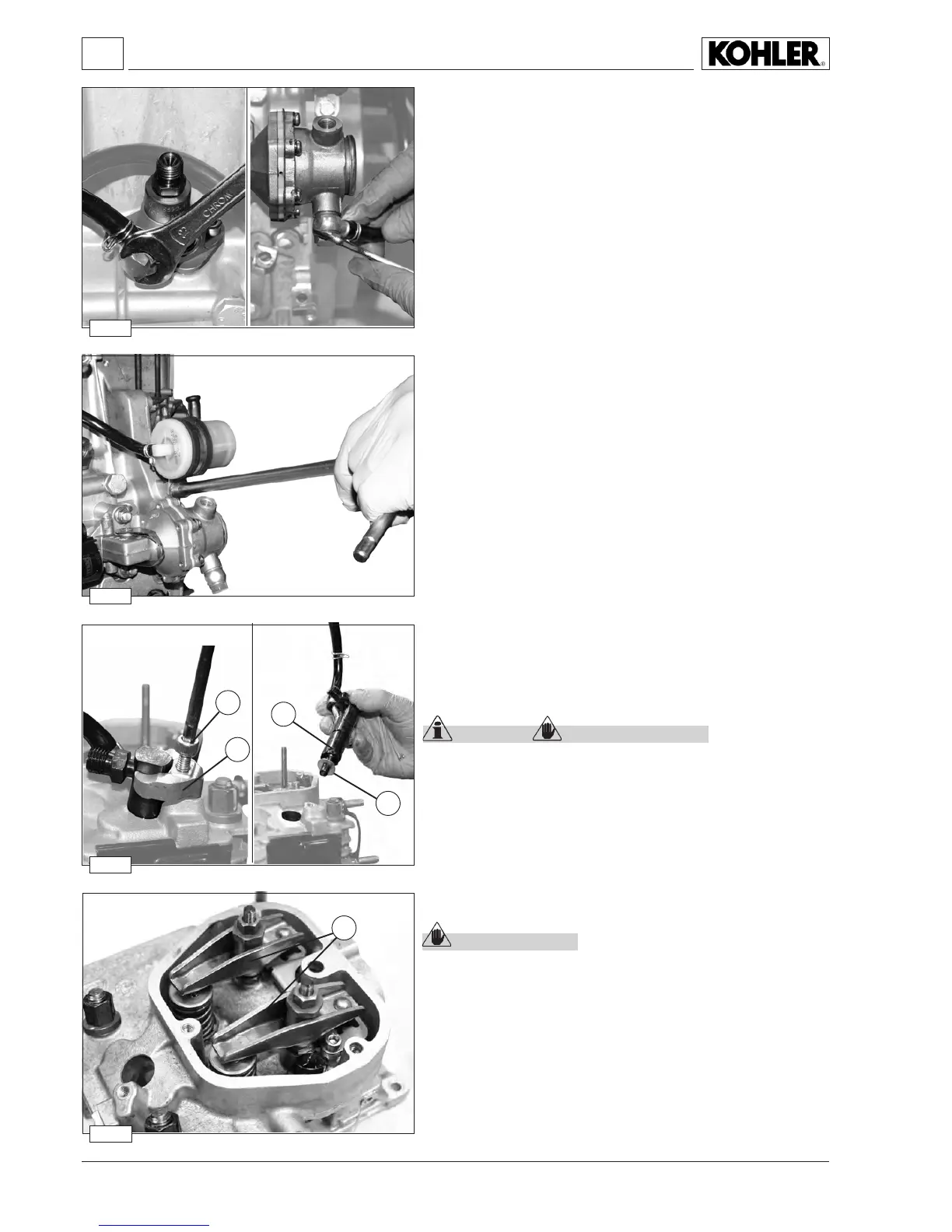

Disassembly
Cylinder head
Caution – Warning
Before disassembling the cylinder head, remove rocker arms C
and the pushrods.
Loosen the inlet union of the injection pump.
Loosen the outlet union of the injection pump.
Loosenthefasteningscrewbetweenthedieselfuellterandtheso-
lenoid valve.
Removethefuelsupplycircuitcompletewithsolenoidvalve,lterand
fuel pump.
Injector
Loosen screw A
andremovethebracketxinginjectorB to the cylin-
der head.
Remove injector C together with copper seal D.
Important Caution - Warning
The correct protrusion of the spray nozzle from the cylinder
head surface is obtained with copper seal D available in the
following thicknesses: 0.5, 1 and 1.5 mm.
