Kohler RD 441 User Manual

- 27 -
Workshop Manual KD 441_cod. 1.5302.865_2
nd
ed_ rev. 01.
4
36
37
38
C
B
D
39
C
A
E

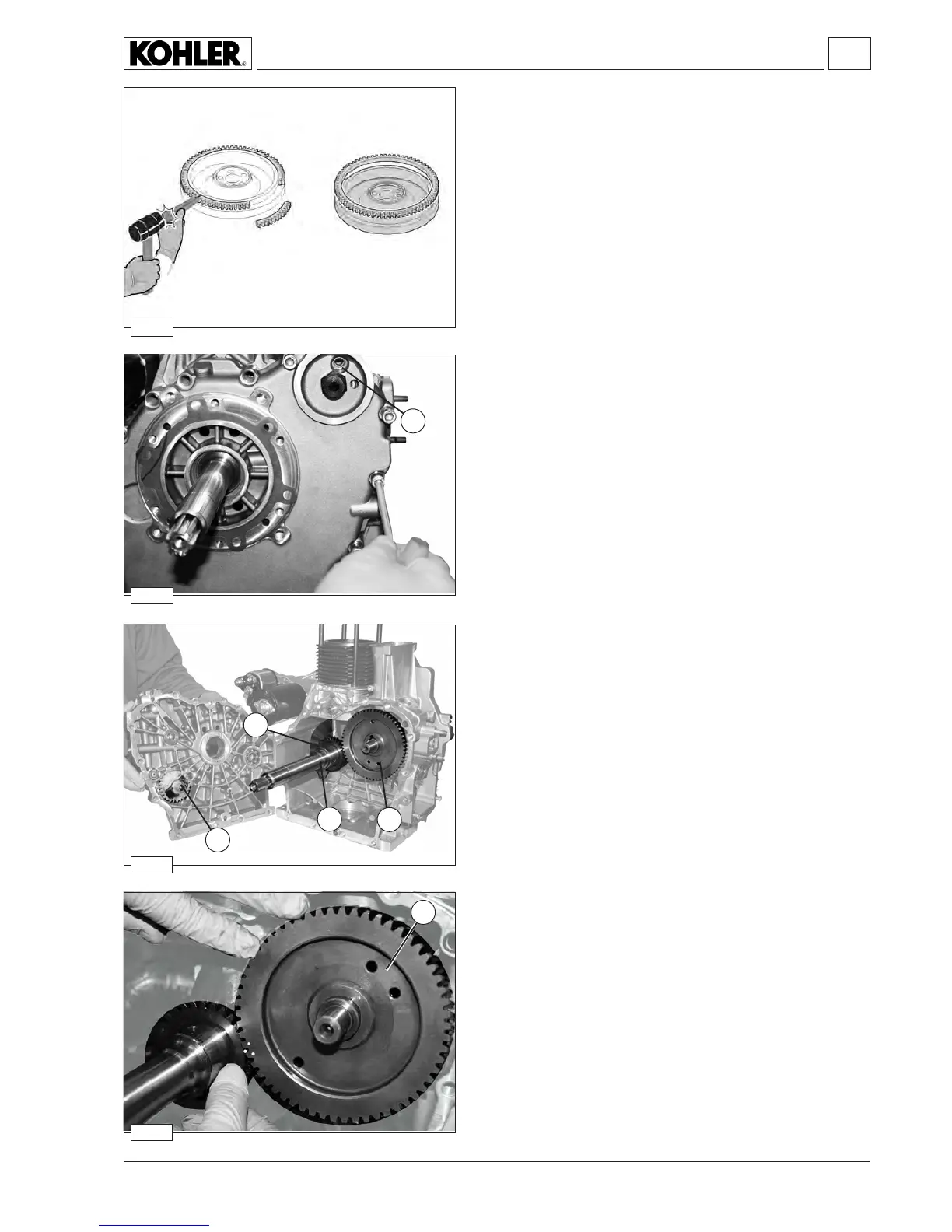

Disassembly
To remove the starter rim, it is advisable to cut it into several parts
with a hacksaw and to then use a chisel. To replace, slowly heat for
15-20 minutes to a temperature of 300°C max.
Fit the rim into the ywheel housing. make sure that it rests evenly
against the support of the housing itself.
Allow it to slowly cool.
Timing cover
Disassembletheoilltercartridge.
Loosen the fastening screws of the timing cover including screw A
housedintheseatoftheoilltercartridge.
Components:
B Crankshaft
C Camshaft
D Equalizer shaft
E Speed governor / oil pump gear.
Camshaft
Remove camshaft C.
