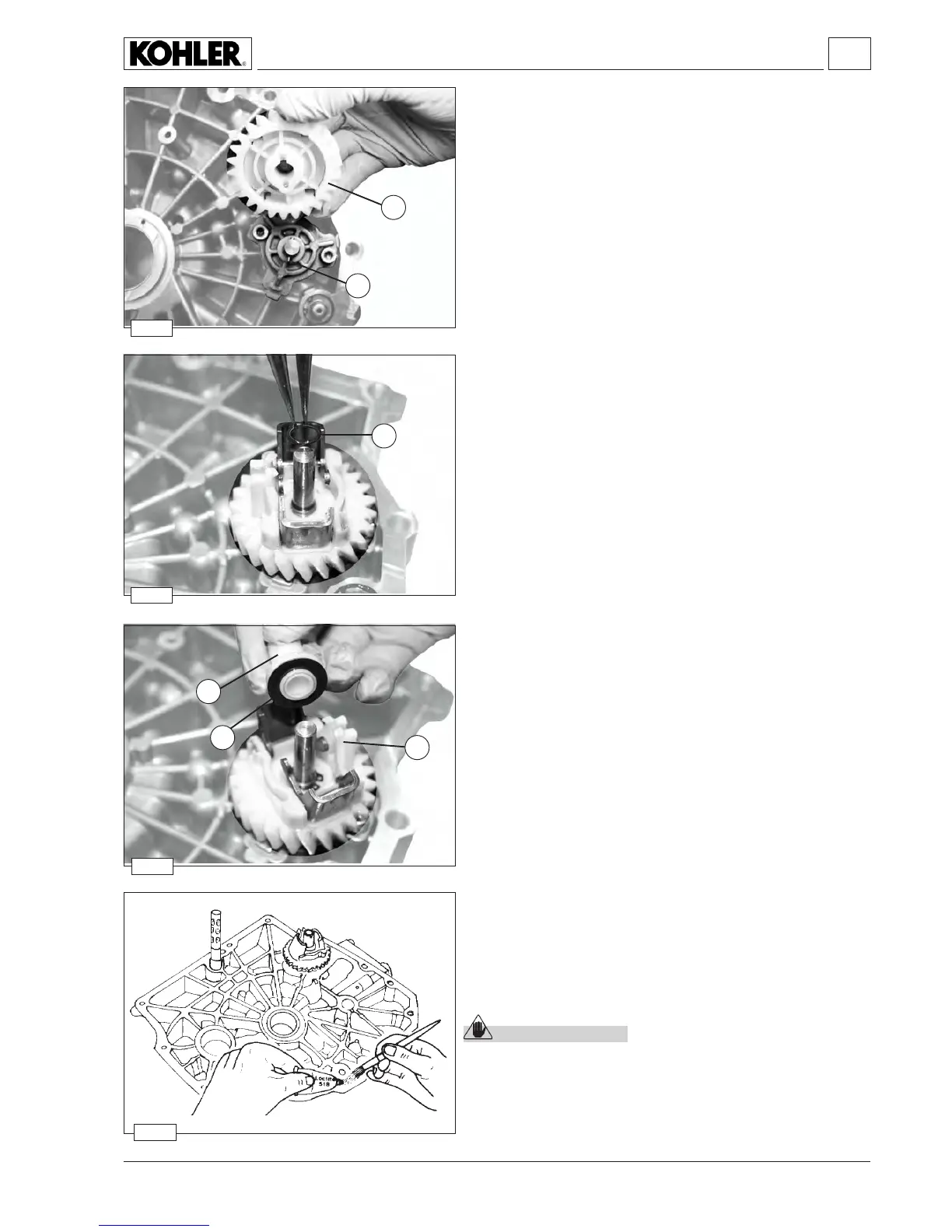

Reassembly
Gear cover on timing side
Proper sealing between gear cover and crankcase is ensured by the
liquidsealant"Loctite5205".Carefullycleanthetwosealingsurfaces
and spread the sealant uniformly.
Tighten screws to 23 Nm.
Caution – Warning
Wait 3 hours before starting again the engine.
Assemble governor lock tension washer 7.
Assemble governor gear 5 by inserting drive pin 9 into its seat on the
gear.
Insert drive rod 2 with clearance shim 8 forcing the clamping teeth on
drive collar 4.
