Kohler RD 441 - Oil Pump

- 29 -
Workshop Manual KD 441_cod. 1.5302.865_2
nd
ed_ rev. 01.
4
44
7
45
5
47
46
5 4 3 2 1
1
9
Disassembly

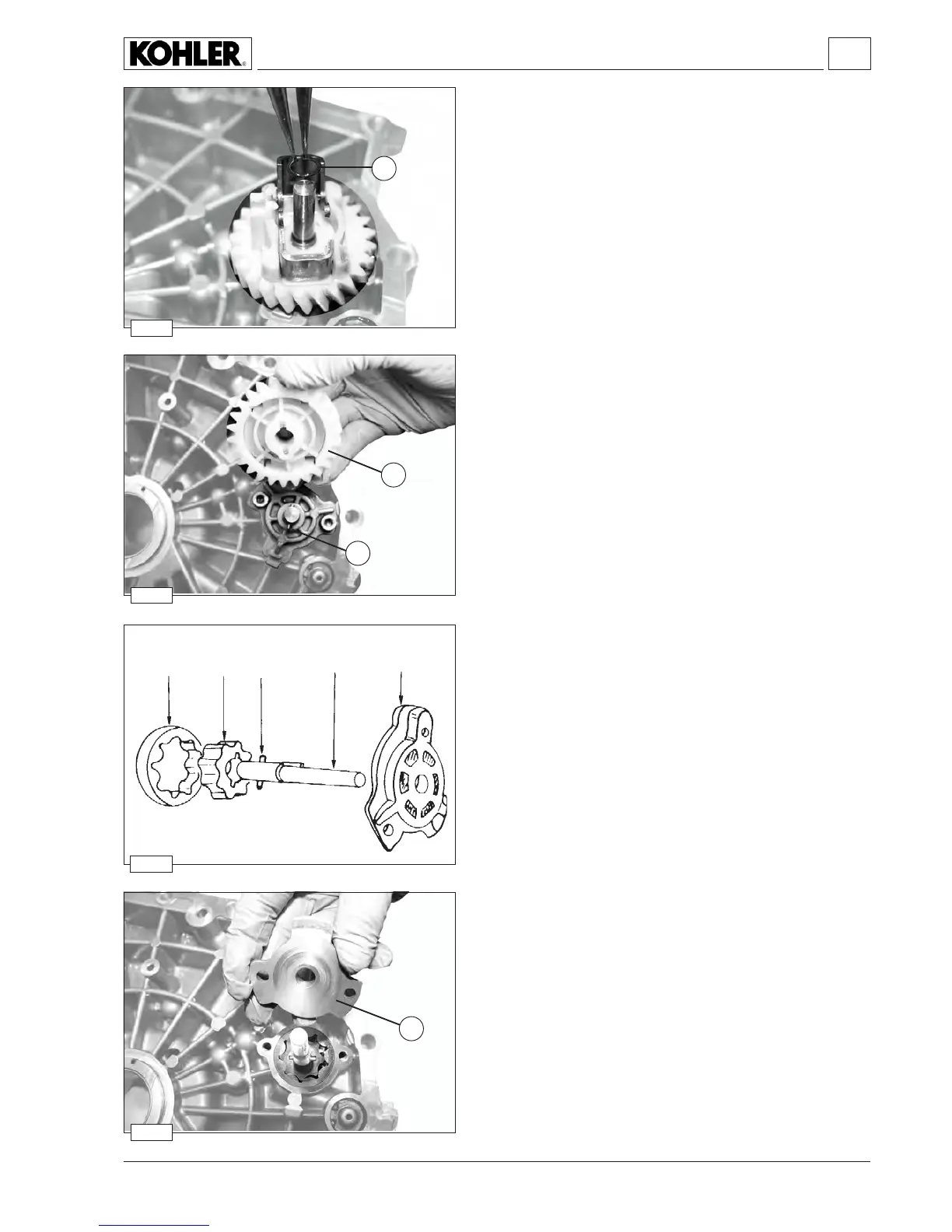

Loosen the fastening screws and remove oil pump cover 1.
Oil pump
Components:
1 Cover
2 Oil pump driving shaft
3 Key
4 Pin
5 Internal rotor
6 External rotor
Remove governor lock tension washer 7.
Remove governor gear 5 taking care not to make drive pin 9 drop.
