Workshop Manual KD 441_cod. 1.5302.865_2
nd
ed_ rev. 01.
112
A
B
1
A
C
2
113
115
5
114
5 4 3 2 1
6

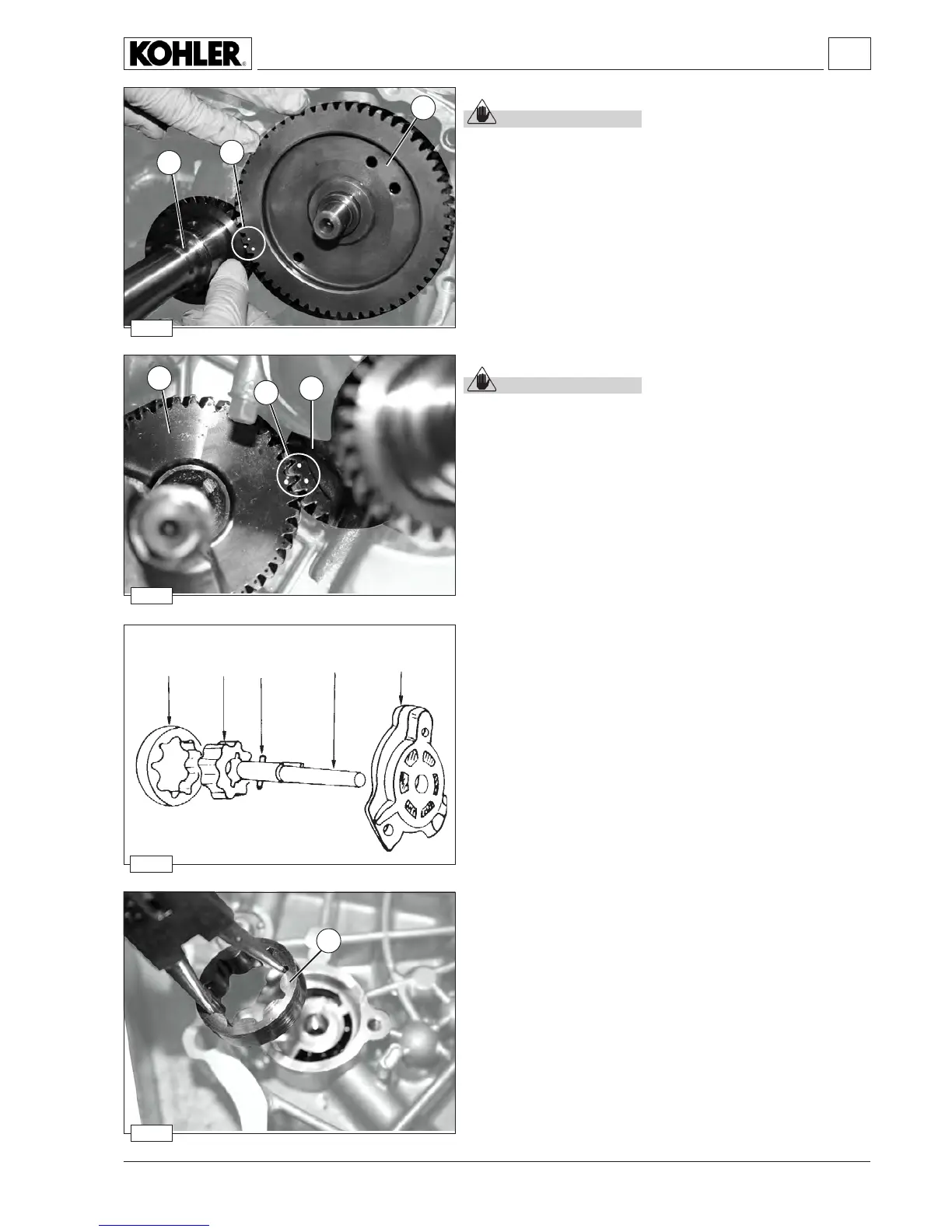

Reassembly
Oil pump
Components:
1 Cover
2 Oil pump driving shaft
3 Key
4 Pin
5 Internal rotor
6 External rotor
Camshaft
Caution – Warning
Lubricate the camshaft bearing on the crankcase.
Match the reference tip on crankshaft gear A with the 2 ones on
camshaft gear B (see circled area 1).
Insert the camshaft.
Equalizer shaft
Caution – Warning
Lubricate the equalizer shaft support bearing.
Match the 2 reference points on crankshaft gear A with the one on
equalizer shaft C (see circled area 2).
Insert the equalizer shaft.
Insert outside rotor 5.
