- 63 -
Workshop Manual KD 441_cod. 1.5302.865_2
nd
ed_ rev. 01.
150
8
151
152
153
A
B
C

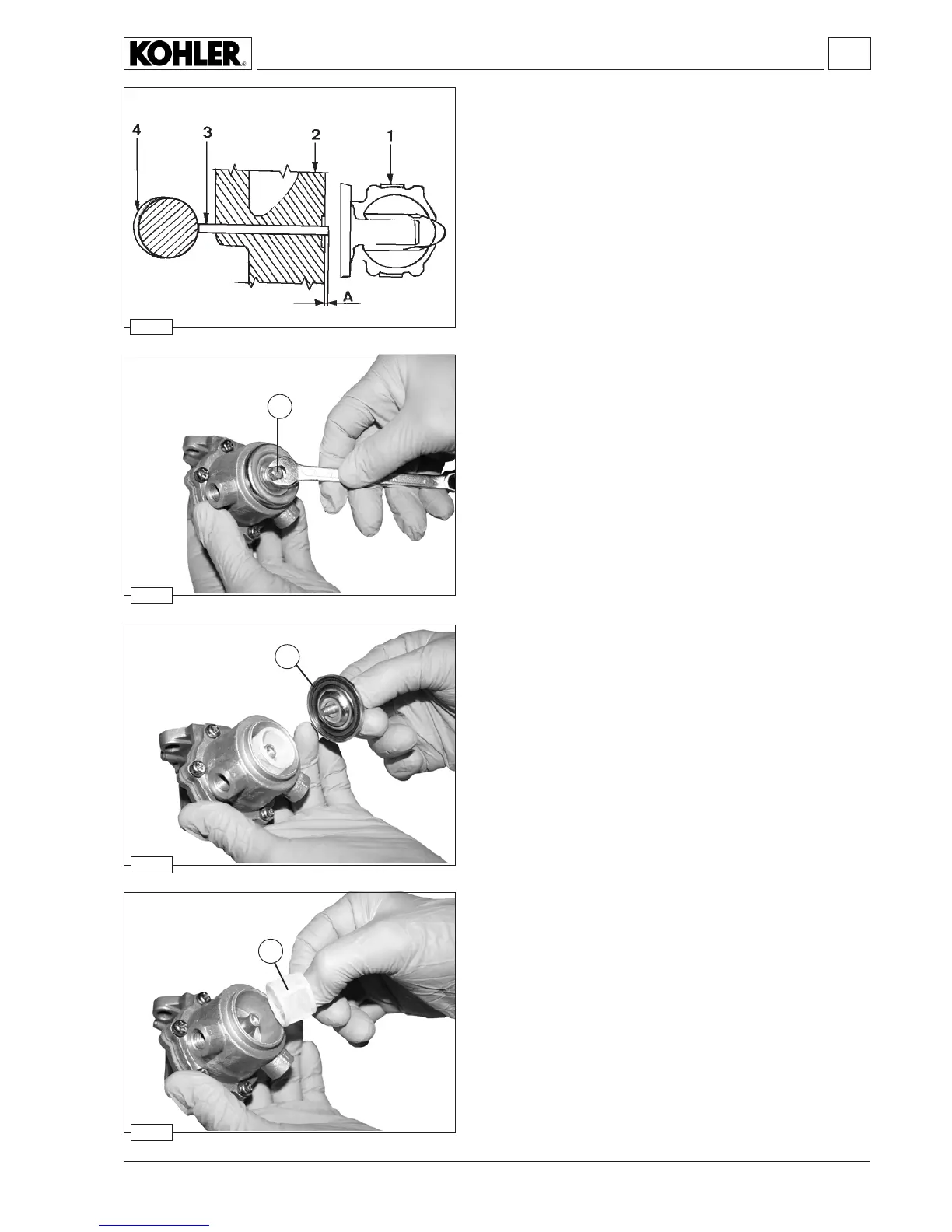

Fuel pump, drive rod protrusion
Components:
1 Fuel pump
2 Crankcase
3 Drive rod
4 Eccentric
Check while eccentric 4 is at rest (lowest point of travel).
Protrusion A of drive rod 3 is 1.5÷1.9 mm; it is not adjustable.
Replace the drive rod if it does not comply with tolerance.
Drive rod length 70.8÷80.0 mm
Fuel system
Fuel lift pump - Filter cleaning
Tocleanthefuelpumplterloosenscrew A.
Remove the fuel pump cover B.
PulloutthelterC.
Clean the lter, put it back in seat, mount the fuel pump cover and
retighten the screw to 4.5 Nm.
