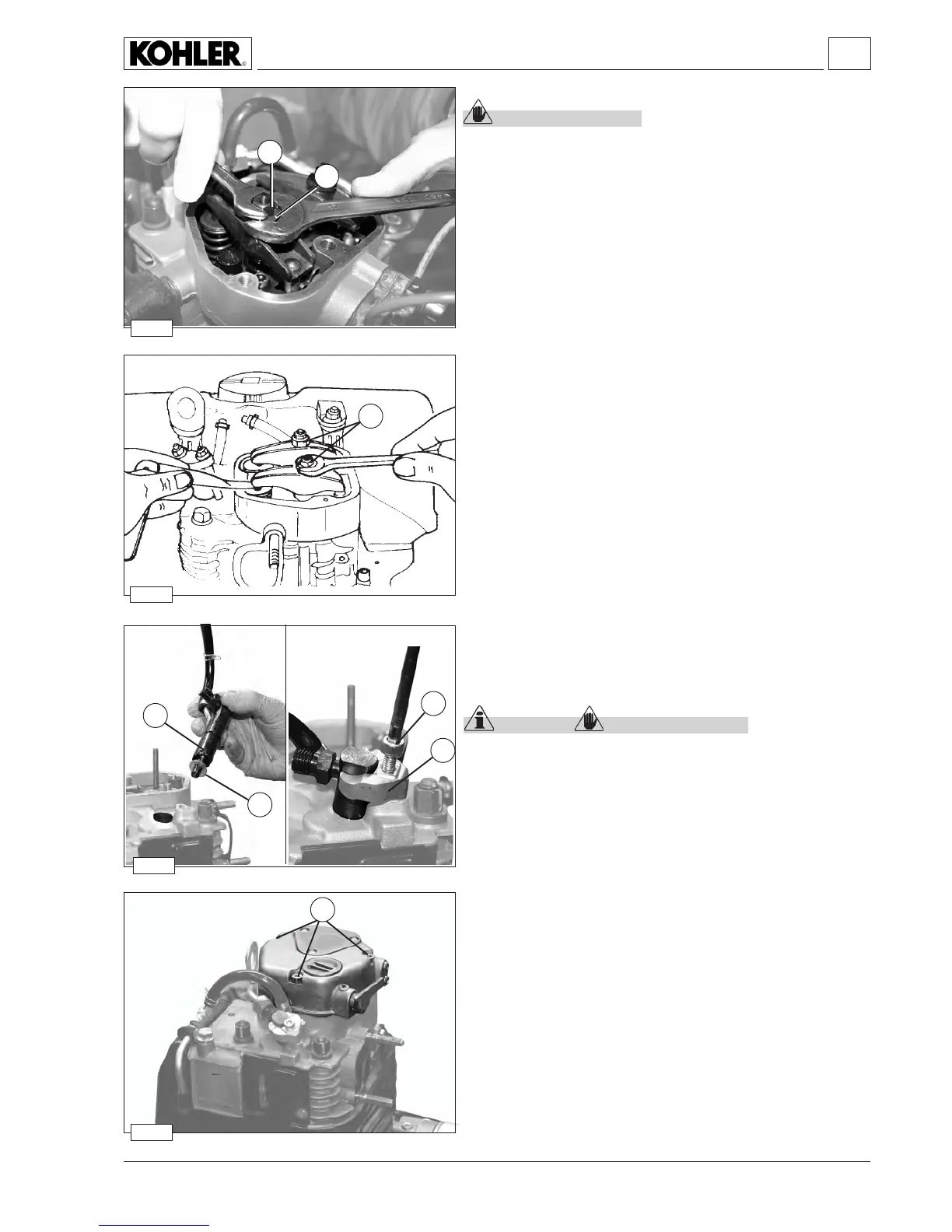

Reassembly
Set clearance at 0.10÷0.15 mm using a thickness gauge.
 Tighten lock nut A at a torque of 7 Nm.
Valve/rocker arm clearance
Caution – Warning
Adjust the valve/rocker arm clearance when the engine is cold.
Turn the engine clockwise and place the piston at the TDC.
Loosen lock nut A while locking lock nut B in its position, as shown in
thegure.
Rocker arm cover
Replace the seal and assemble the rocker arm cover by tightening
the 3 screws A to a torque of 10 Nm.
Injector
Assemble injector C together with copper seal D.
Tighten injector bracket B fastening screw A to the cylinder head to a
torque of 9 Nm.
Important Caution – Warning
The correct protrusion of the spray nozzle from the cylinder
head surface is obtained with copper seal D available in the
following thicknesses: 0.5, 1 and 1.5 mm.
