Kohler RD 441

- 20 -
Workshop Manual KD 441_cod. 1.5302.865_2
nd
ed_ rev. 01.
4
8
9
10
1
2
4
3
5
6
8
8
9
11
10
11
12
13
7

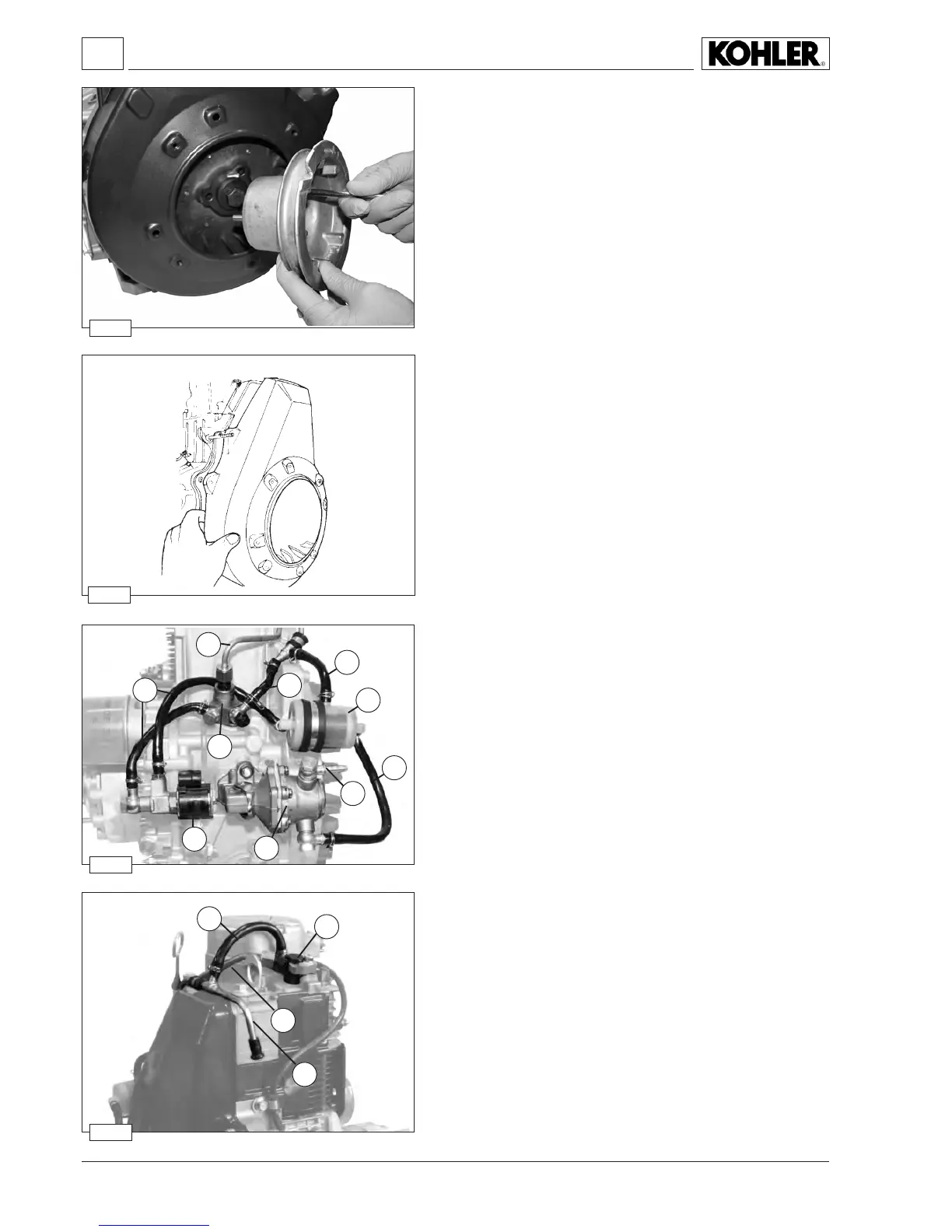

Disassembly
Shroud
Loosen the fastening screws and remove the conveyor.
Whenrettingtightenshroudscrewsto10Nm.
Fuelling/injection circuit
Components:
1  Fuellterreturntube
2  Fuellter
3 Injection pump
4 Injector pump exhaust pipe
5 High pressure line
6 Fuel lift pump
7 Fuel pump suction (to be connected to the tank)
8 Fuel feeding tubes
9 Solenoid valve
10 Injector
11 High pressure line
12 Injector leak-off line
13Mainfueloverowpipe(tobeconnectedtothetank)
Start pulley
Loosen the 3 fastening screws and remove the pulley.
 When reassembling, tighten the screws to 23 Nm.
