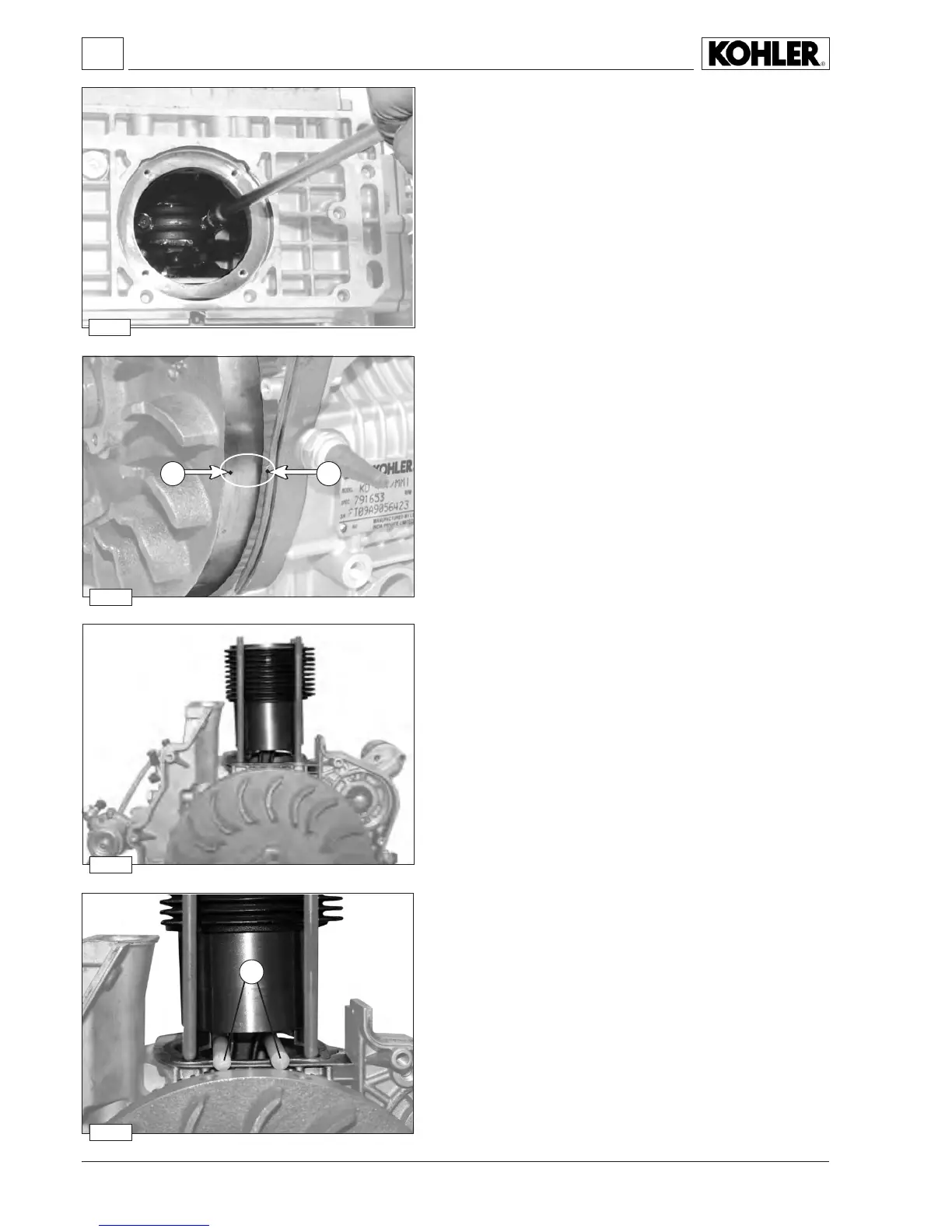

Disassembly
RotatethecrankshafttoT.D.C.position,untilywheelreferenceD is
aligned with C on the crankcase.
Place the piston to the B.D.C..
Loosen the screws of the cap on the connecting rod big end.
In T.D.C. position, the cylinder and the piston will be lifted as shown in
thegure.
Insert the two nylon bars F under the cylinder to prevent the piston from
being lowered.
Rotate the crankshaft to B.D.C. position to disconnect the cap on the
connecting rod big end from the centering pins of the connecting rod.
