9.2.3.1.4 Sine Encoder with SSI (X5, X1)

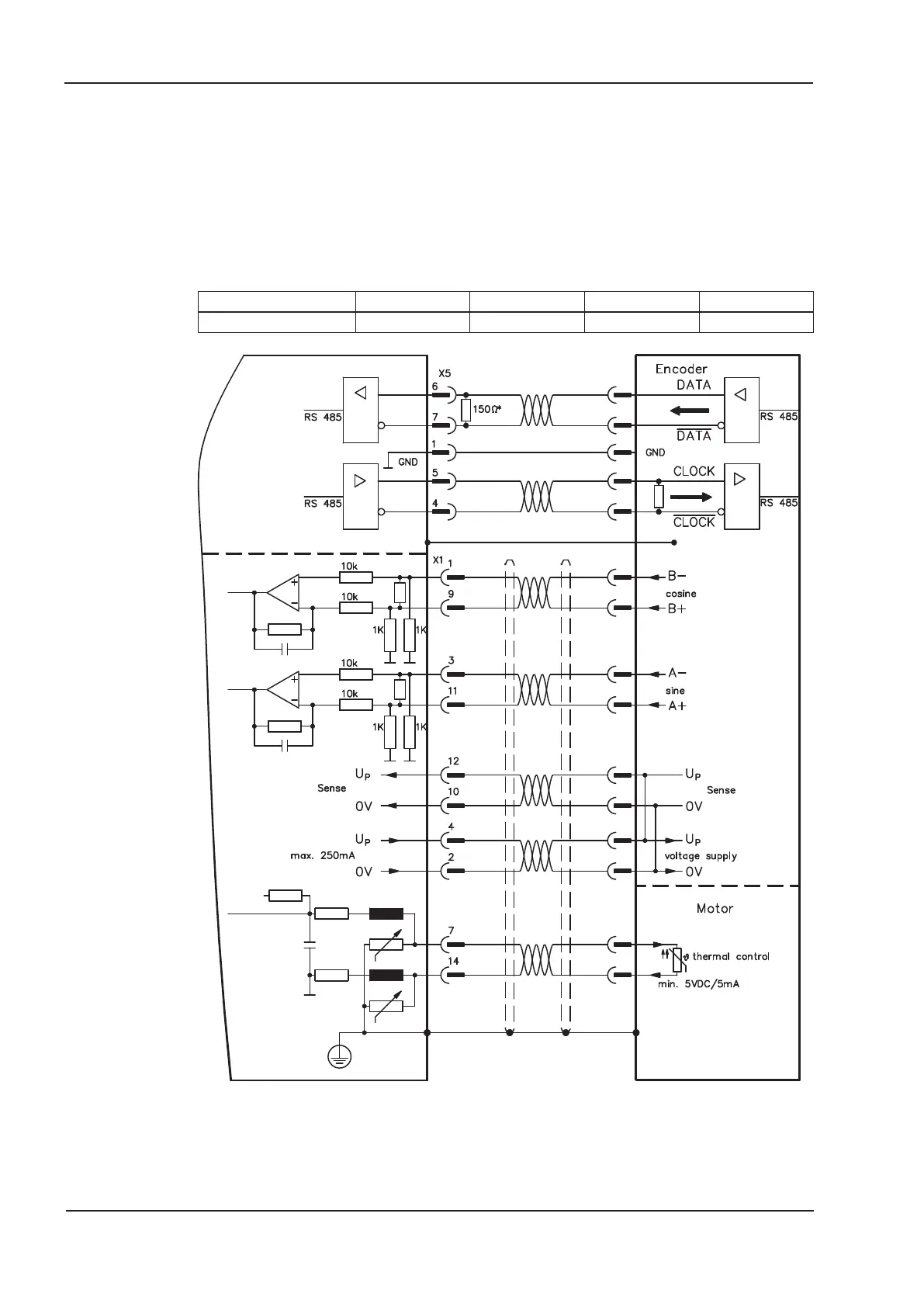

Wiring of sine-cosine encoder with SSI interface as a linear feedback system
(primary, ð p.76).
The thermal control in the motor is connected via the encoder cable to X1 and evaluated
there. All signals are connected using our pre-assembled encoder connection cable. If
cable lengths of more than 50m are planned, please consult our customer service.
Frequency limit (sin, cos): 350 kHz
Type FBTYPE EXTPOS GEARMODE ENCMODE
SinCos SSI 5V linear 28 - - 0
