71
© 2019 Konami Gaming Inc.
P/N 810497 KXP Setup Manual
KMS
SETUP
5.

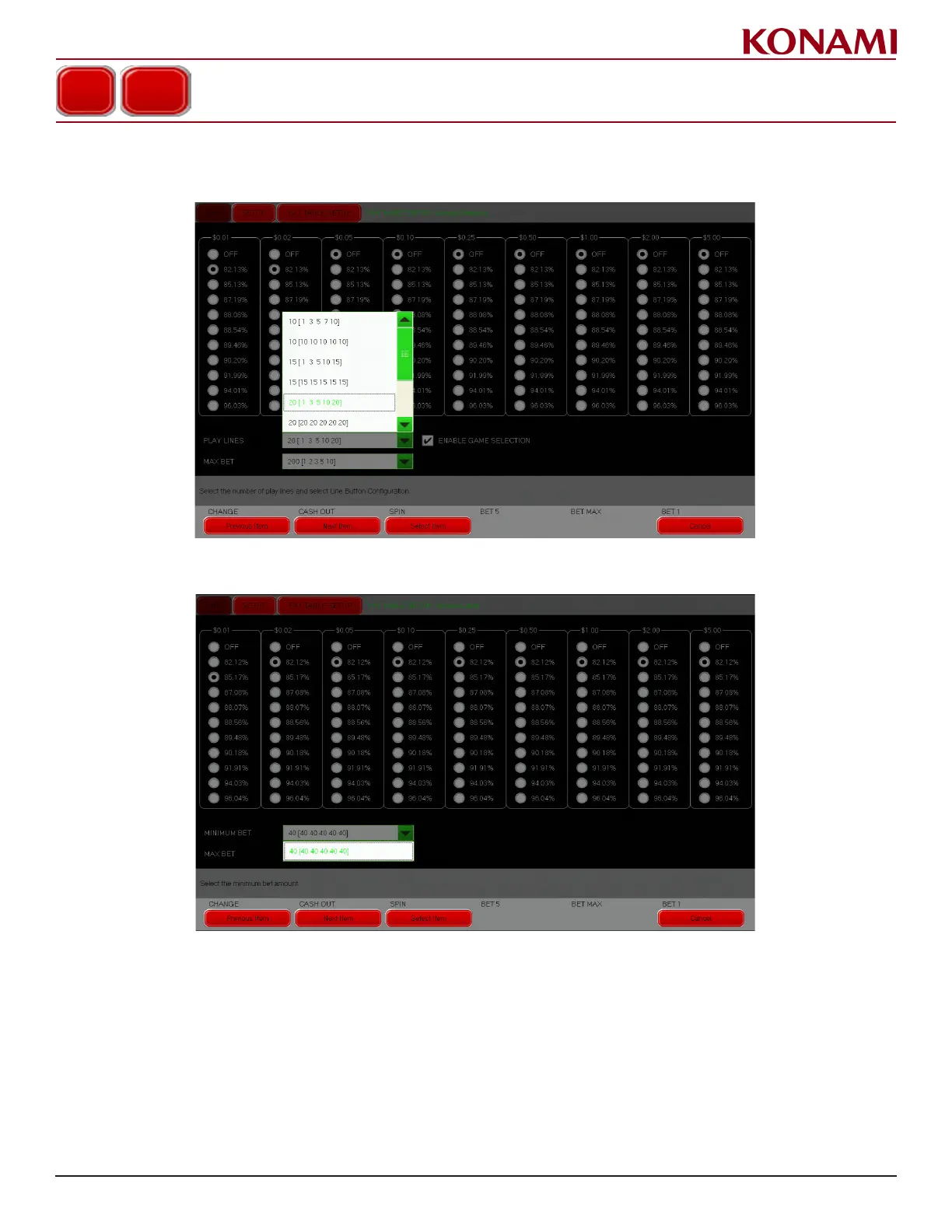

Press the pull down menu button to choose options for the MINIMUM BET and the MAX BET
.
6.
Press the PLA
Y LINES eld (domestic) to enter the selection.
The following screen is displayed.
7.
Select
the
desired
option.
For International
games, this
eld is
called MINIMUM
BET
, as
on following
screen.
8.
Press EXIT to return to the SETUP
menu.
P
A
Y T
ABLE SETUP
73
