Konami KXP - COIN ACCEPTOR DIAGNOSTICS; ACCEPTANCE AND DIVERTER OPTION TOGGLE

86
© 2019 Konami Gaming Inc.P/N 810497 KXP Setup Manual
DIAGNOSTIC
KMS
coin accePtoR

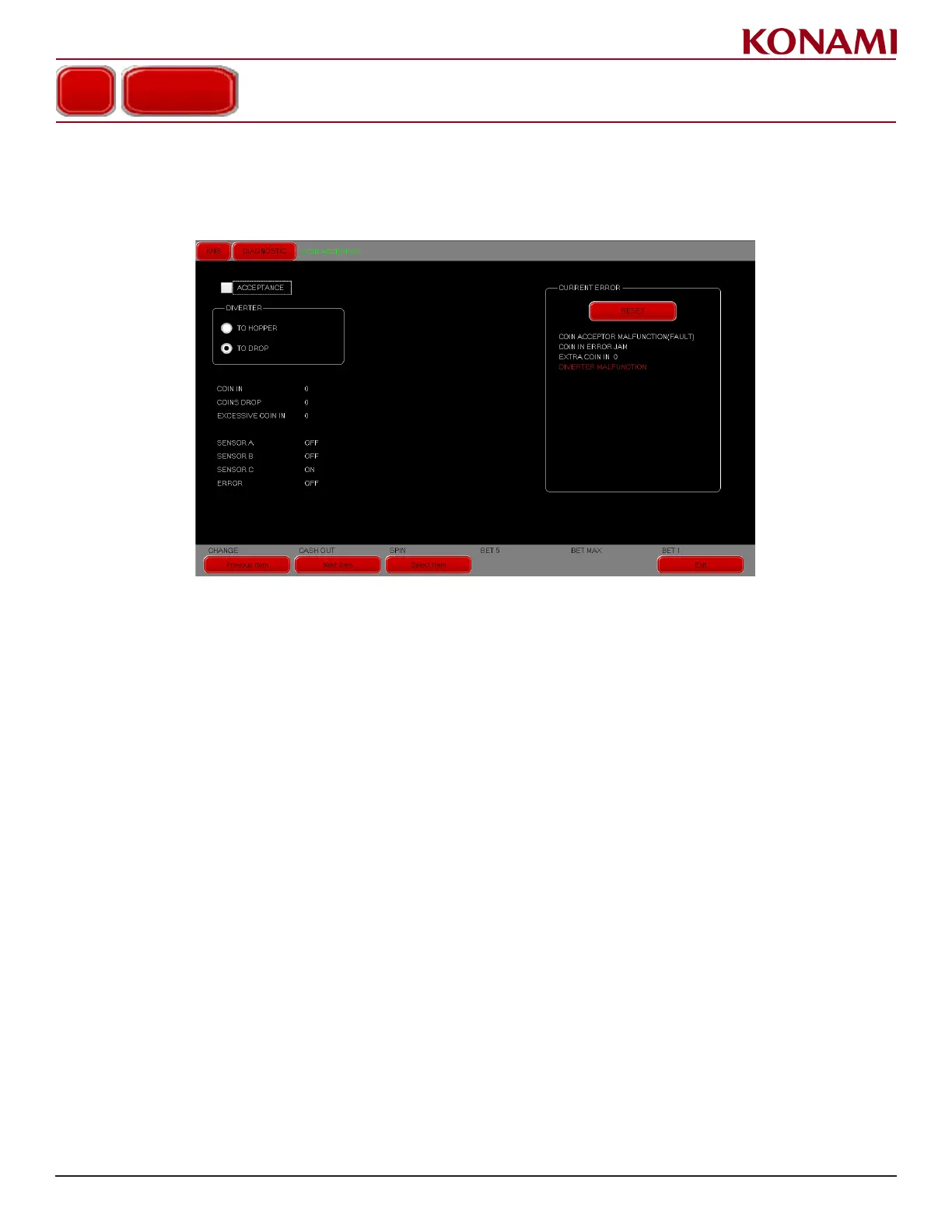

1. Press COIN ACCEPTOR to enter the COIN ACCEPTOR diagnostic screen. The following screen is displayed.
This screen is for checking the COIN COMPARATOR and the COIN DIVERTER operations.
2. Select or deselect the button to enable/disable the ACCEPTANCE or DIVERTER options.
3. To reset the CURRENT ERROR eld, remove any listed error then press RESET.
4. Press EXIT to return to the DIAGNOSTIC menu.
COIN ACCEPTOR
