Konami KXP - OUT PORT DIAGNOSTICS; TOWER LAMP AND BILL LAMP SETTINGS

85
© 2019 Konami Gaming Inc.P/N 810497 KXP Setup Manual
DIAGNOSTIC
KMS
out PoRt

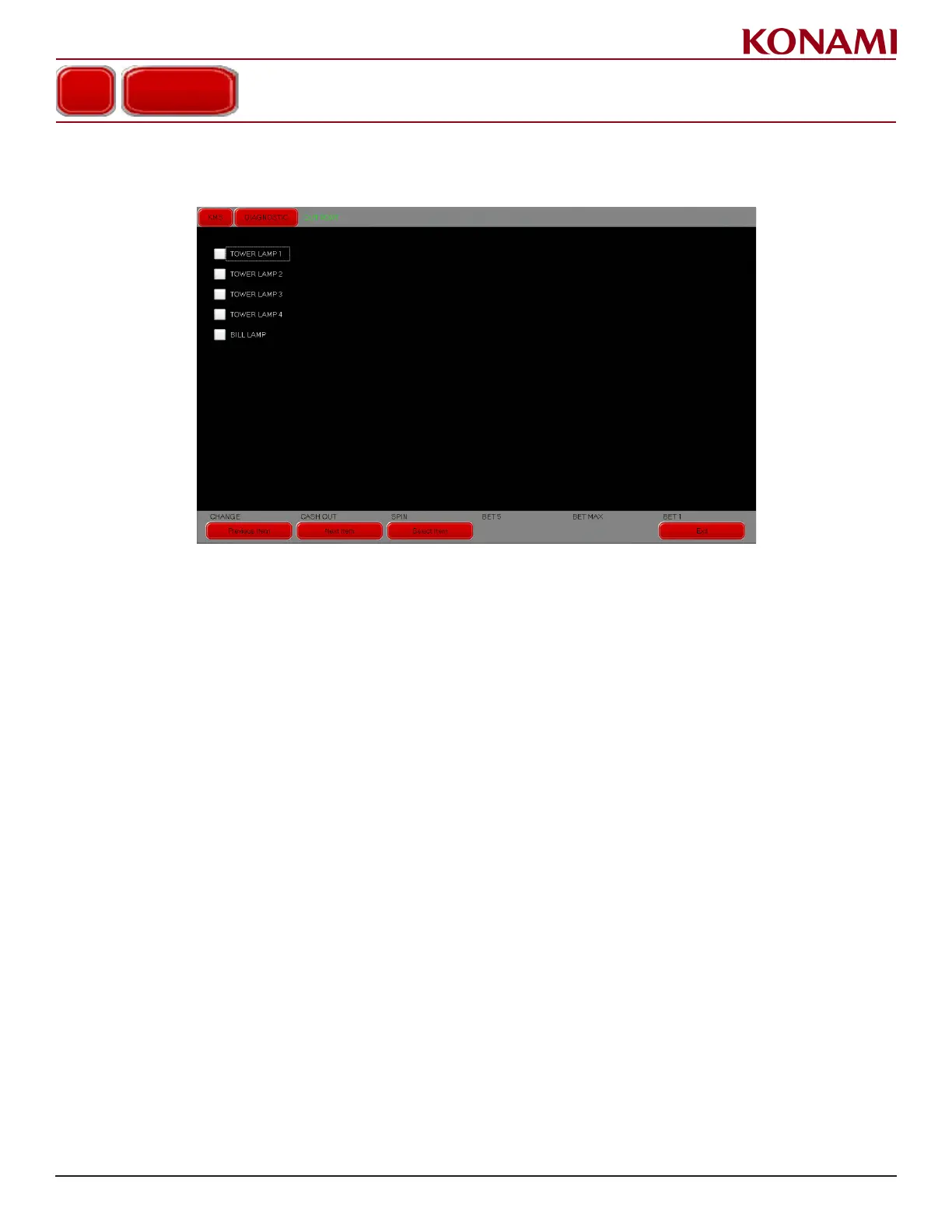

1. Press OUT PORT to enter the OUT PORT diagnostic screen. The following screen is displayed.
2. Select or deselect the button to enable/disable the Tower Lamp and Bill Lamp settings.
3. Press EXIT to return to the DIAGNOSTIC menu.
OUT PORT
