Krone EasyCut 32 P Operating Instructions

Start-up
29
Pos: 17.5 /BA/In betriebnah me/EasyCut/Vorb ereitung am Tr aktor Bild EC 28/32 @ 10\mo d_12217317861 30_78.doc @ 1 36570
AFA-0-003
1
3
2
6
1
5
7
4

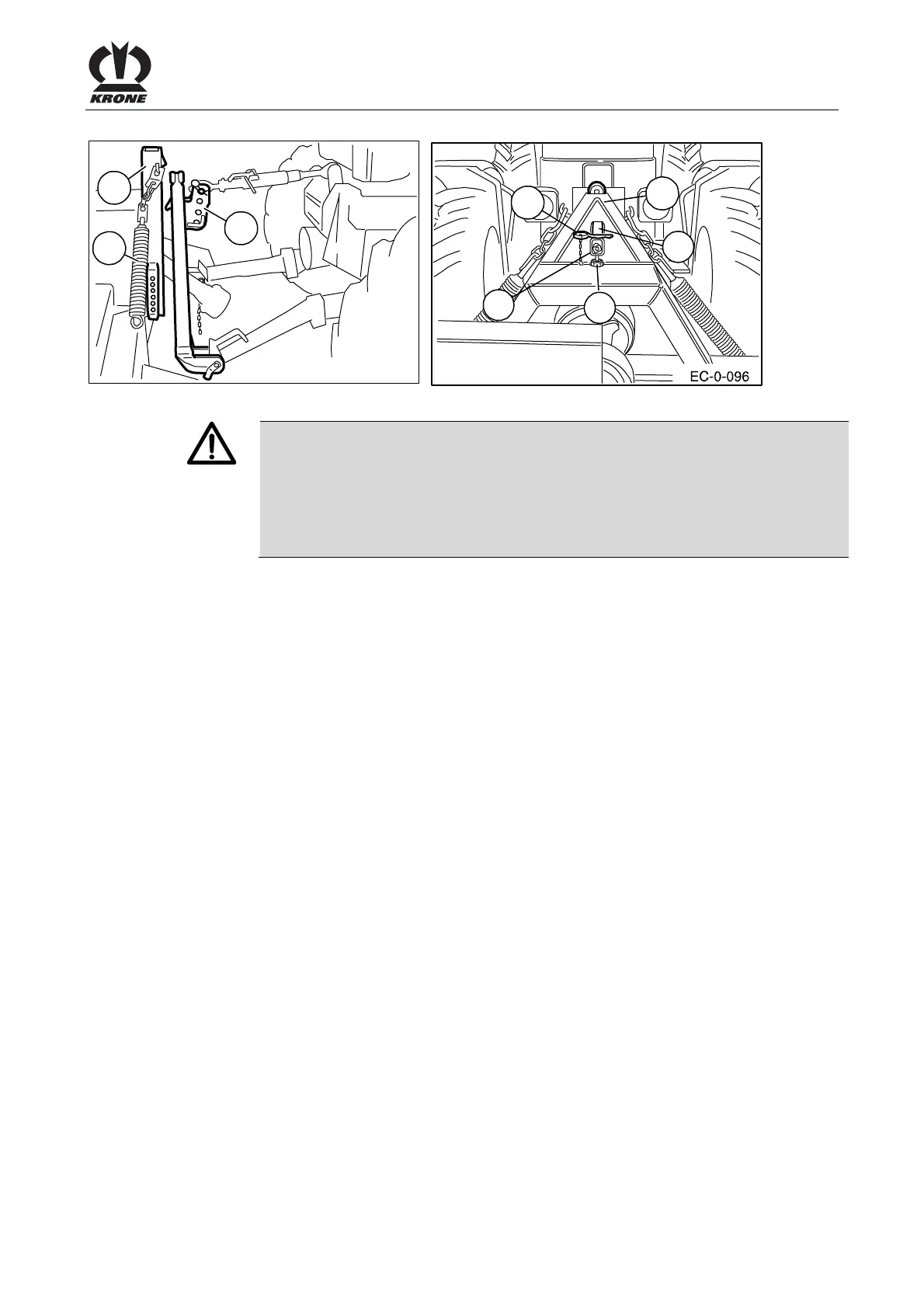

Fig. 9:
Pos: 17.6 /BA/In betriebnah me/EasyCut/Vorb ereitung Acht ung Schutze kommen mit Vord erräder in Berühru ng EC 32CV @ 10\mod_1 22172903789 5_78.doc @ 1 36299
Caution!
Increase the distance between the machine and the tractor
Effect: Damage to the tractor or the machine
If the guards come into contact with the front wheels of the tractor, lower
suspension arm adapters can be installed between the lower suspension arm
and the Weiste triangle.
Pos: 17.7 /BA/In betriebnah me/EasyCut/Vorb ereitung am Tr aktor EC 28/3 2CV 28/32 @ 10\ mod_122172 8655208_78.doc @ 136257
• Carefully position the tractor with Weiste triangle (2) in front of the holder (1) of the front-
mounted disc mower.
• The tension spring (3) must not be inside the holder
• Connect the Weiste triangle (2) to the holder (1)
• Set the distance between the ratchet mechanism (4) and latch (5) by adjusting the ratchet
mechanism (4) to 1 mm (using the adjusting screw (7))
• Secure Weiste triangle (2) with spring cotter pin (6).
