Maintenance
61
Pos: 27.27.22 /Ü berschriften/Ü berschriften 3/K- O/Messerschr aubverschluß @ 0\mod_11 97270941296_7 8.doc @ 1657 8
10.10.1 Blade Screw Connection
Pos: 27.27.23 / BA/Wartung/Mäh werke/Beschr eibung Messer wechsel Mess erschraubversc hluss @ 0\mo d_119727019 7046_78.doc @ 16559
EC-0-250

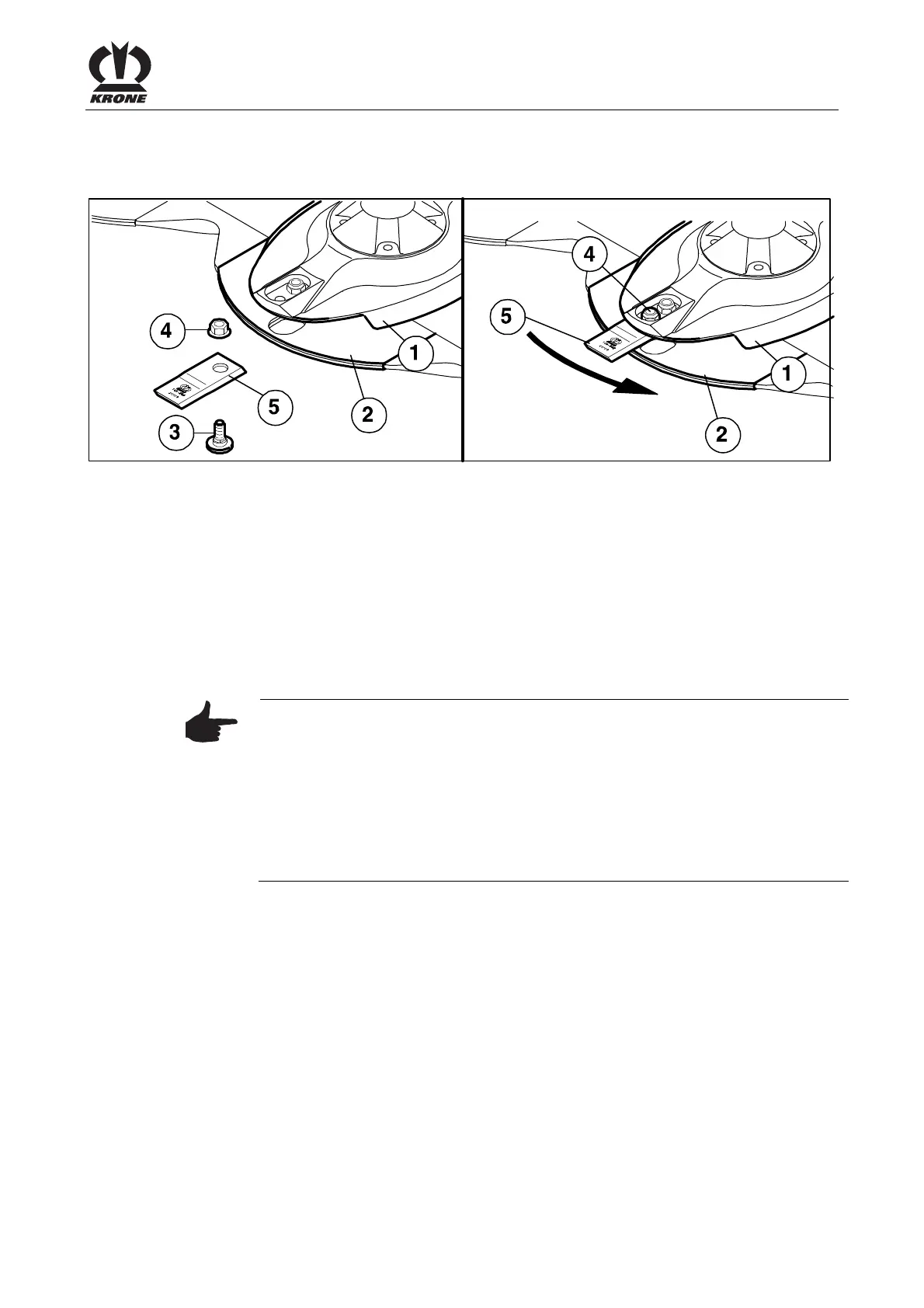

Fig. 32:
• Clean the area.
• Remove damaged or worn blades.
• To fit the blades, insert the blade (5) between the wear plate (2) and the cutting disc (1).
• Insert the retaining bolt (3) from below through the wear plate, the blade and the cutting
disc.
• Place the hex nut (4) on the retaining bolt from above and tighten it firmly. (for tightening
torque see chapter entitled "Torques")
• Repeat this process for all blades, even on the blade drums.
• After fitting the blades, fold the protective device down again.
Note
• The cutter blades of anticlockwise rotating cutting discs / blade drums
are different than those of clockwise rotating ones. Make certain the
direction of rotation is correct when installing!
• The arrow on the cutter blades must match the direction of rotation of
the corresponding cutting discs / blade drums.
• The hex nut (4) used to secure the retaining bolts must not be used
more than once.
Order No. for clockwise rotating blade: 139-889
Order No. for anticlockwise rotating blade: 139-888
