Maintenance
50
Pos: 27.21.1 /Üb erschriften/Üb erschriften 2/U-Z/ Winkelgetrie be @ 0\mod_1 197005918299_ 78.doc @ 154 35
10.6 Angular gearbox
Pos: 27.21.2 /Üb erschriften/Üb erschriften 3/F-J/ Frontmähw erk (CV+CRI) @ 0\mod_11970 08615440_78.d oc @ 15609
10.6.1 Front Mowing Unit (CV+CRI)
Pos: 27.21.3 /B A/Wartung/Öl kontrolle_Wechsel/M ähwerke/ Bild Winkelgetrie be EC 28/32 @ 10\mod_122 1740931598_78. doc @ 13712 9
AFA-0-016
1

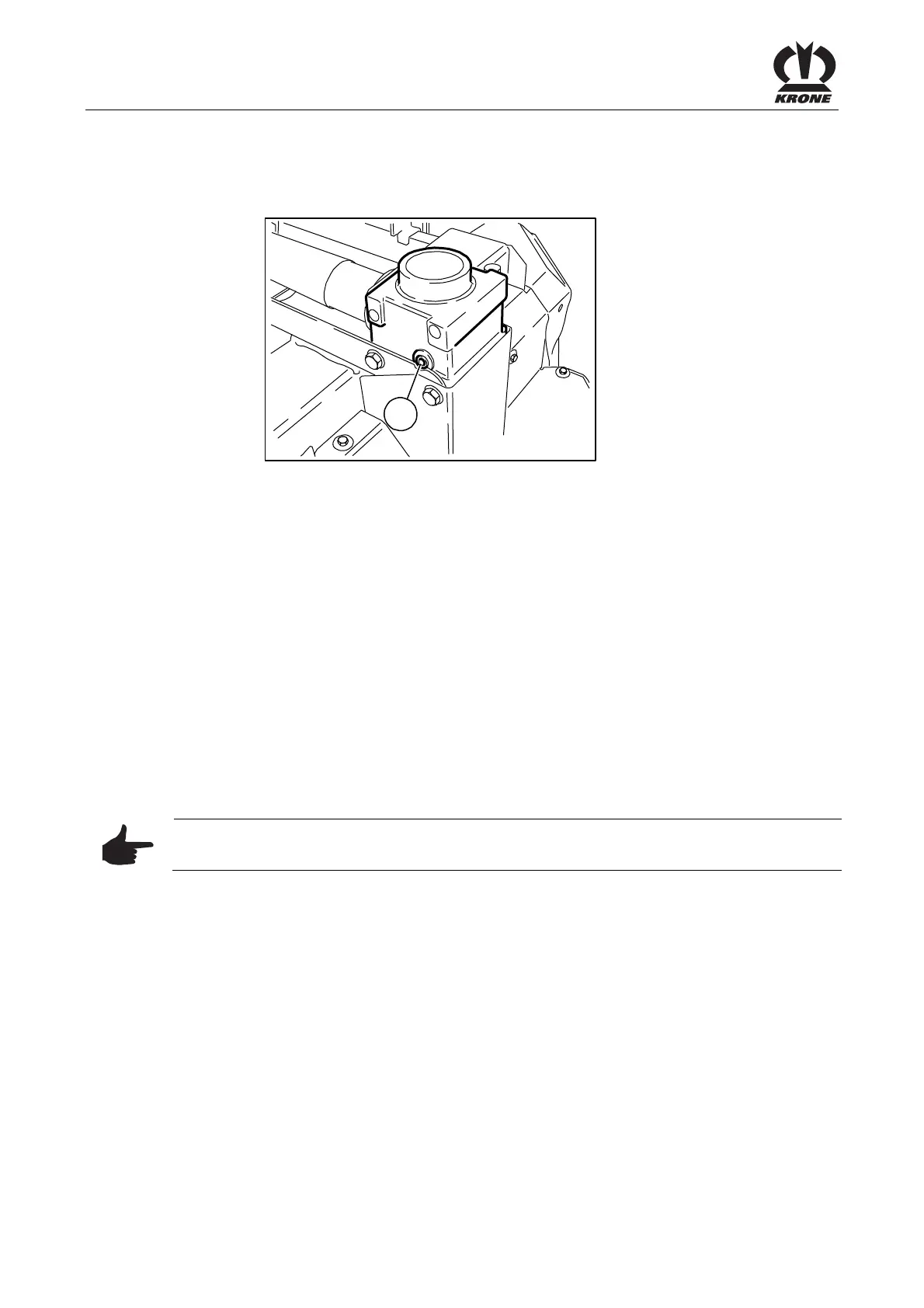

Fig. 22:
Pos: 27.21.4 /B A/Wartung/Öl kontrolle_Wechsel/ Ölkontrolle S AE 90 @ 0\ mod_1197008973 815_78.doc @ 15649
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Oil level up to bore hole (1)
• If necessary, top up the oil (SAE 90)
• Screw the check screw (1) back in.
Pos: 27.21.5 /B A/Wartung/Öl kontrolle_Wechsel/ Ölwechsel Version absaug en @ 10\mod_1 221740650161 _78.doc @ 13 7085
Oil change:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Extract oil
• Top up oil (oil level up to hole (1))
• Screw the inspection screw (1) back in.
Pos: 27.21.6 /B A/Wartung/Öl kontrolle_Wechsel/ Ölqualität /Ölm enge: sieh e Kapitel @ 0\ mod_1197007 859486_78.doc @ 15531
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 27.21.7 /B A/Wartung/Öl kontrolle_Wechsel/ Altöl ordnung sgemäß entsorg en @ 0\m od_1197008117 002_78.doc @ 1 5550
Note
The used oil must be disposed of correctly
Pos: 27.22 /BA/-- ---Seitenum bruch------ @ 0\m od_119617531 1226_0.doc @ 4165
