10.8 Oil level check and oil change on the cutter bar
Pos: 27.25.2 /B A/Sicherheit/Ge fahrenhinweise /Mähwerke/Sc hnell rotierend e Messerteller/M essertro mmeln_1 @ 0\mod _1197017696 736_78.doc @ 1 6001
Danger!
Rapidly rotating cutting discs/blade drums.
Effect: Danger to life or serious injuries.
• Switch off the engine and remove the ignition key.
• The cutting discs/blade drums continue to run!
• Do not leave the driver’s cab until the cutting discs/blade drums have
come to a complete stop.
Pos: 27.25.3 /Üb erschriften/Üb erschriften 3/K-O/M ähholm ausric hten @ 0\m od_119701 7956815_78.doc @ 16042
10.8.1 Aligning the Cutter Bar
Pos: 27.25.4 /B A/Wartung/Mäh werke/Mähhol m ausrichten E asyCut @ 3\m od_1204721803 648_78.doc @ 72358

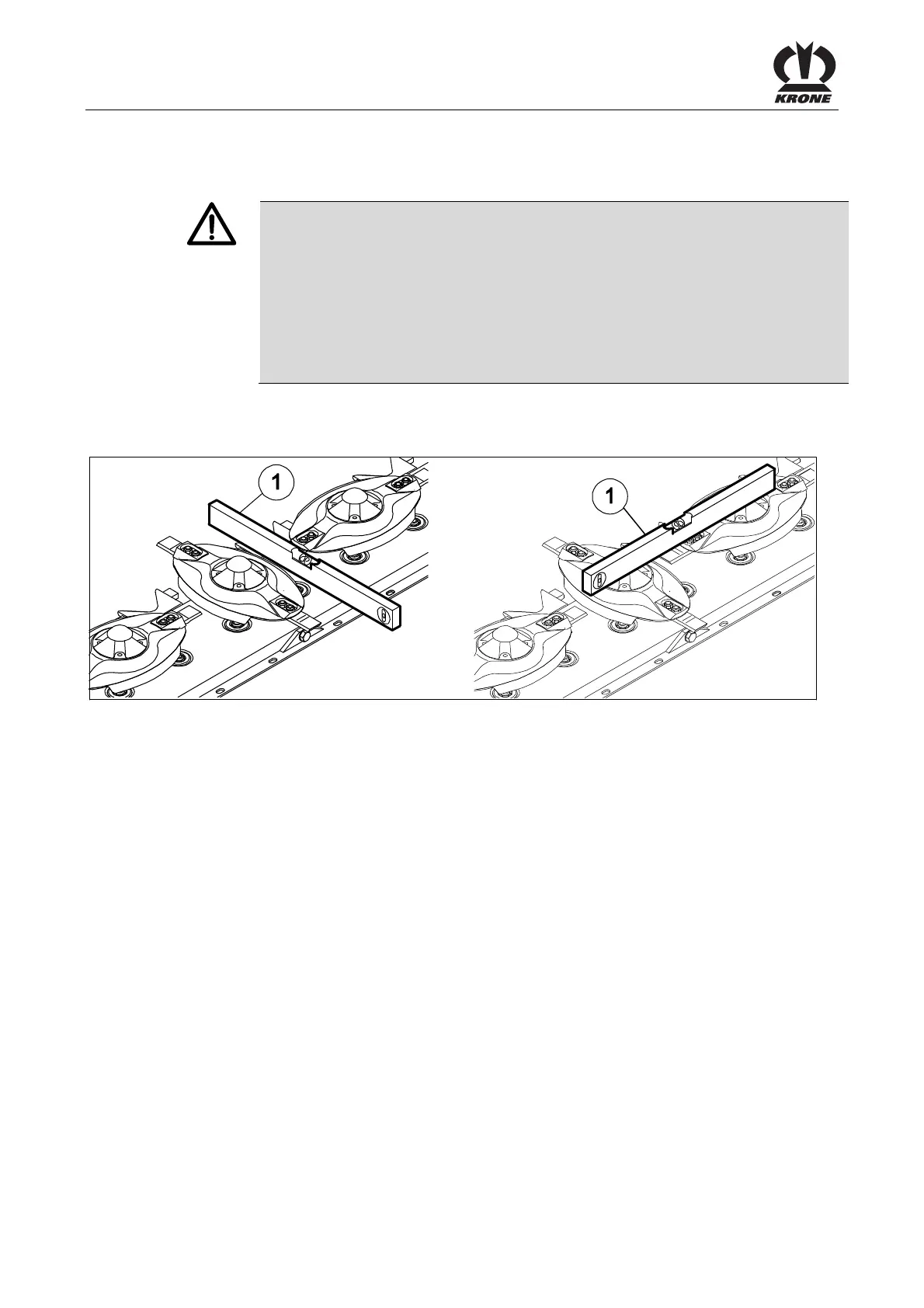

EC-0-001
Fig. 24:
Oil level check
• Align the cutter bar using a spirit level (1).
Crosswise
• Lay the spirit level on top of the cutting disc hub parallel to the direction of travel.
Lengthwise
• Lay the spirit level (1) on top of two mower discs.
