Maintenance
51
Pos: 27.23.1 /Üb erschriften/Üb erschriften 2/K-O/M äherantri ebsgetriebe @ 9 \mod_122104 5800746_78. doc @ 131475
10.7 Mower Drive Gearbox
Pos: 27.23.2 /A bkürzungen /Ab kürzungen spr achneutral/E asyCut/Eas yCut 28 M @ 10\m od_1221658268 900_0.doc @ 1 36051
(EasyCut 28 M)
Pos: 27.23.3 /B A/Wartung/Öl kontrolle_Wechsel/M ähwerke/ Bild Mäherantri ebsgetriebe EC 28/32 @ 10\m od_122174150 9333_78.doc @ 137196
EC-227-0

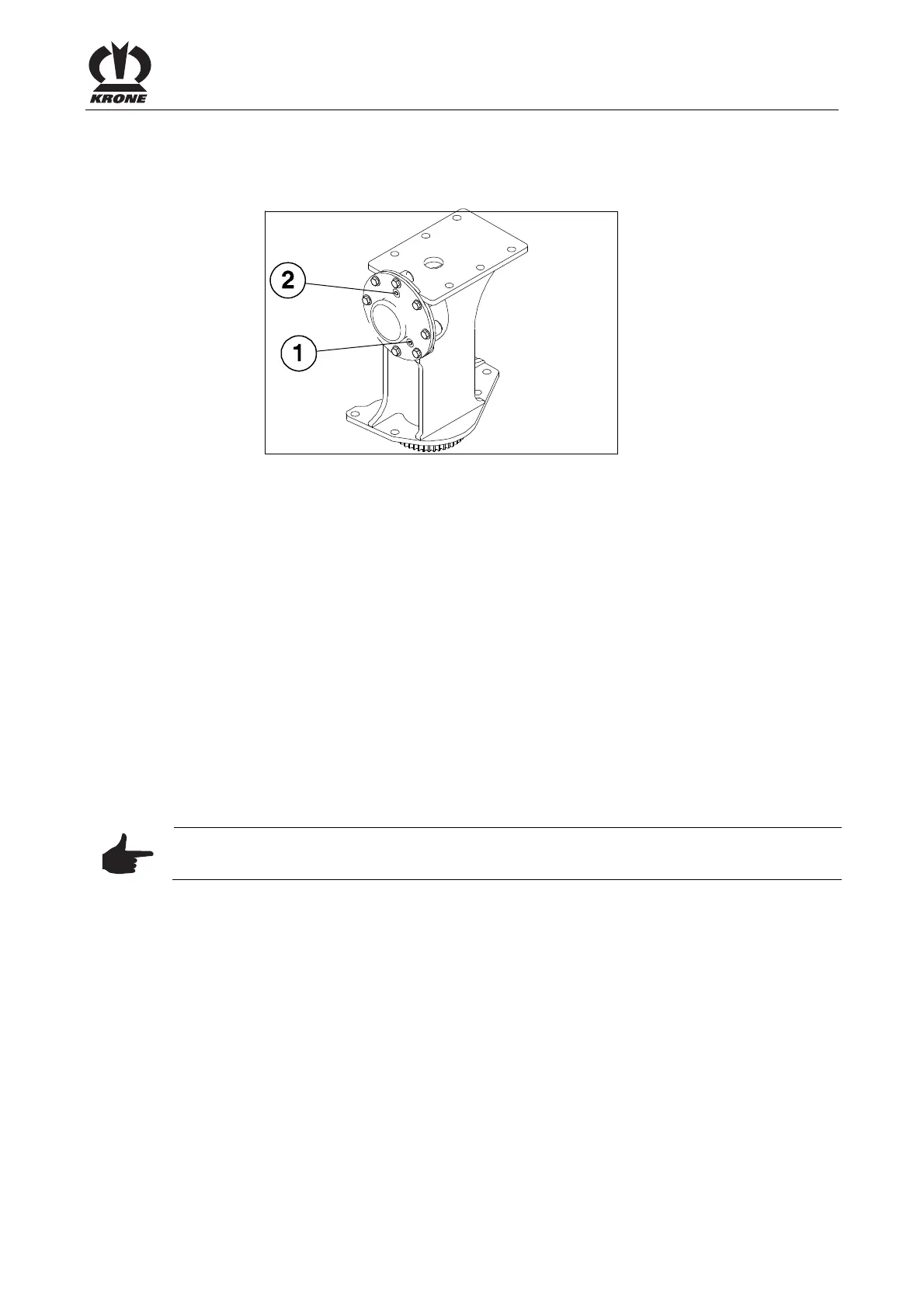

Fig. 23:
Pos: 27.23.4 /B A/Wartung/Öl kontrolle_Wechsel/ Ölkontrolle S AE 90 @ 0\ mod_1197008973 815_78.doc @ 15649
Oil level check:
For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
Unscrew the inspection screw (1)
Oil level up to bore hole (1)
If necessary, top up the oil (SAE 90)
Screw the check screw (1) back in.
Pos: 27.23.5 /B A/Wartung/Öl kontrolle_Wechsel/ Ölwechsel Version5 @ 9\ mod_12210470 52043_78.doc @ 131562
Oil change:
For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
Screw out the oil drain plug (1)
Collect the used oil in a suitable drip pan
Screw in the oil drain plug (1)
Top up the oil (2) (oil level up to hole (1))
Pos: 27.23.6 /B A/Wartung/Öl kontrolle_Wechsel/ Ölqualität /Ölm enge: sieh e Kapitel @ 0\ mod_1197007 859486_78.doc @ 15531
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 27.23.7 /B A/Wartung/Öl kontrolle_Wechsel/ Altöl ordnung sgemäß entsorg en @ 0\m od_1197008117 002_78.doc @ 1 5550
Note
The used oil must be disposed of correctly
