Maintenance
62
Pos: 27.27.25 /Ü berschriften/Ü berschriften 3/K- O/Messersch nellverschluß @ 0\mod_119 7271019859_ 78.doc @ 165 97
10.10.2 Blade Quick-Fit Device
Pos: 27.27.26 / BA/Wartung/Mäh werke/Beschr eibung Messer wechsel Mess erschnellversc hluss @ 0\ mod_119727110050 0_78.doc @ 1 6616
EC-251-0
3
4
2
5

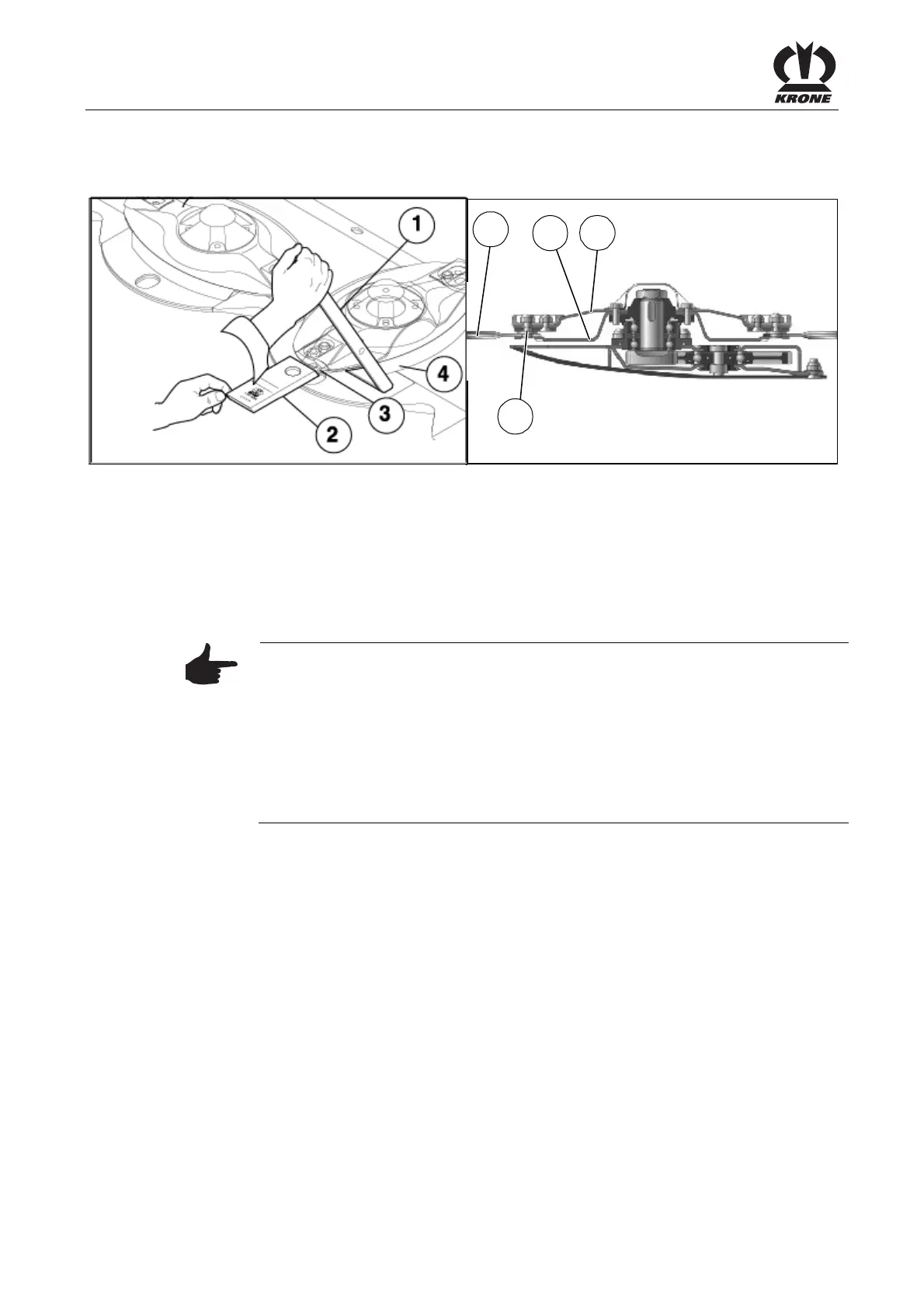

Fig. 33:
Clean the area.
Remove damaged or worn blades.
Push the special tool (1) {blade key} between the cutter disc (4) and leaf spring (3) and
press down with one hand.
Guide a new blade (2) onto the retaining bolt and allow the blade key to return upwards.
After fitting the blades, fold the protective device down again.
Note
The cutter blades of anticlockwise rotating cutting discs / blade drums
are different than those of clockwise rotating ones. Make certain the
direction of rotation is correct when installing!
The arrow on the cutter blades must match the direction of rotation of
the corresponding cutting discs / blade drums.
The hex nut (4) used to secure the retaining bolts must not be used
more than once.
Order No. for clockwise rotating blade: 139-889
Order No. for anticlockwise rotating blade: 139-888
