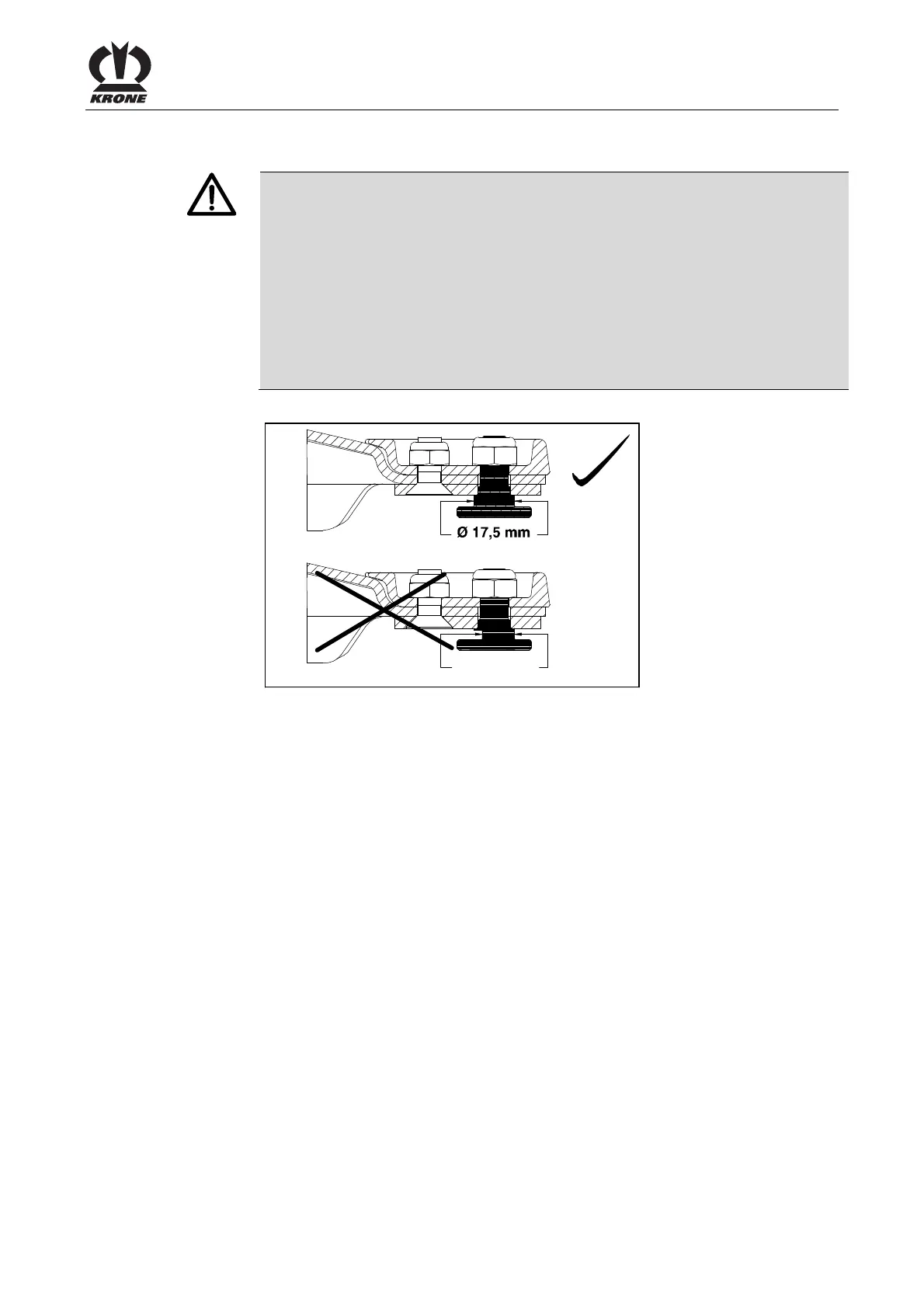

10.9.2 Blade screw connection
Danger!
Insufficient thickness of material on the retaining bolts.
Effect: Danger to life or serious injuries.
• At every blade changing check the thickness of the holding bolts
material.
• Damage or worn retaining bolts must always be replaced by sets on
each cutting disc/blade drum!
• The material thickness of the retaining bolts must not be less than 14
mm at the weakest point.
EC-240-0
min. 14 mm
Fig. 27:
