Settings
43
Pos: 23.15 /Üb erschriften/Üb erschriften 2/A-E/ Einstellen der Schnitthöhe @ 0\mod_119 6660879619_78.d oc @ 9191
9.3 Adjusting the cutting height
Pos: 23.16 /BA/Ei nstellungen/M ähwerke/Schnitt höhe/Schnitth öhe Bild EC 2 8/32 @ 10\mod _12217388038 64_78.doc @ 136972
AFA-0-012
1
Fig. 19:
Pos: 23.17 /BA/Ei nstellungen/M ähwerke/Schnitt höhe/Schnitth öhe größer_geri nger @ 0\mo d_119666156 2478_78.doc @ 9269

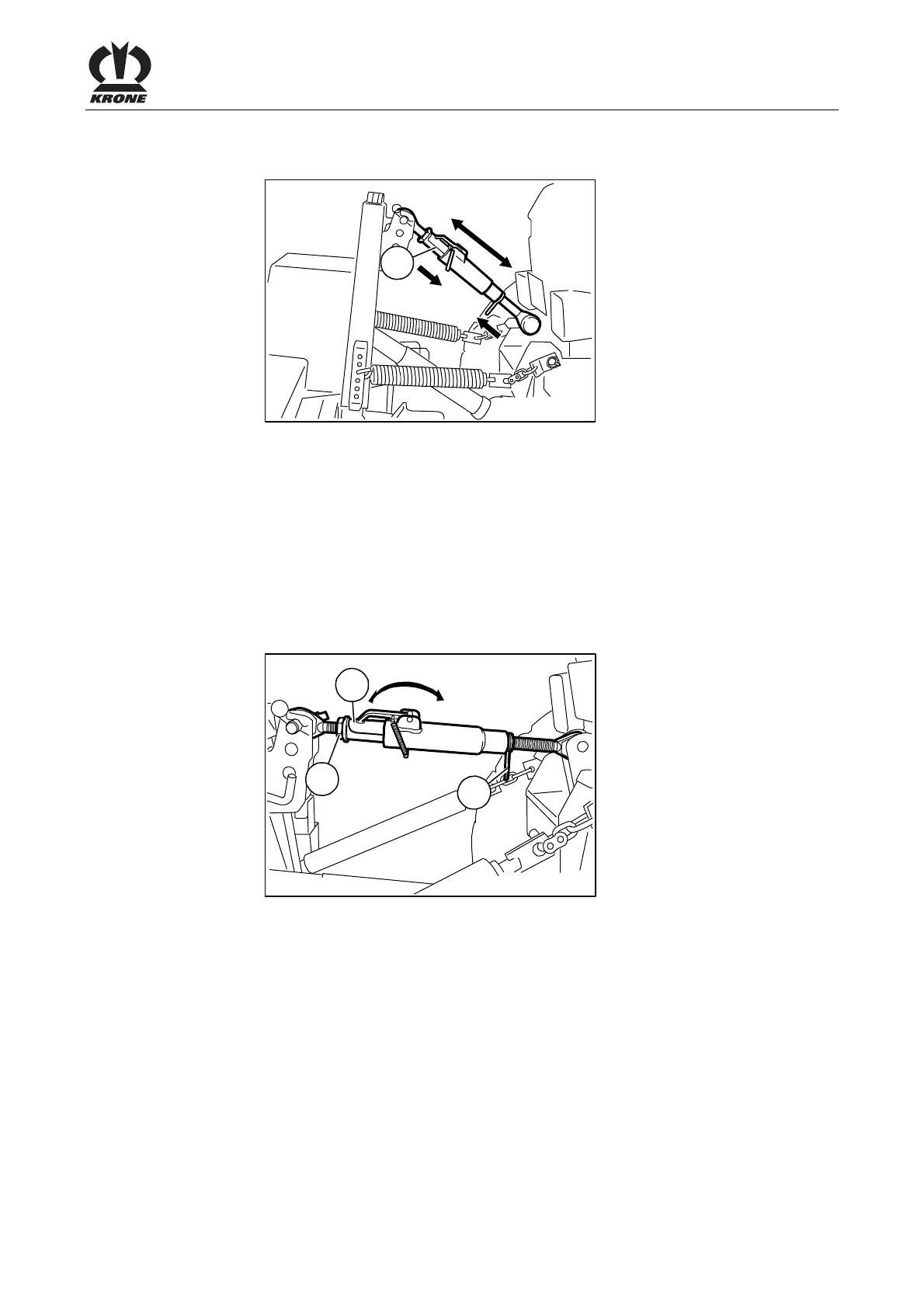

The cutting height is adjusted via the top link (1).
To do this:
Lower the front mowing unit into working position
Rotate the top suspension arm (1)
Top suspension arm longer = smaller cutting height
Top suspension arm shorter = bigger cutting height
Pos: 23.18 /BA/Ei nstellungen/M ähwerke/Teles kopoberlen ker @ 3\mod_120 4708776180_ 78.doc @ 718 35
9.3.1 Telescopic upper suspension arm
AFA-0-020
3
1
2
Fig. 20:
In order to allow the front-mounted disc mower to adapt to the ground in the direction of travel, a
telescopic upper suspension arm can be purchased as optional additional equipment. Via the
telescopic upper suspension arm, the cutting height is set by loosening the counter nut (2) and
(3). By moving the lockclip (1), the compression spring of the telescopic upper suspension arm
is released. This guarantees optimum adaptation of the front mowing unit in the direction of
travel.
