9.4 Setting of the V-belt Tension
(except EC 28 M)
EC-0-008

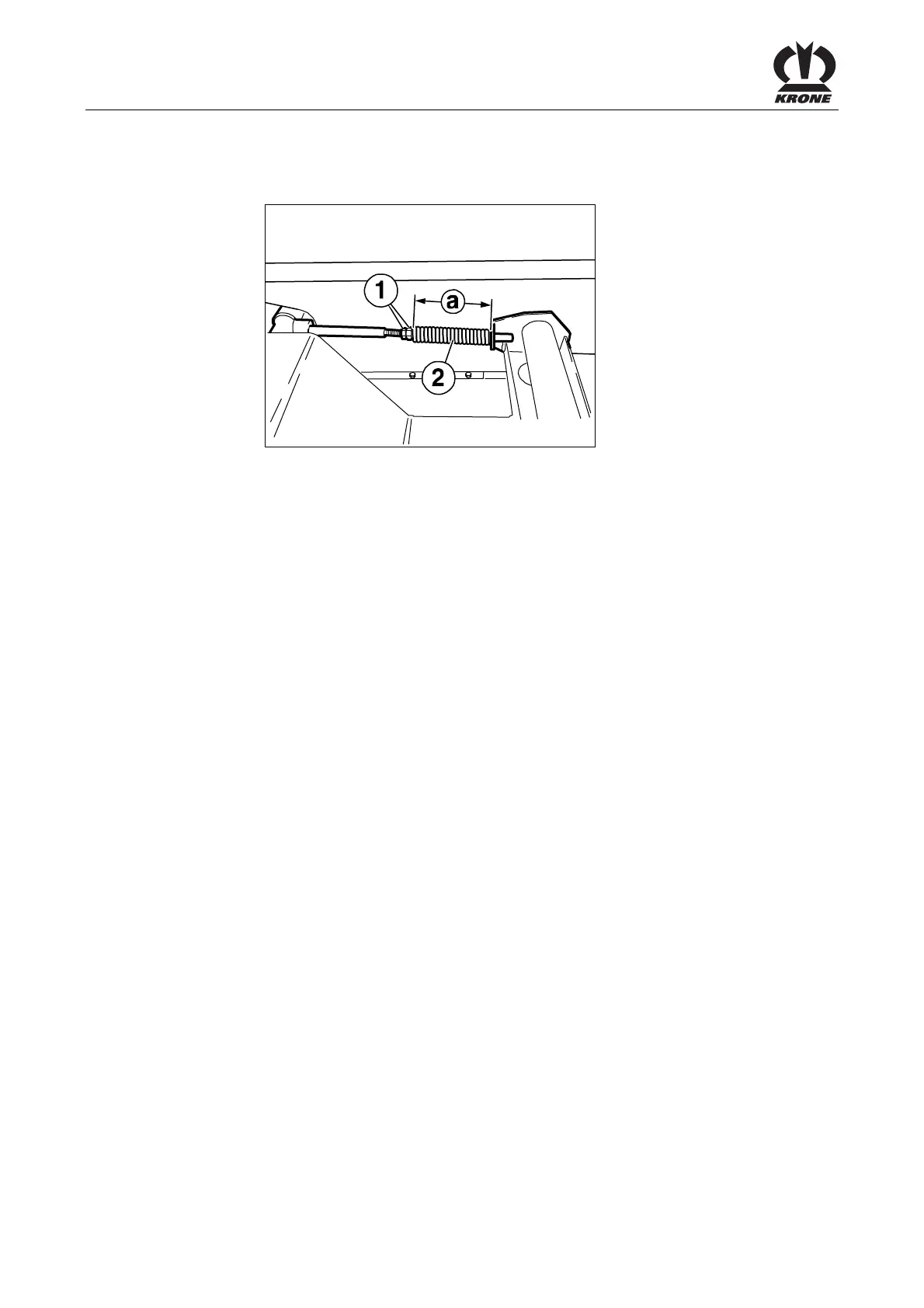

Fig. 21:
The drive V-belts maintain their tension by means of a compression spring (2). To adjust
dimension "a", unscrew the nut (1). Turn the nuts until dimension "a" = 205 mm is reached. Lock
nuts again.
