Maintenance
56
Pos: 27.27.10 / BA/Wartung/Mäh werke/Mess erschnellverschlus s @ 0\mod _119726808787 5_78.doc @ 1 6444

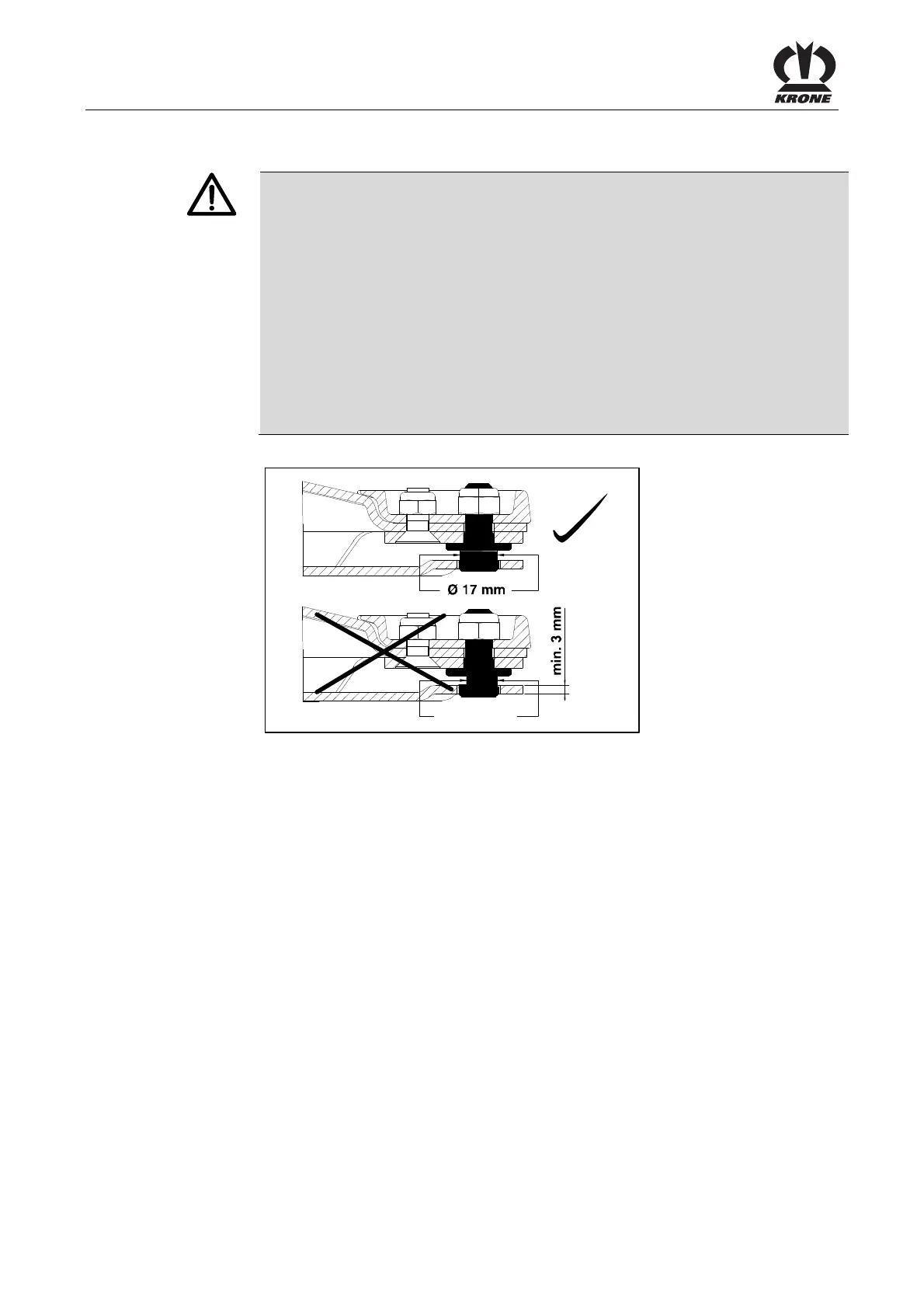

10.9.3 Blade Quick-Fit Device
Danger!
Insufficient thickness of material on the retaining bolts.
Effect: Danger to life or serious injuries.
• At every blade changing check the thickness of the holding bolts
material.
• Damage or worn retaining bolts must always be replaced by sets on
each cutting disc/blade drum!
• The material thickness of the retaining bolts must not be less than 14
mm at the weakest point.
• The material thickness of the leaf spring must not be less than 3 mm at
the weakest point.
EC-239-0min. 14 mm
Fig. 28:
