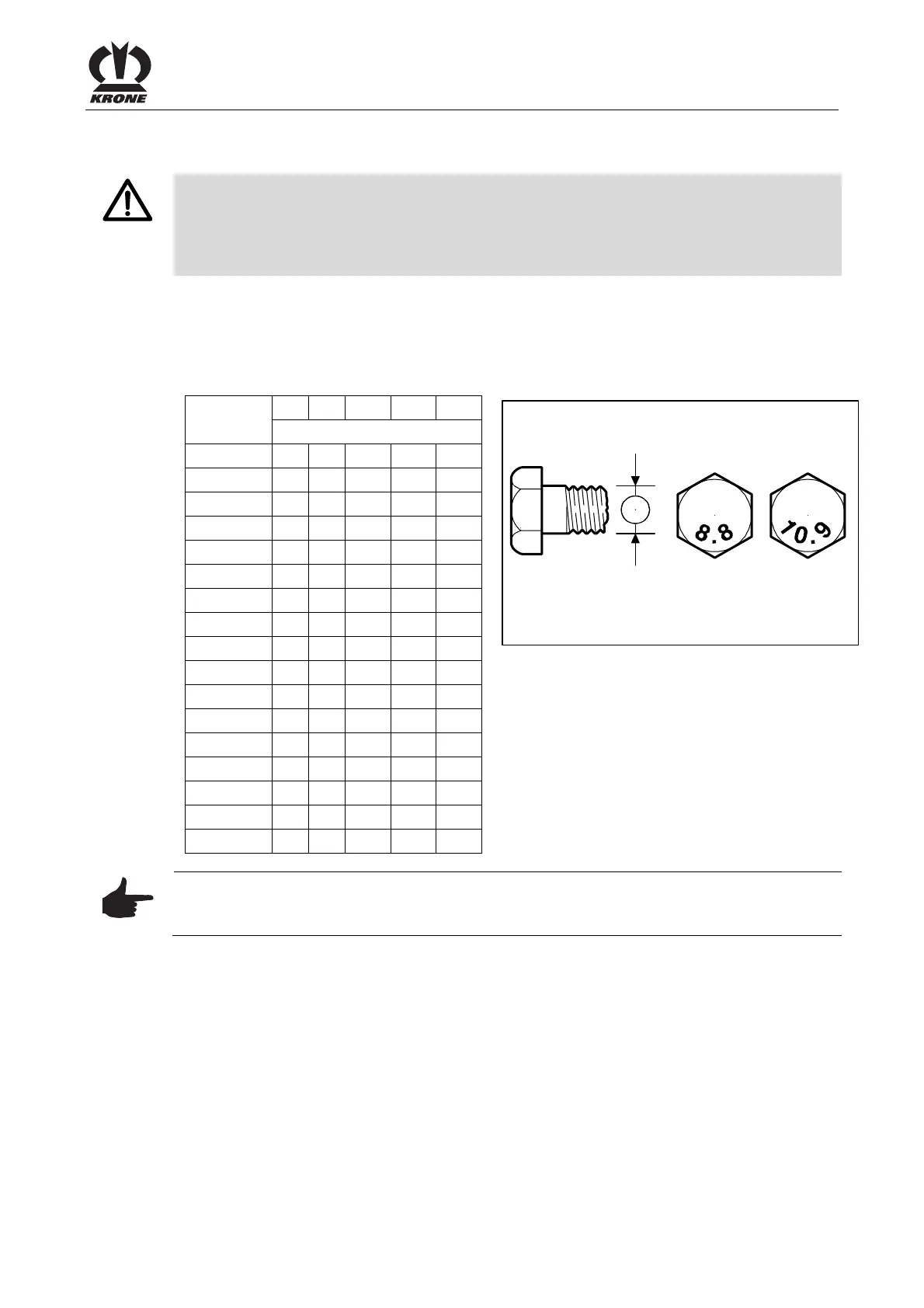

Krone EasyCut 32 P Operating Instructions

Maintenance
47
Pos: 27.8 /Übersc hriften/Übersc hriften 2/A-E/Ers atzteile @ 0 \mod_1196782 991234_78. doc @ 14927
10.2 Spare Parts
Pos: 27.9 /BA/Sich erheit/Gefahr enhinweise/M ähwerke/Ver wendung von nic ht zugelassene n Ersatzteilen @ 0\mod_11 96783037140 _78.doc @ 1494 6
Danger! - Using non-approved spare parts.
Effect: Danger to life, serious injuries or loss of warranty claims as well as exclusion of liability
• Use only authentic KRONE spare parts and accessories authorised by the manufacturer.
The use of spare parts, accessories or additional equipment not manufactured, tested or
approved by KRONE will exclude any liability for consequential damage.
Pos: 27.10 /BA/ Wartung/Dreh momente / Anzugs momente/Dr ehmomente @ 14\mod_1227 524875870_7 8.doc @ 1694 35
10.3 Torques
Tightening torque M A is stated in Nm
(unless otherwise indicated).
A = Thread size
(The stability class can be seen on the head of the
screw.)
A
Ø
5.6 6.8 8.8 10.9 12.9
MA (Nm)
M 4
2.2 3 4.4 5.1
M 5
4.5 5.9 8.7 10
M 6
7.6 10 15 18
M 8
18 25 36 43
M 10
29 37 49 72 84
M12
42 64 85 125 145
M14
100 135 200 235
M14x1.5
145 215 255
M 16
160 210 310 365
M16x1.5
225 330 390
M 20
425 610 710
M 24
730 1050 1220
M 24x1.5
350
M 24x2
800 1150 1350
M 27
1100 1550 1800
M 27x2
1150 1650 1950
M30
1450 2100 2450
A
KR-1-130
Note
The table above does not apply to countersunk screws with a hexagonal socket head if the
countersunk screw is tightened with the hexagonal socket head.
