Settings
42
Pos: 23.10 /Üb erschriften/Üb erschriften 2/A-E/ Einstellung d er Entlastungsfe dern @ 0\m od_1196666659 447_78.doc @ 1 0133
9.2 Adjusting the Compensation Springs
Pos: 23.11 /BA/Ei nstellungen/M ähwerke/EasyC ut/Bodendruc k/Bodendruc k allgemeiner Text alle EC @ 0\mod_1196667 271181_78.d oc @ 10190
The ground pressure for the cutter bar is adjusted to local conditions by means of the
compensation springs. In order to protect the sward the load on the mowing spar must be
relieved so that it does not jump when mowing, yet does not leave any skid marks on the
ground.
Pos: 23.12 /BA/Ei nstellungen/M ähwerke/EasyC ut/Bodendruc k/Bodendruc k einstellen Bild EC 28/32 @ 10\mod_122173 8032880_78.doc @ 136927

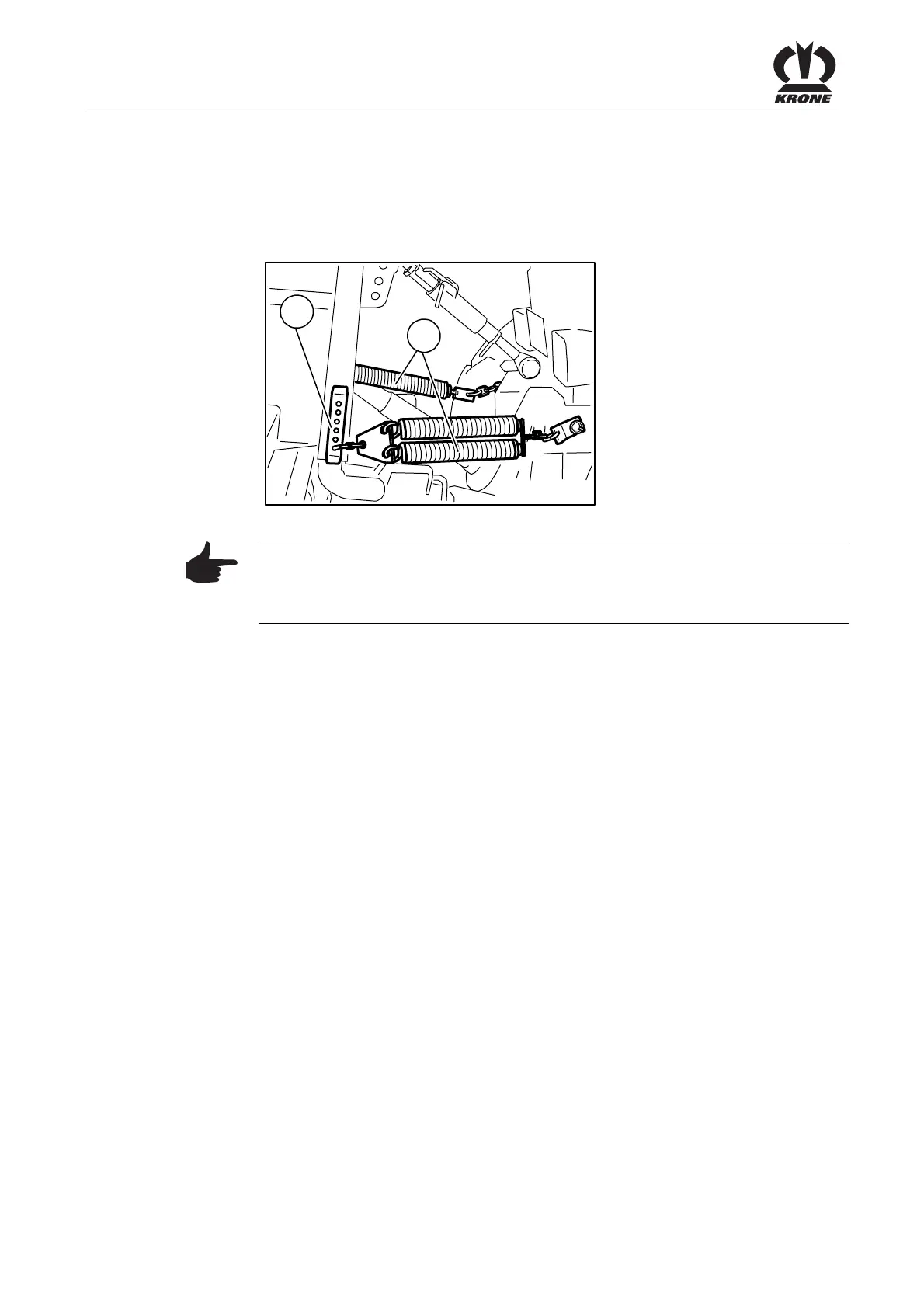

EC-145-1
1
2
Fig. 18:
Pos: 23.13 /BA/Ei nstellungen/M ähwerke/EasyC ut/Bodendruc k/Bodendruc k einstellen Te xt EC 28/32 28/ 32CV @ 10\mo d_122173784 1223_78.doc @ 136908
Note
Retaining chain shorter= reduced ground pressure
Retaining chain longer= increased ground pressure
If a telescope upper suspension arm is being used (optional)
The higher the compensation springs (1) are hooked into the perforated bar (2), the lower the
pressure on the ground in the front part of the cutter bar.
If the compensation springs are hooked in too high, the mowing unit will tip towards the
rear.
or:
The lower the compensation springs (1) are hooked into the perforated bar (2), the greater the
pressure on the ground in the front part of the cutter bar.
If the compensation springs are hooked in too low, the mowing unit will have too much
weight on the ground in front.
