14.3 Conversion for mowing steep slopes (EasyCut 28 M, EasyCut 32 M)
EC-254-1
1
2
3
3
4
4
5
5
6
6
EasyCut 28M
EasyCut32M

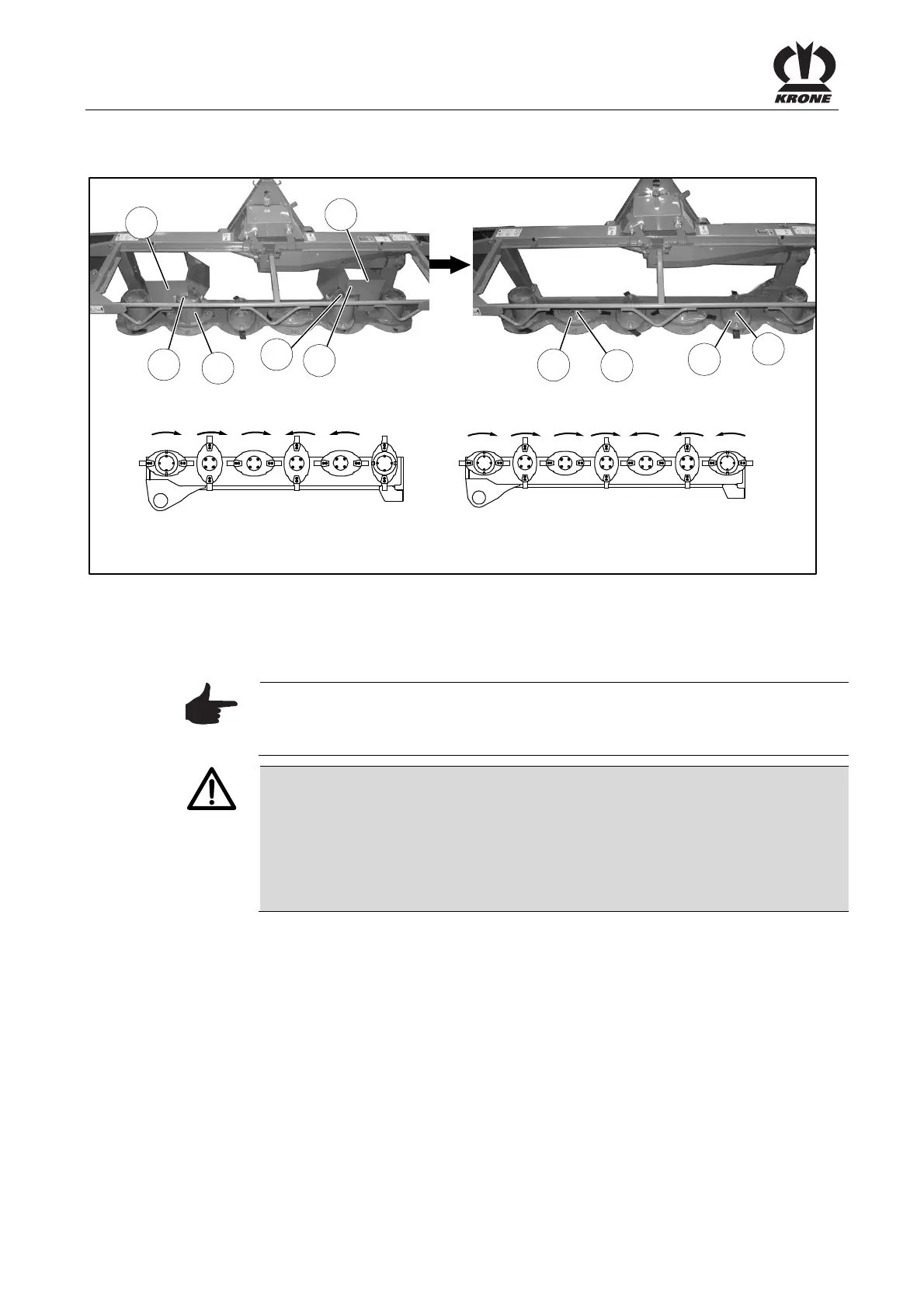

Fig. 41:
• Remove plates (1,2)
• Remove cover (3) of mower drum (4).
• Remove mower drum (4).
Note
Keep the plates (1,2), cover (3) and mower drums (4) in a protected place for
later reinstallation.
Warning
Cutting disc installed incorrectly
Effect: Damage to the machine
Make certain the cutter discs are installed correctly! The installed cutting
discs (5) must be installed at a 90-degree offset to the adjacent mower drums
/ cutting discs.
