Operation
39
Pos: 21.14 /BA/B edienung /E asyCut/Weiste-D reieck/Abbau W eiste-Dreiec k Bild EC 28/32 @ 10\mod_12 21736766364_7 8.doc @ 1367 52
AFA-0-010
4
3
2
1
EC-0-020

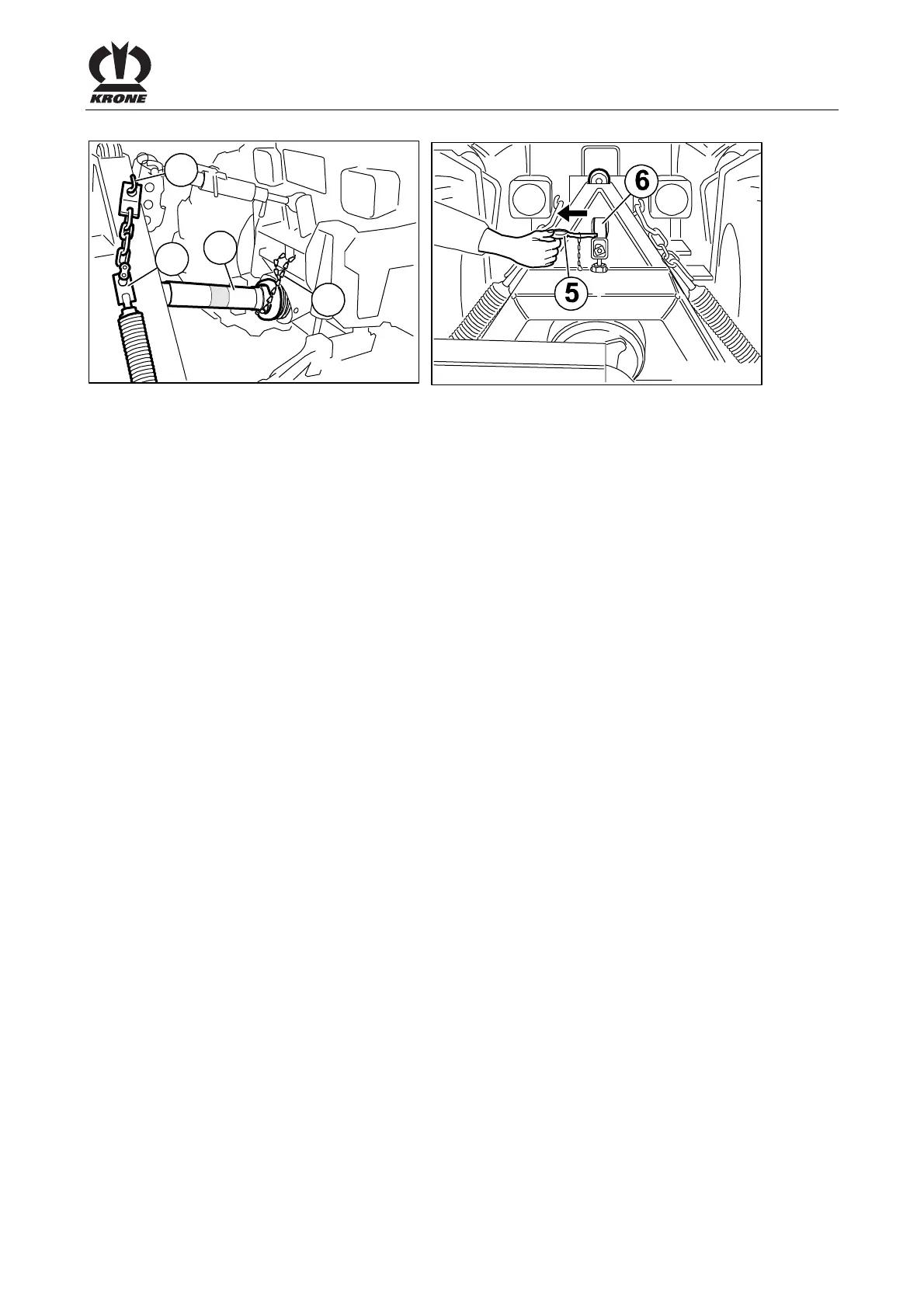

Fig. 16:
Pos: 21.15 /BA/B edienung /E asyCut/Weiste-D reieck/Abbau W eiste-Dreiec k Text EC 28/32 2 8/32CV @ 1 0\mod_1221736 705176_78. doc @ 136733
• Bring the front mowing unit into the transport position.
• Remove compensation spring (2) and hang it on hook (1).
• Lower front-mounted disc mower.
• Pull spring cotter pin (5) out of the Weiste triangle.
• Release the interlock of the holding triangle.
• Loosen the guard cloth.
• Remove the retaining chain (4) of the PTO shaft (3).
• Remove the PTO shaft (3) from the tractor side and place on the PTO shaft bracket
• Carefully lower the front hydraulics.
• Drive carefully out of the holder of the front-mounted disc mower.
