SUPERSTRUCTURE OPERATION
Operating instructions • Semitrailer • 505369471-04 • 02/2019
97
KRONE trailers can be equipped with sev-
eral pairs of one of the following sliding
post types:
○ One-part fold-out posts (see "6.2.10.1
One-part fold-out posts", pg.97)
○ Telescopic fold-out posts (see "6.2.10.2
Telescopic fold-out posts", pg.98)
○ Double-deck posts (see "6.2.11.1 Moving
and locking double-deck posts", pg.101)
Preparing to move the centre posts
► Open the curtain.
► Remove any tension chains between
the centre posts and the board walls.
► Fold down the board walls (see "6.2.9
Lateral load compartment limiter", pg.94).
► Remove the plug-in laths(see "6.2.9 Lat-
eral load compartment limiter", pg.94).
ü The centre posts are prepared for
shifting.
Top bearings of sliding posts
The sliding posts are mounted on rollers
that run in the continuous external beams
of the roof frame.

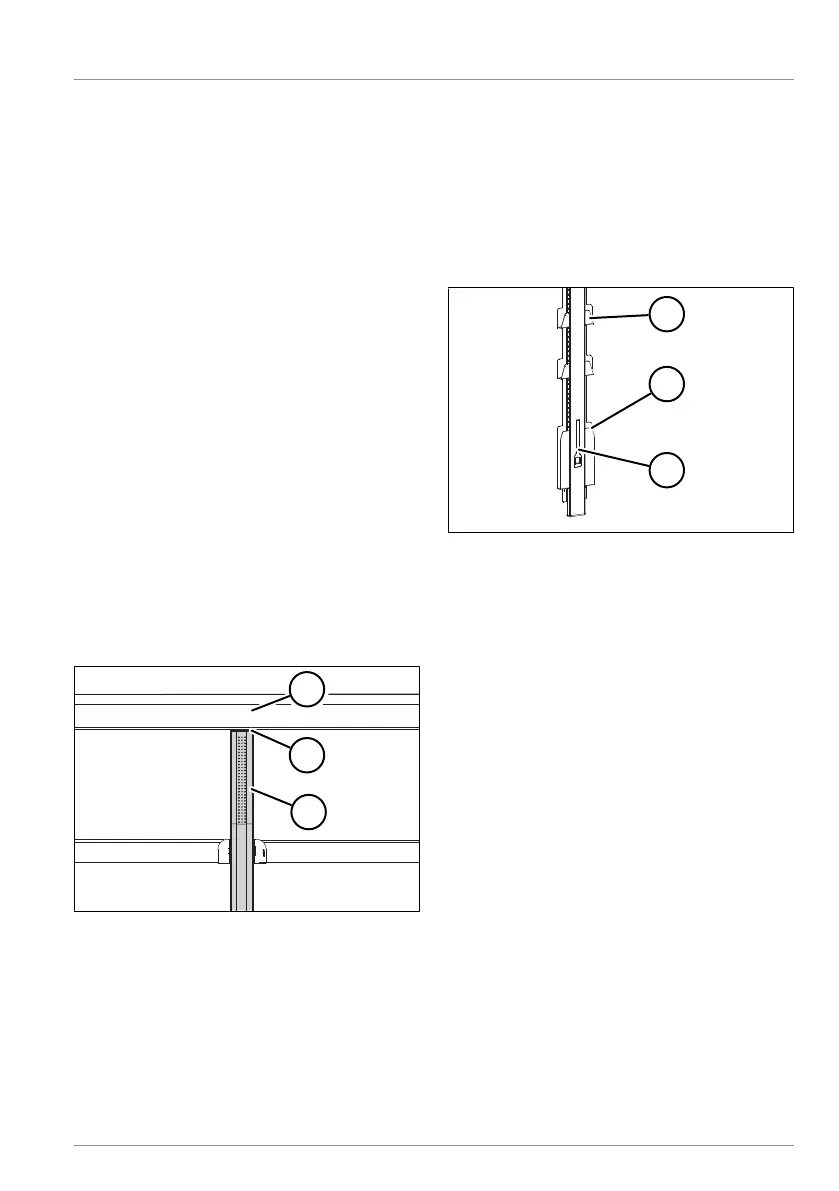

Fig.6-61: Bearings of sliding posts
1 External beam
2 Bogie truck with rollers
3 Sliding post
6.2.10.1 One-part fold-out posts
KRONE trailers with sliding curtain super-
structures are equipped with one-part fold-
out posts.
Depending on their design, one-part fold-
out posts have
○ several sets of lath sockets for plug-in
laths, and
○ one set of lath sockets above the floor,
each for four plug-in laths.
Posts without lath sockets are also pos-
sible.
Fig.6-62: One-part centre post
1 Flat lath sockets
2 Lath depot
3 Locking lever
Moving and locking one-part fold-out
posts
þ The centre posts are prepared for slid-
ing (see "6.2.10 Centre posts", pg.96).
► Pull out the locking lever and com-
pletely fold up.
