16 ENGINE 104
S00098-11

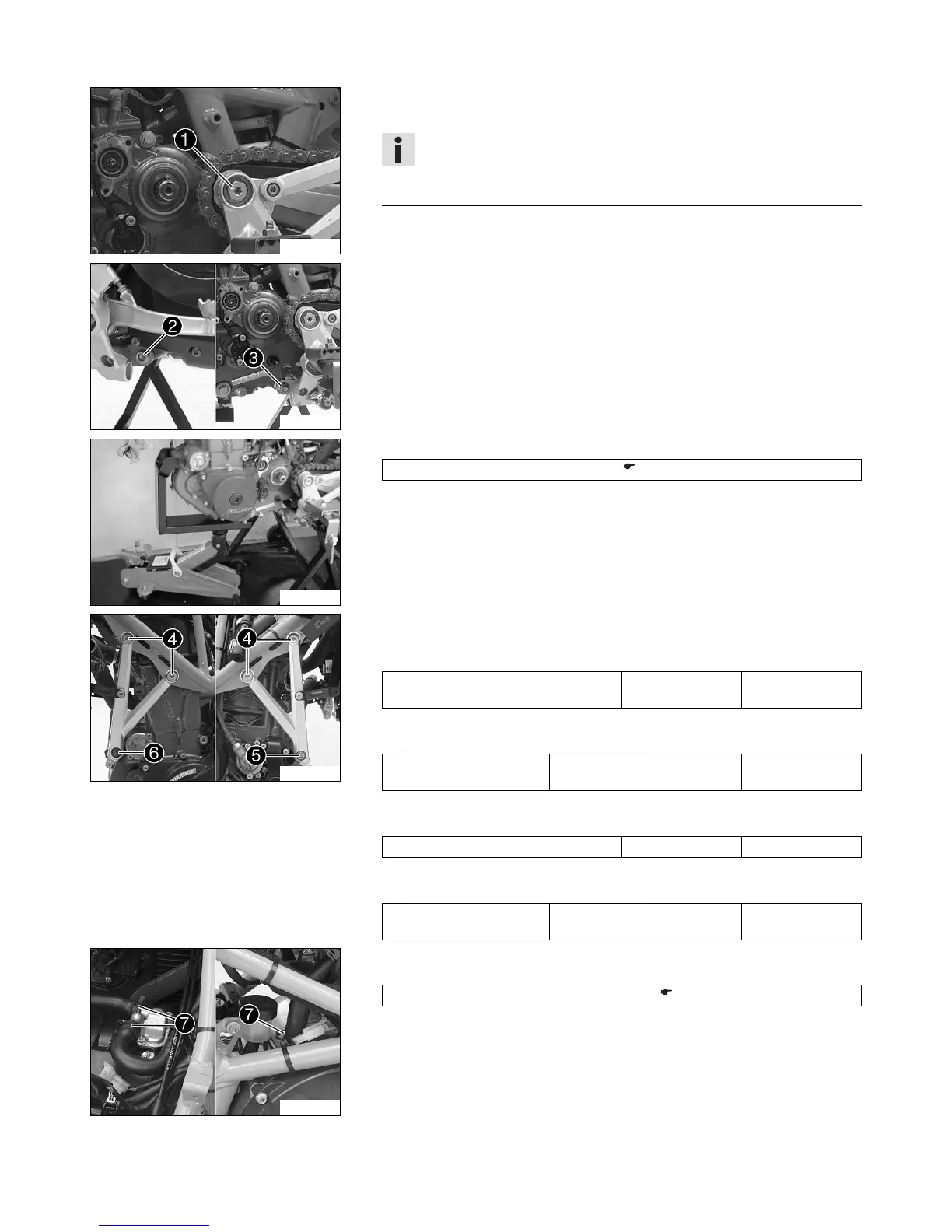

Main work
– Position the engine in the frame.
Info
You should have an assistant for this step.
Make sure that the motorcycle is sufficiently secured against falling over.
Protect the frame and attachments from damage.
– Mount swingarm pivot.
– Mount the screw 1 of the swingarm pivot but do not tighten yet.
S00099-11
– Install the screw 2 and nut 3 of the lower engine bracket, but do not tighten them
yet.
300222-10
– Remove the floor jack with the special tool.
Floor jack attachment (75029055000) ( p. 217)
S00097-11
– Position the engine bearer.
– Mount and tighten screws 4.
Guideline
Screw, engine bearer on frame M10 45 Nm
(33.2 lbf ft)
– Mount and tighten screw 5 with nut 6.
Guideline
Engine carrying screw M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
– Tighten the swingarm pivot.
Guideline
Screw, swingarm pivot M12 80 Nm (59 lbf ft)
– Tighten the lower engine bracket.
Guideline
Engine carrying screw M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
S00096-11
– Position the hoses of the engine breather, the SLS and the oil return line. Mount
the spring band clamps 7 using the special tool.
Pliers for spring band clamp (60029057100) ( p. 213)
