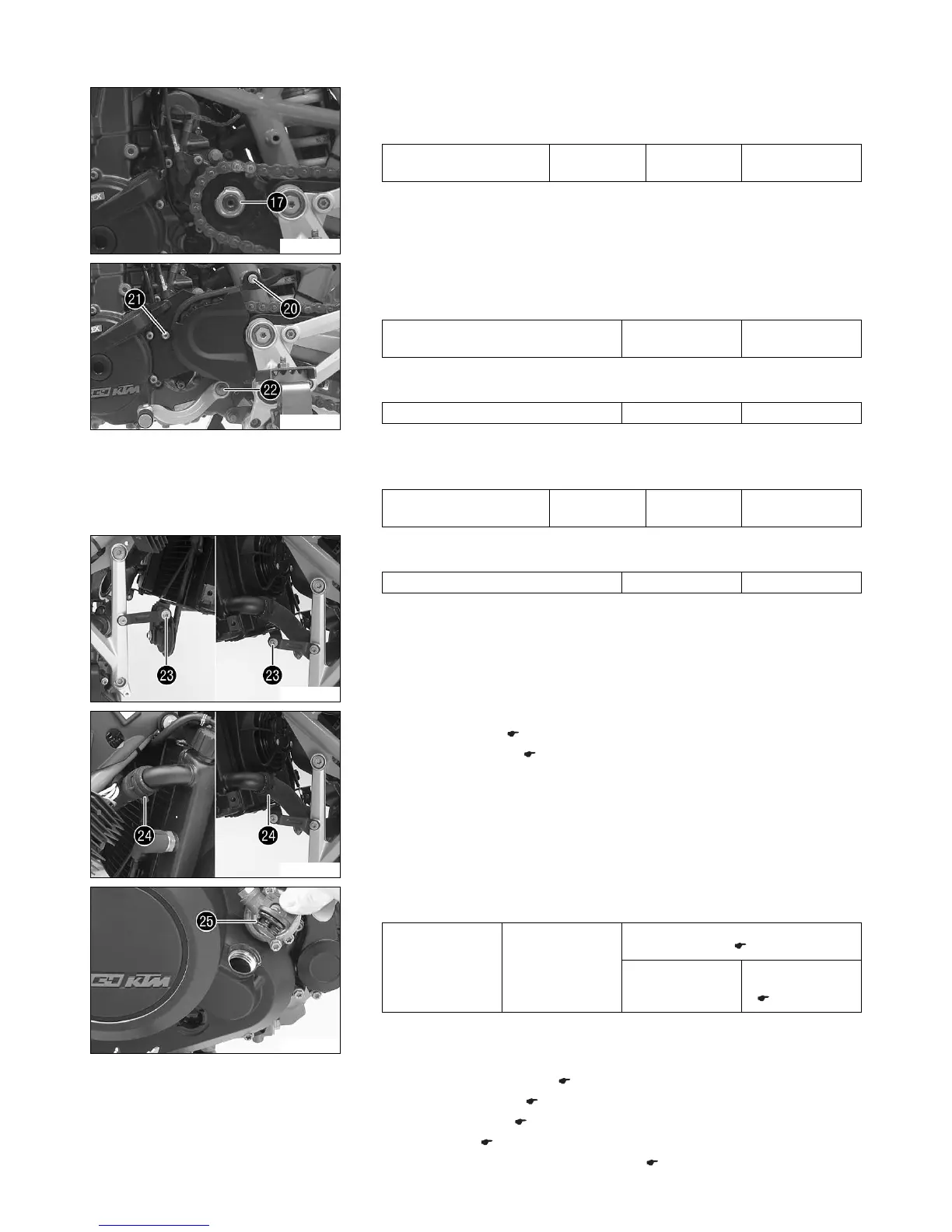

16 ENGINE 106
S00089-12
– Have an assistant operate the rear brake.
– Tighten nut br.
Guideline
Nut, engine sprocket M20x1.5 80 Nm
(59 lbf ft)
Loctite
®
243™
– Secure the nut with lock washer.
S00088-11
– Position the engine sprocket cover.
– Mount and tighten screw ck.
Guideline
Remaining screws, chassis M8 25 Nm
(18.4 lbf ft)
– Mount and tighten screw cl.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the shift lever.
– Mount and tighten screw cm.
Guideline
Screw, shift lever M6 14 Nm
(10.3 lbf ft)
Loctite
®
243™
S00087-11
– Mount and tighten screws cn.
Guideline
Screw, upper radiator bracket M6 10 Nm (7.4 lbf ft)
S00086-11
– Position the radiator hoses. Install the spring band clamps co.
– Install the manifold. ( p. 52)
– Disconnect the battery. ( p. 80)
S00100-10
– Remove the oil filler plug cp with the O-ring from the clutch cover and fill up with
engine oil.
Engine oil 1.70 l (1.8 qt.) Engine oil (SAE 10W/60)
(00062010035) ( p. 206)
Alternative engine
oil
Engine oil
(SAE 10W/50)
( p. 206)
– Install and tighten the oil filler plug with O-ring.
Finishing work
– Fill/bleed the cooling system. ( p. 162)
– Install the air filter box. ( p. 57)
– Mount the side cover. ( p. 60)
– Mount the seat. ( p. 60)
– Remove the motorcycle from the work stand. ( p. 12)
